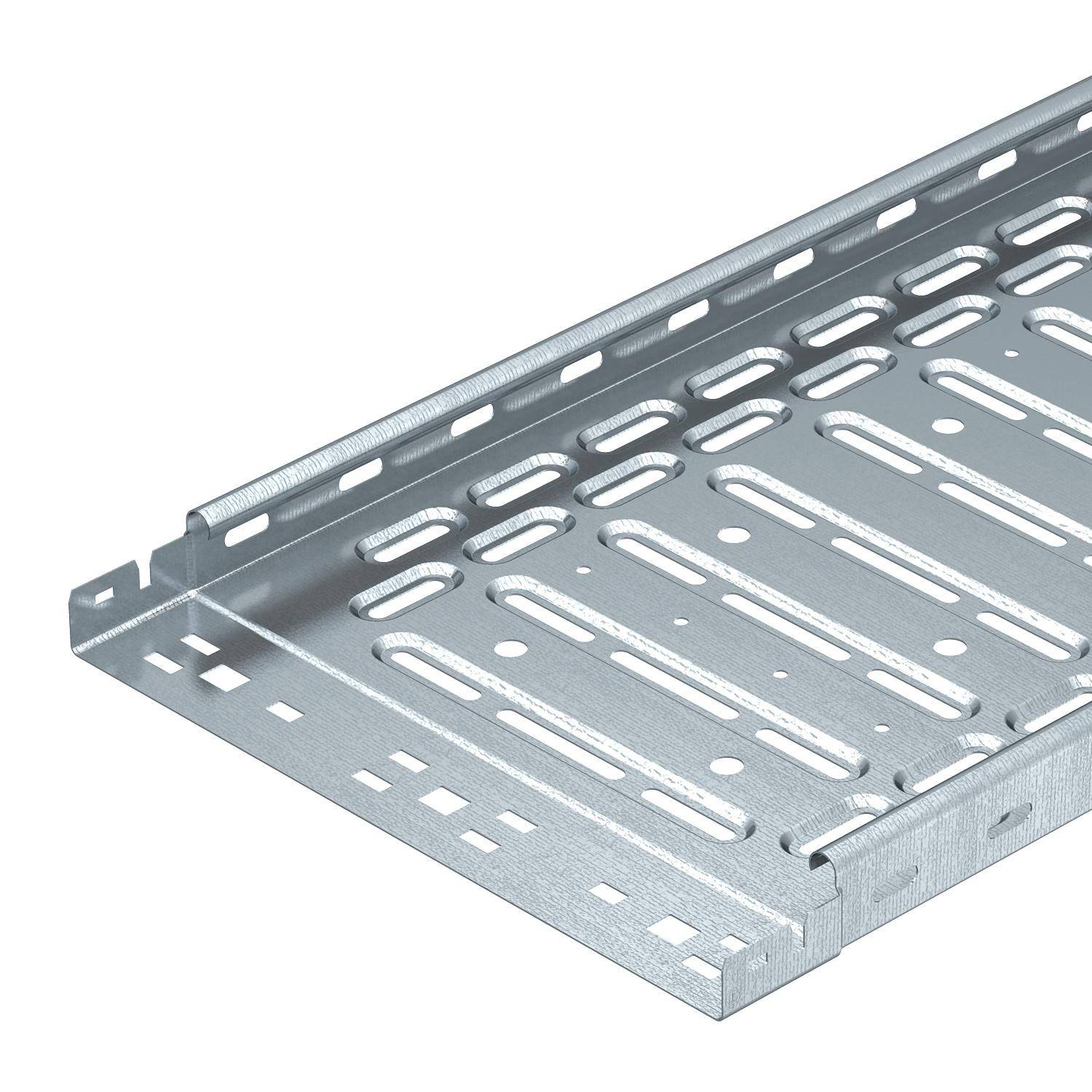

OBO Bettermann 6047433 Cable duct (L x W x H) 3 m x 200.00 mm x 35.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Height: 35 mm
- Width 200 mm
- Material thickness 0.75 mm.
- Length: 3050 mm
- Usable cross-section: 6800 mm²
- With top: No.
- Side holes: Yes
- Mounting holes in the ground: Yes
- NATO hole pattern: No.
- Built: Built-in connector
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Stainless steel, stained: No.
- Material quality: Other
- Surface protection: Zinc-plated strip
- Weighs 1.56 kg/m.
- Load test type according to IEC 61537: Type II.
- Product type
Cable duct
- Type
Integrated connector
- Content
3 m
- Dim
(L x W x H) 3 m x 200.00 mm x 35.00 mm
- Length
3 m
- Width
200.00 mm
- Height
35.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406836 OBO Bettermann 6047433 Cable duct (L x W x H) 3 m x 200.00 mm x 35.00 mm 3 m
Description
Cable channel with integrated quick mounting system. The useful length of the cable duct is 3,000 mm.
The cable channel has a continuous side punching of 7 x 20 mm for installation of additional connection and assembly components.
The hole for the direct threaded rod suspension has a diameter of 11 mm.
This text is machine translated.
The cable channel has a continuous side punching of 7 x 20 mm for installation of additional connection and assembly components.
The hole for the direct threaded rod suspension has a diameter of 11 mm.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable channel
