OBO Bettermann 6065714 Connector piece 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Design = Long Connector
- Joint connector horizontal = No
- Joint connector vertical = No
- Connection type = Screw-less connector
- Suitable for grid gutter = No
- Suitable for cable wire = No
- Suitable for cable channel = Yes
- Suitable for cable support system width = 200. .200 mm
- Suitable for cable support system height = 60 mm
- Length = 135 mm
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = galvanized zinc aluminum
- Product type
Connector piece
- Component
Connector piece
- Supplied length
135 mm
- Content
1 pc(s)
- Factory colour
Metal
- Dim

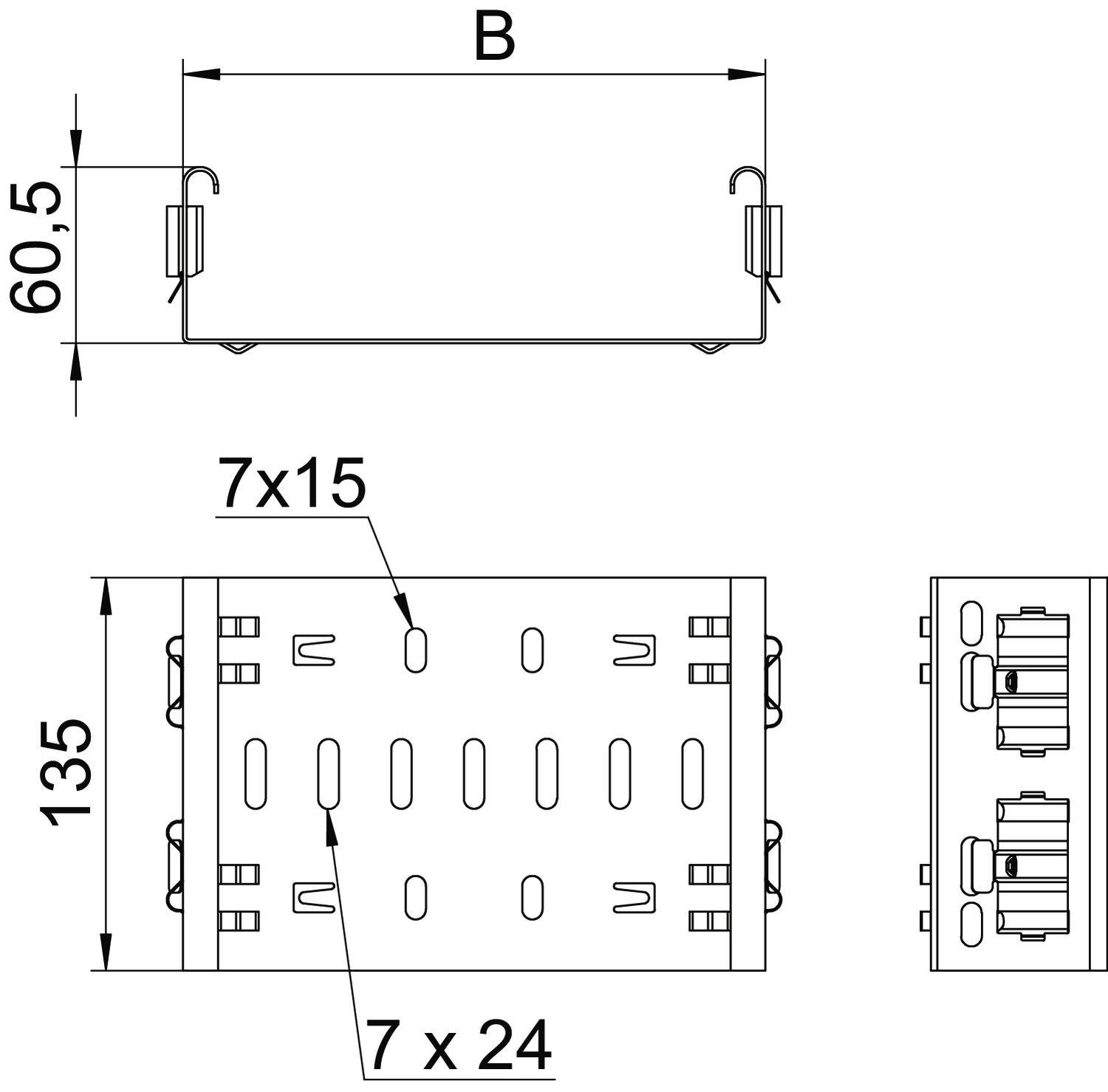

(L x W x H) 135 x 200 x 60 mm
- Length
135 mm
- Width
200 mm
- Height
60 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963429 OBO Bettermann 6065714 Connector piece 1 pc(s) Metal
Description

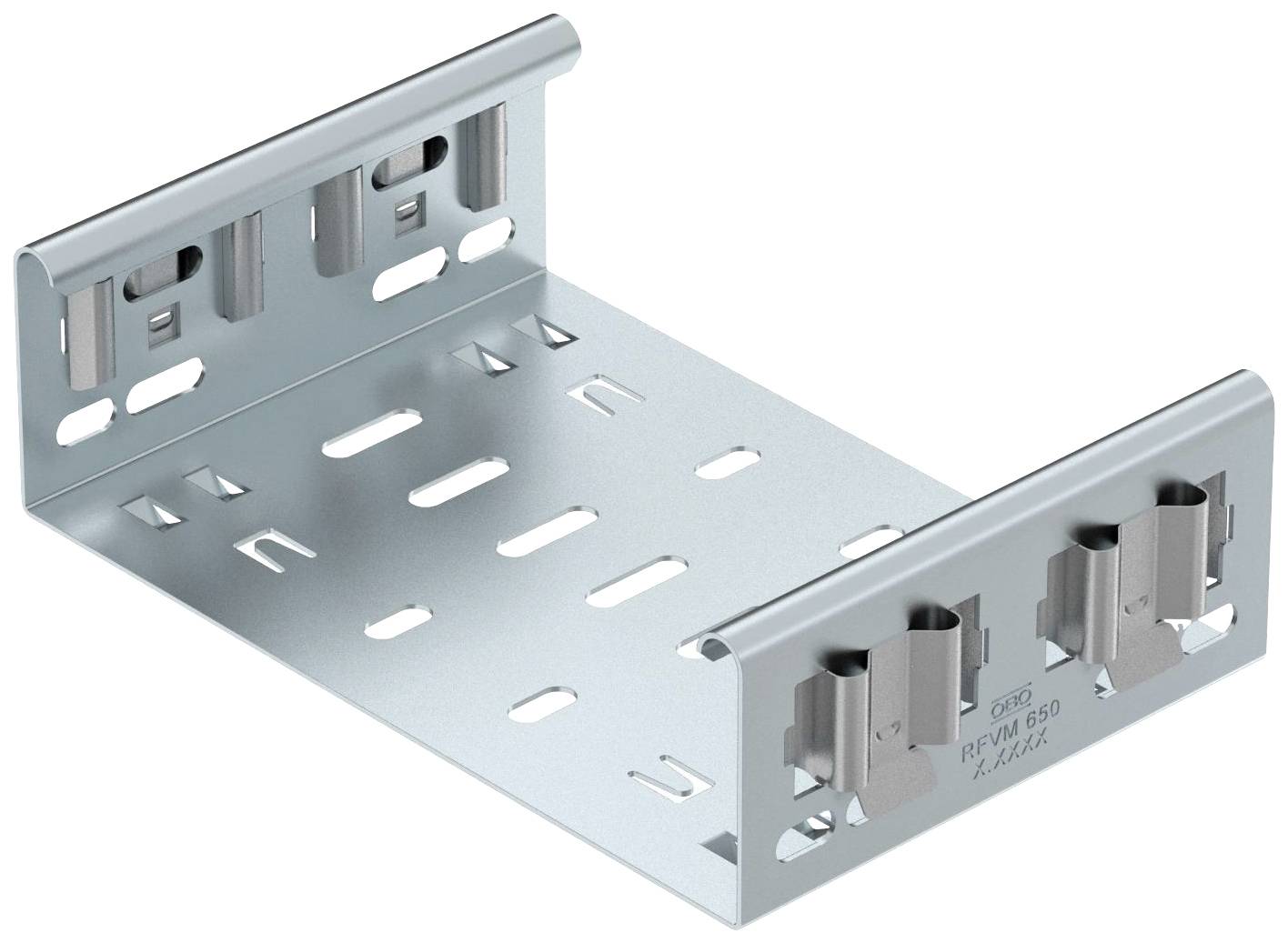

Molded part connector magic for direct and screw-less connection of magic form parts with the page height 60 mm. The molded part connector is equipped with four clips and can be in the unilateral placement of only two clips can also be used for direct connection with a cut cable channel. For connecting a cable channel with a molded part is then cut a Langsverbinder-Set Magic is needed.
