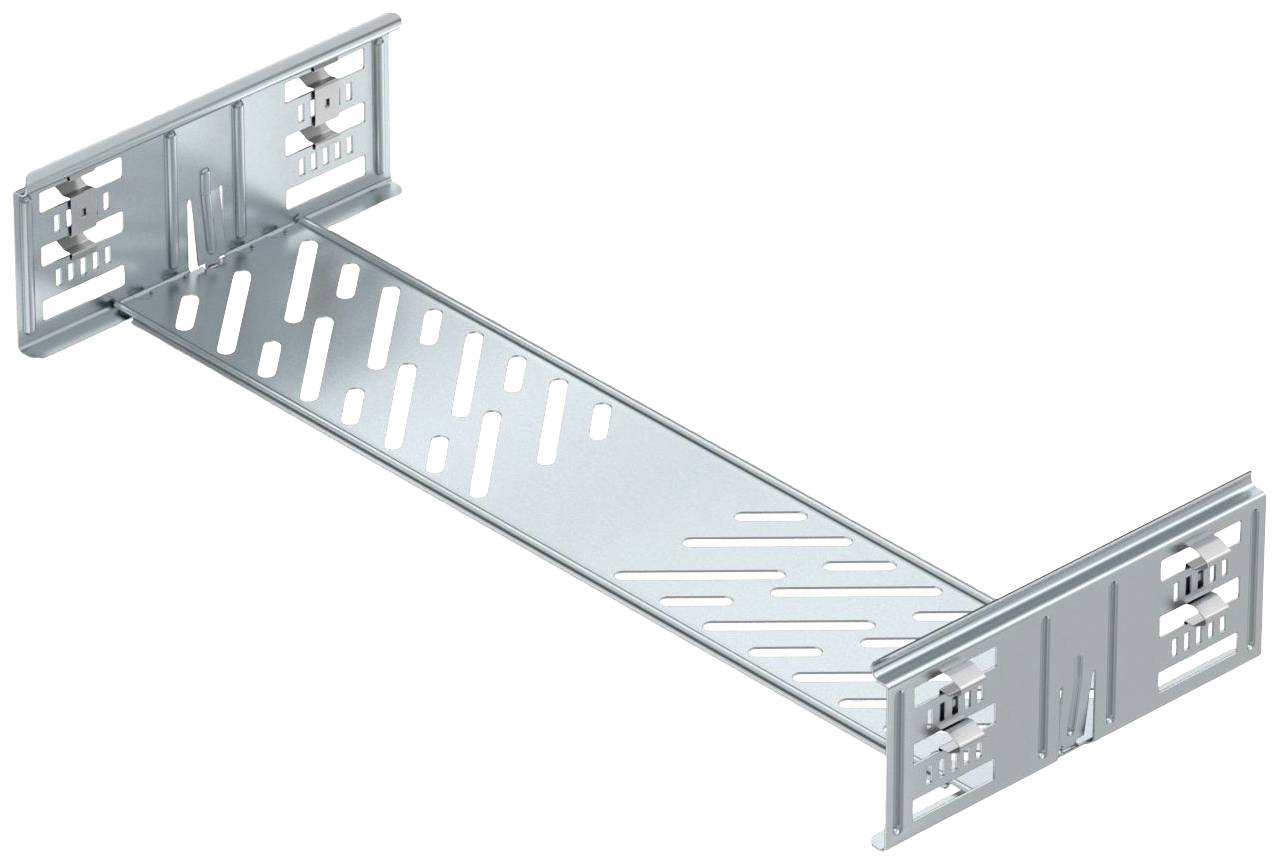

OBO Bettermann 6069012 Connector piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = Long Connector
- Joint connector horizontal = No
- Joint connector vertical = No
- Connection type = Screw-less connector
- Suitable for grid gutter = No
- Suitable for cable wire = No
- Suitable for cable channel = Yes
- Suitable for cable support system: 1060/500 mm width=500.
- Length = 200 mm
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Surface = galvanised
- Product type
Connector piece
- Component
Connector element
- Supplied length
200 mm
- Content
1 pc(s)

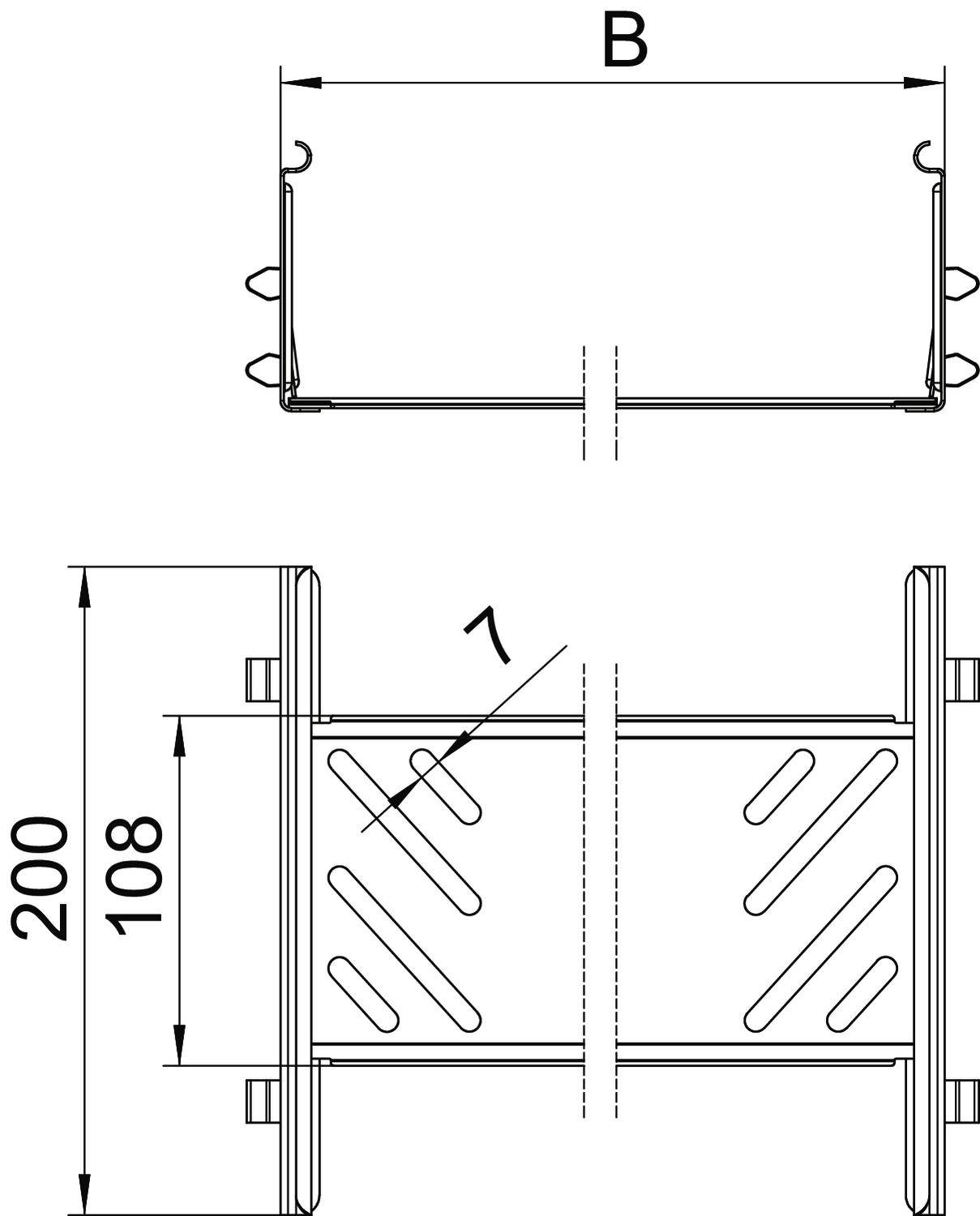

- Dim
(L x W x H) 200 x 500 x 85 mm
- Length
200 mm
- Width
500 mm
- Height
85 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963585 OBO Bettermann 6069012 Connector piece 1 pc(s)
Description
Cable connector with quick mounting for the gutter screwless connection of cable channels and molded parts with the page height 85 mm.
