OBO Bettermann 6098316 Bend 1 pc(s)

A grey metallic cable trunking arc segment, slightly curved for cable routing in high-load situations.

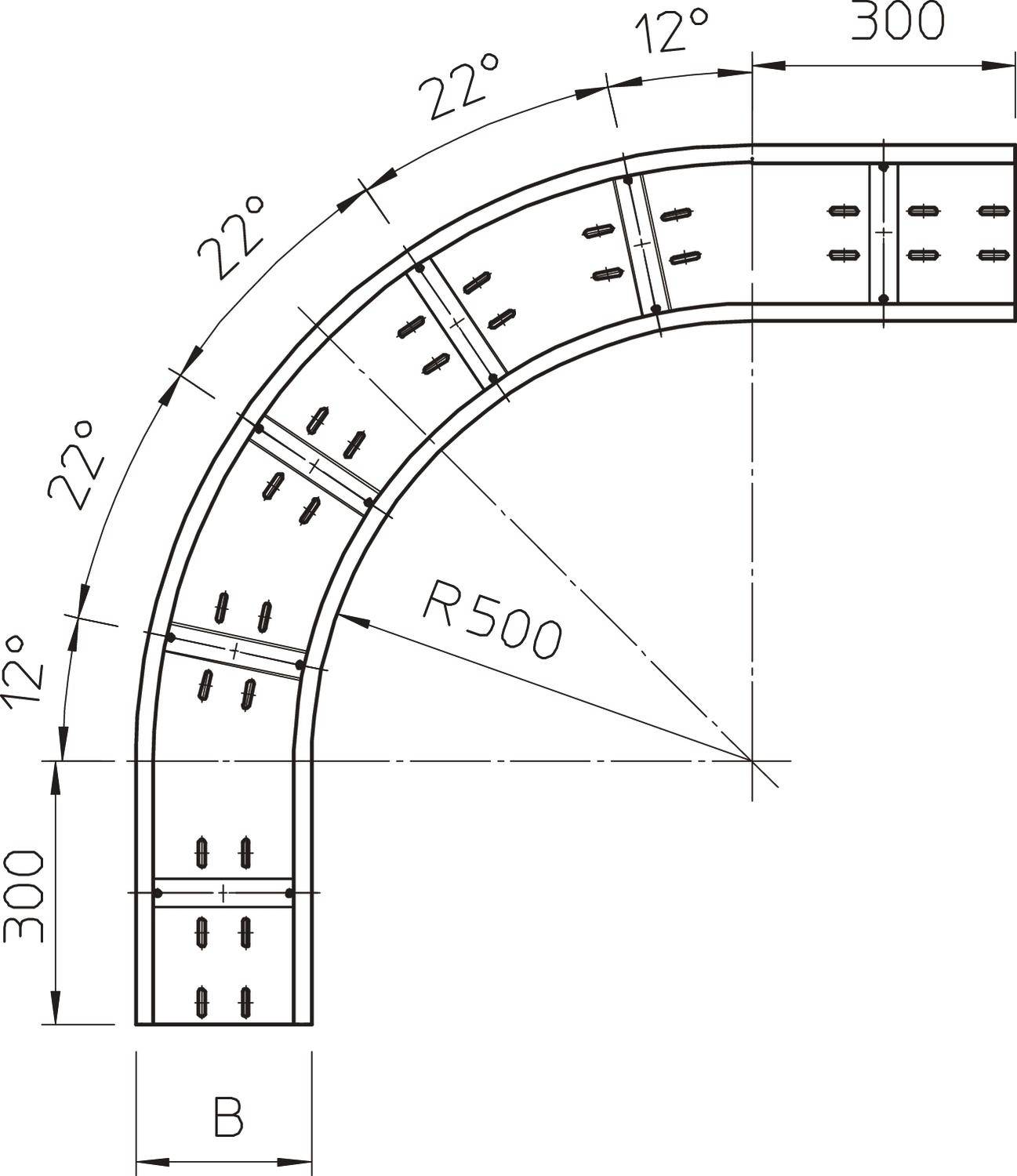

Technical drawing of a curve with a radius of 500 mm. Angles of 22° and 12°, as well as width 'B' and height of 300 mm are specified.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

OBO Bettermann Vertr Arc 90° 110x500mm WRB 150 FS

Our service for you

Technical specifications

  • Turn (angle): 90°
  • Inner radius 500 mm
  • Cable gutter width 500 mm
  • Cable gutter height 110 mm
  • Material thickness 2 mm.
  • Mounting hole in the floor: Yes
  • Surface: Galvanized
  • Direction change: Horizontal
  • Side holes: no.
  • Wide-span design: Yes
  • Material: Steel
Product type

Bend

Type

Without connectors

Content

1 pc(s)

Dim

(W x H) 500 mm x 110 mm

Width

500 mm

Height

110 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2296623 OBO Bettermann 6098316 Bend 1 pc(s)

Description

Molded part arc 90° for wide-tension cable channel, side height 110mm.
