OBO Bettermann 6098356 Bend 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Turn (angle): 90°
- Inner radius 500 mm
- Cable gutter width 500 mm
- Cable gutter height 110 mm
- Material thickness 2 mm.
- Mounting hole in the floor: Yes
- Surface: Hot dip galvanized
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: Yes
- Material: Steel
- Product type
Bend
- Type
Without connectors
- Content
1 pc(s)
- Dim
(W x H) 500 mm x 110 mm
- Width
500 mm
- Height
110 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294652 OBO Bettermann 6098356 Bend 1 pc(s)
Description

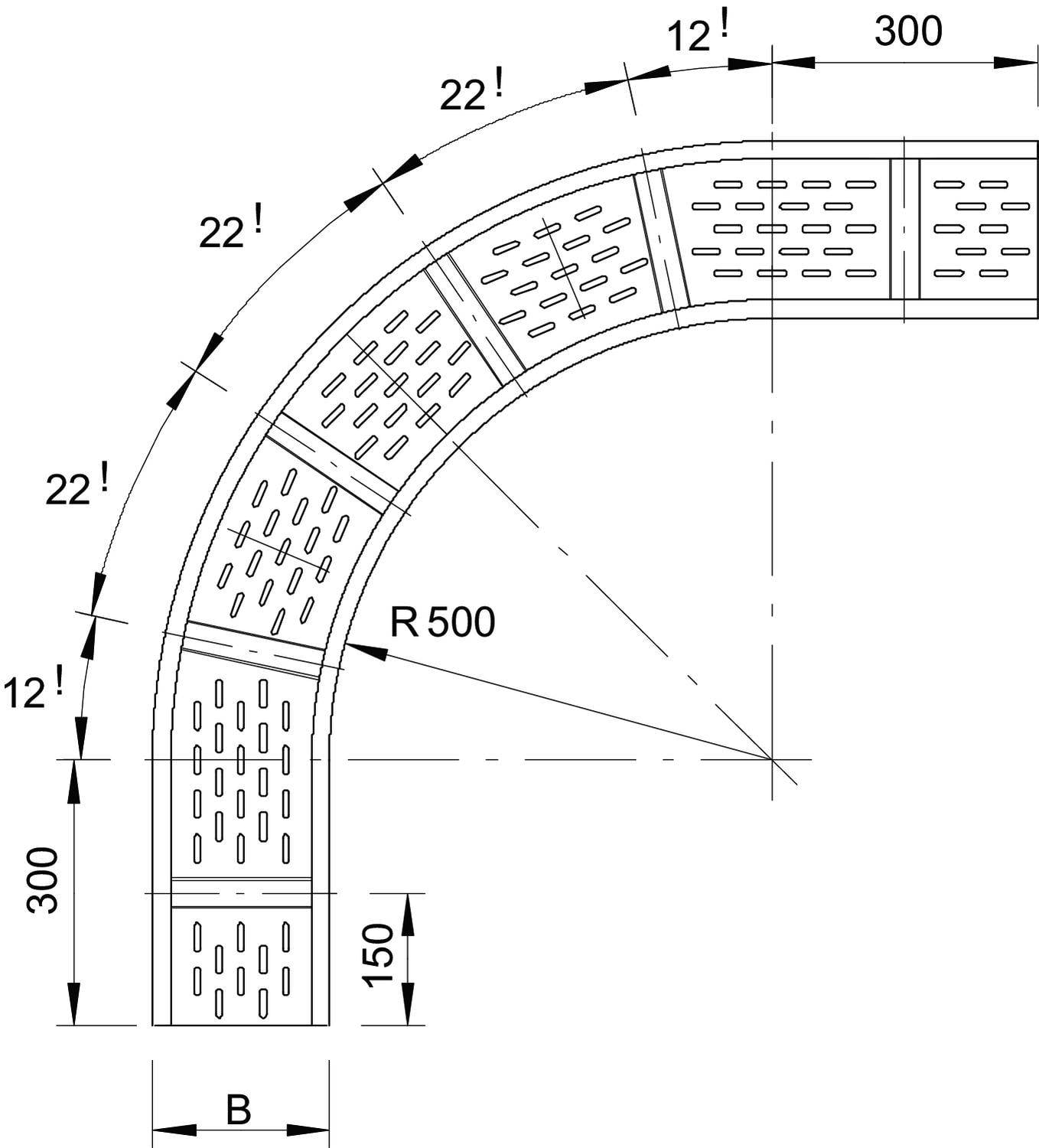

Molded part arc 90° horizontal for all wide-span cable channels with the side height 110 mm.
