OBO Bettermann 6098719 Bend 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

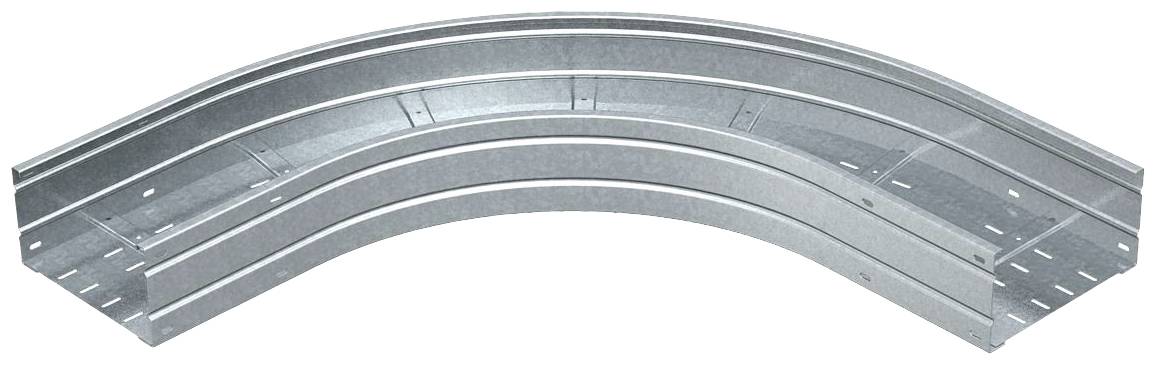

OBO Bettermann Vertr Arc 90° 160x600mm WRB 166 FS
Our service for you
Technical specifications

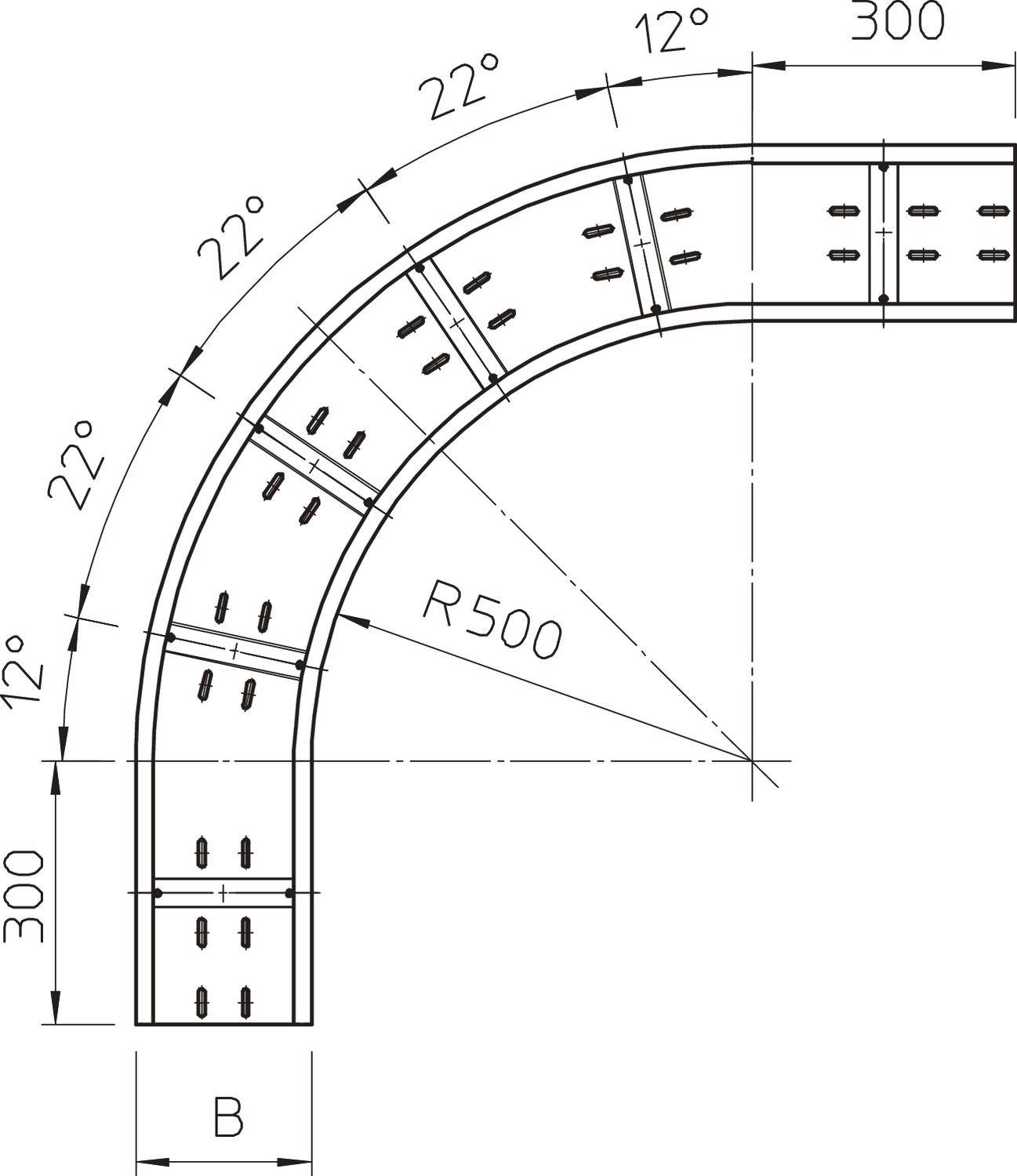

- Turn (angle): 90°
- Inner radius 500 mm
- Cable gutter width 600 mm
- Cable gutter height 160 mm
- Material thickness 2 mm.
- Mounting hole in the floor: Yes
- Surface: Galvanized
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: Yes
- Material: Steel
- Product type
Bend
- Type
Without connectors
- Content
1 pc(s)
- Dim
(W x H) 600 mm x 160 mm
- Width
600 mm
- Height
160 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296619 OBO Bettermann 6098719 Bend 1 pc(s)
Description
Molded part arc 90° horizontal for all wide-span cable channels with the side height 160 mm.
