OBO Bettermann 6098860 Mounting bracket 1 pc(s) Metal

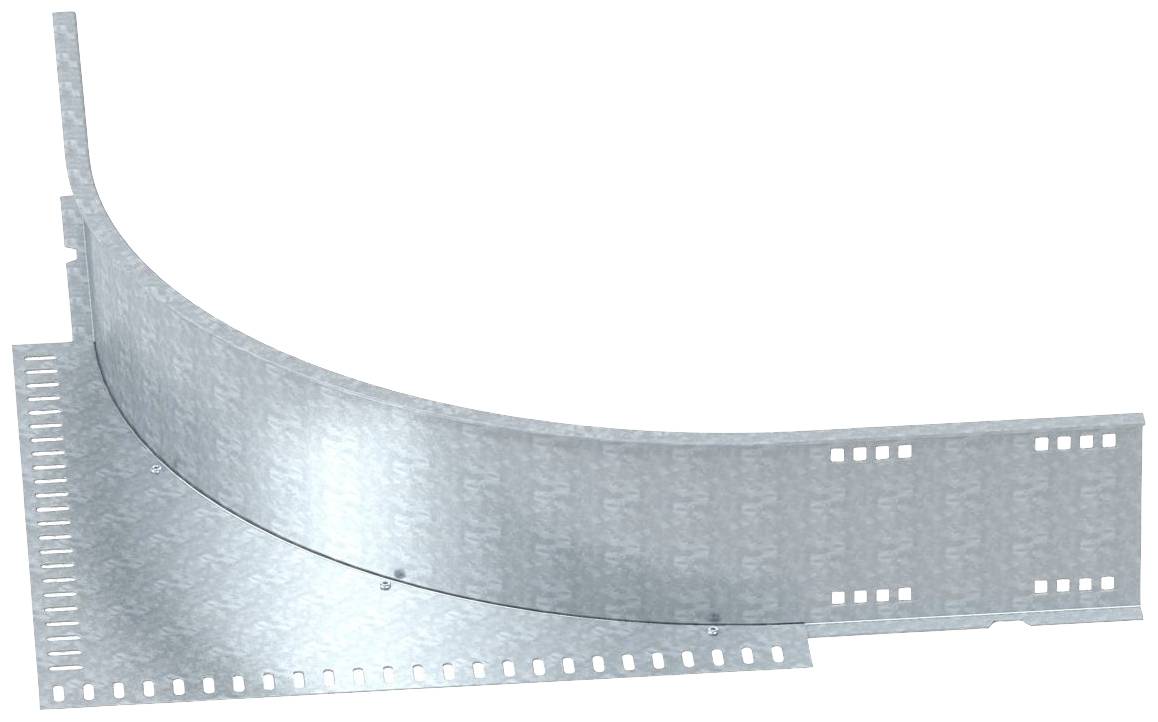

Metallic cable trunking curved section, light grey and bent, used for guiding cables in a cable management system.

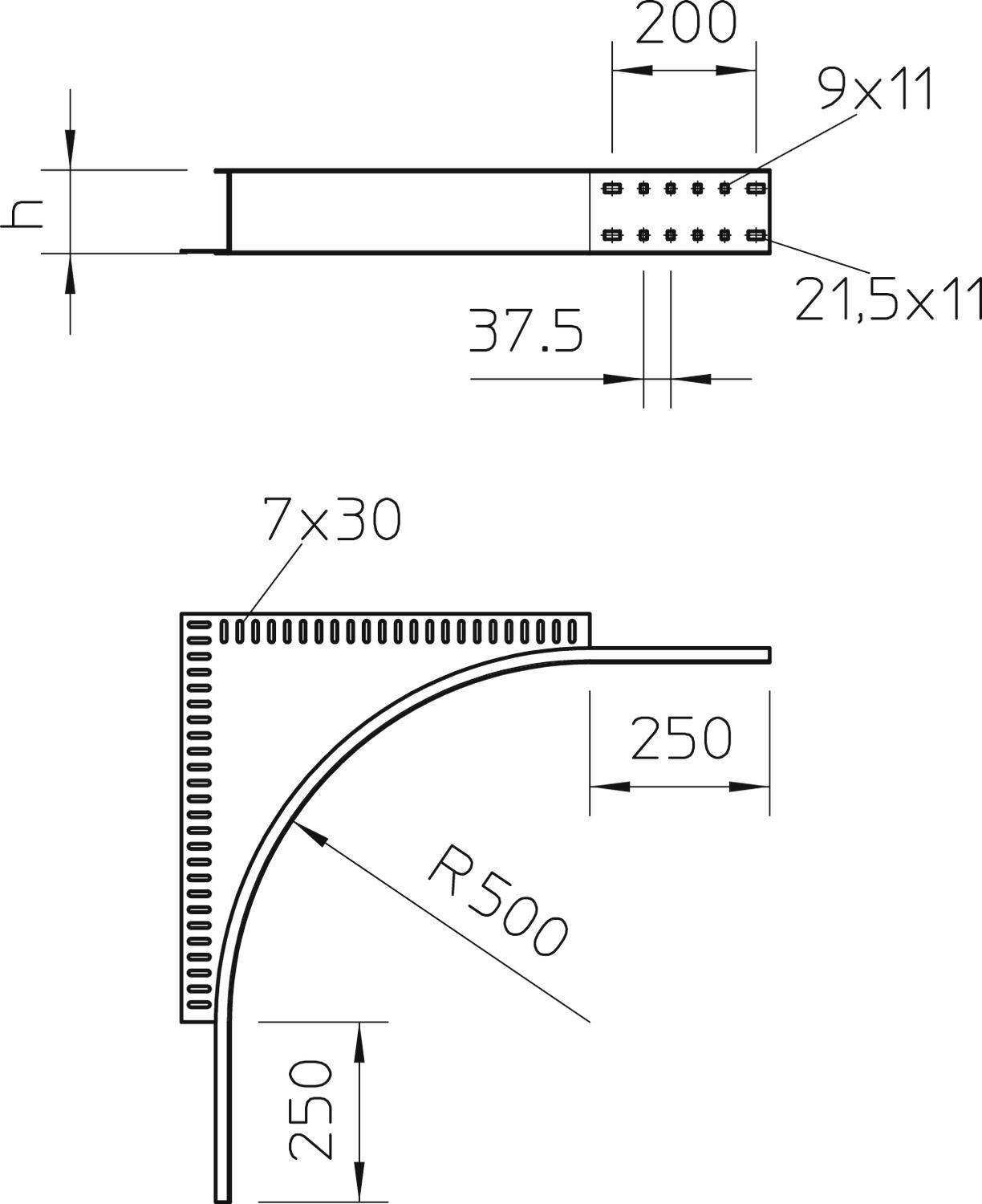

Technical drawing of a curved metal strip. Dimensions: 200x250 mm, radius 500 mm. Side and front view with drill holes.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Change the direction = horizontal
  • Turn (angle) = 90°
  • Inner radius=500mm
  • Cable channels height = 160 mm
  • Side holes = No
  • Mounting holes in the Ground = No
  • Design = integrated connector
  • Wide clamping design = Yes
  • Suitable for function receives = No
  • Material = Steel
  • Stainless steel
  • Stained = No
  • Material good = other
  • Surface = galvanised
Product type

Mounting bracket

Component

Connector element

Content

1 pc(s)

Factory colour

Metal

Height

160 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1956821 OBO Bettermann 6098860 Mounting bracket 1 pc(s) Metal

Description

Corner joint for wide clamping cable channels and conductors with the page height 160 mm.
