OBO Bettermann 6098864 Mounting bracket 1 pc(s) Metal

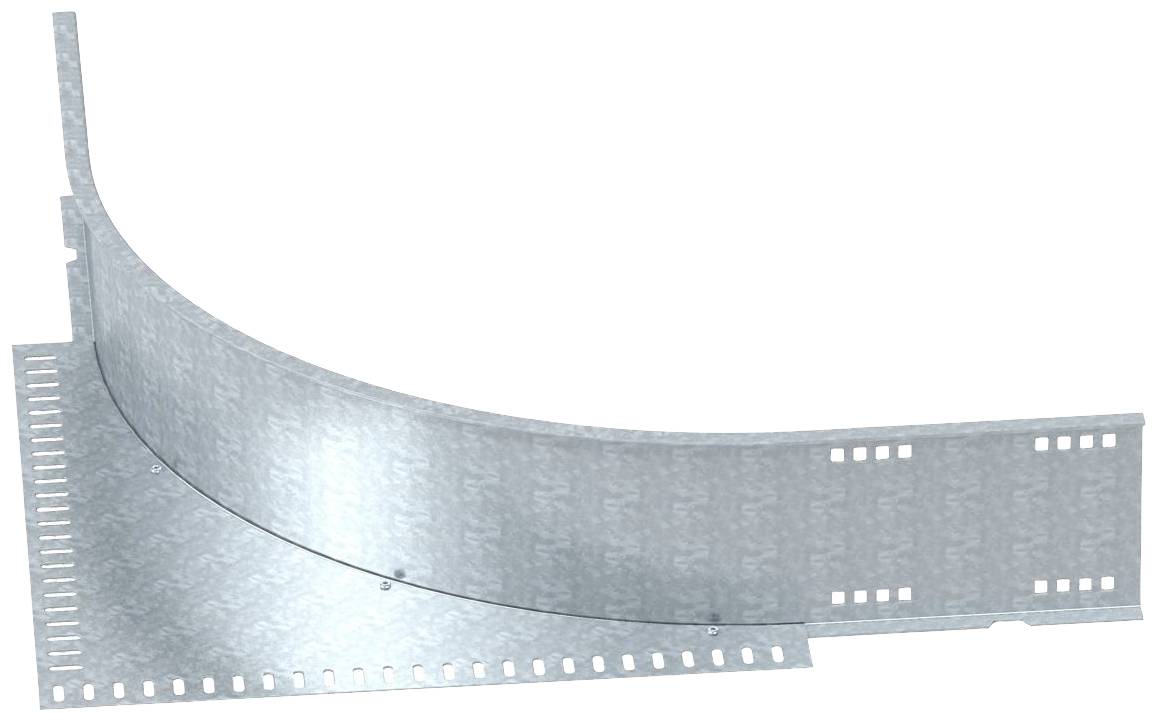

Curved metal piece, likely part of a cable support system, with rectangular holes along the edges for fastenings.

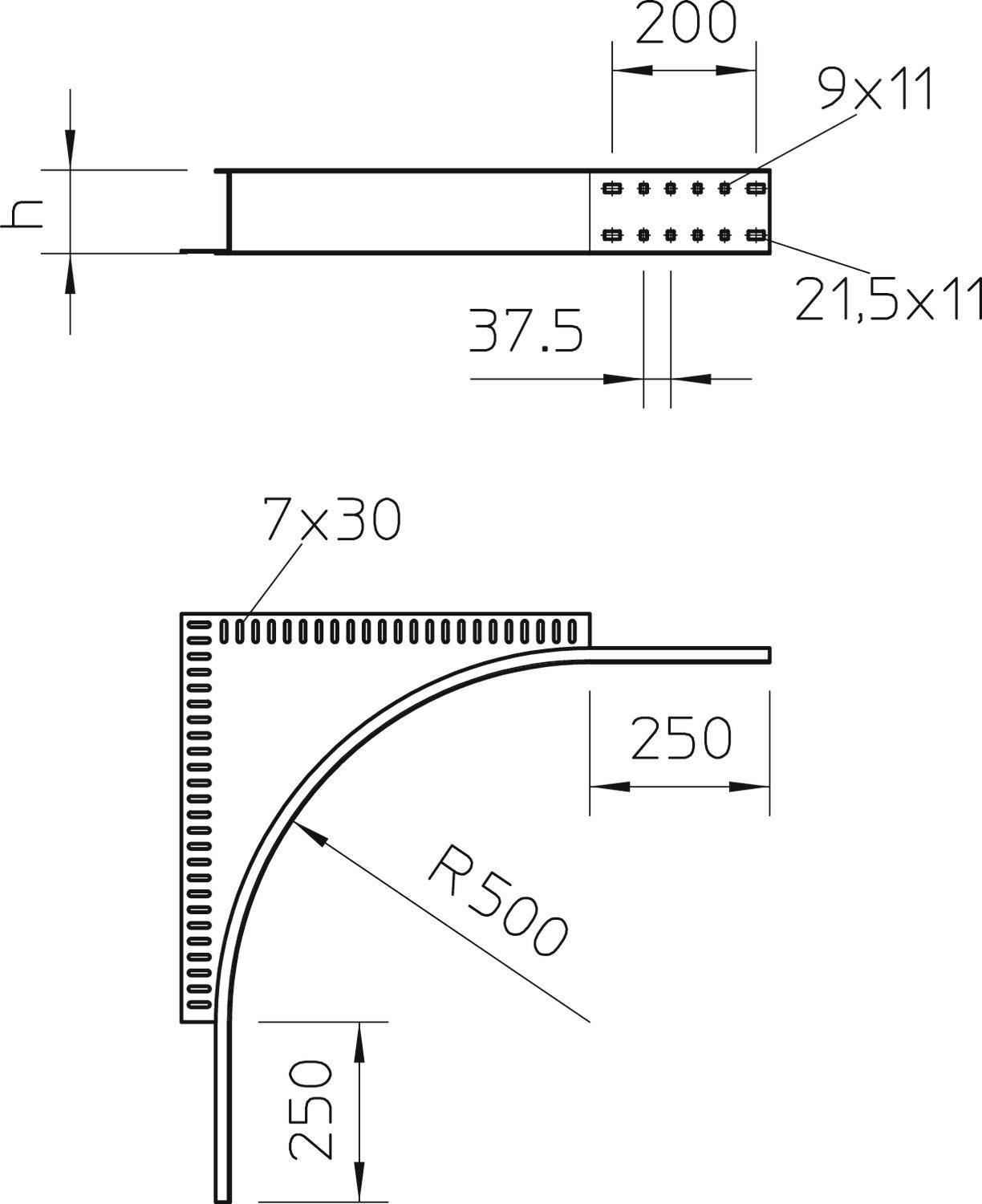

Technical drawing of a metal strut with dimensional specifications. Top: Length 200, Width 9x11, Height 21.5x11. Bottom: Bend R500, Angle 250x250, Reinforcements 7x30.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Change the direction = horizontal
  • Turn (angle) = 90°
  • Inner radius=500mm
  • Cable channels height = 160 mm
  • Side holes = No
  • Mounting holes in the Ground = No
  • Design = integrated connector
  • Wide clamping design = Yes
  • Suitable for function receives = No
  • Material = Steel
  • Stainless steel
  • Stained = No
  • Material good = other
  • Surface = diving hot-dip galvanised
Product type

Mounting bracket

Component

Connector element

Content

1 pc(s)

Factory colour

Metal

Height

160 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1958176 OBO Bettermann 6098864 Mounting bracket 1 pc(s) Metal

Description

Corner joint for wide clamping cable channels and conductors with the page height 160 mm.
