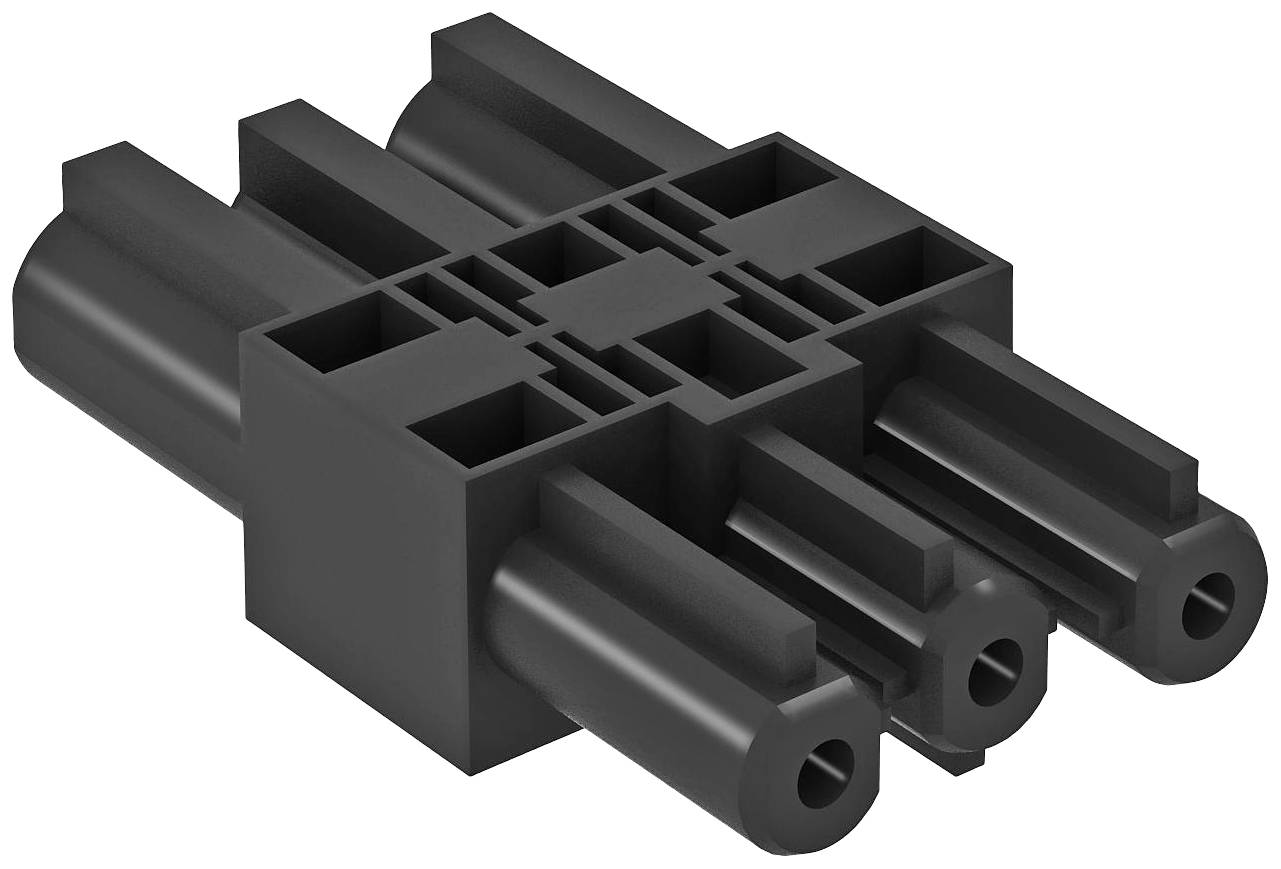

OBO Bettermann 6108045 Adapter Black
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 3
- Number of inputs: 1
- Number of outputs: 1
- Mechanical coding: yes
- Color of the coding/contact insert: black
- Color of the separate adapter piece: without adapter piece
- Material of the housing: polyamide (PA)
- Length: 49.5 mm
- Height: 13 mm
- Width: 28 mm
- Type of the distributor: Intermediate coupler
- Product type
Adapter
- Connector version
straight
- Nominal voltage
250 V
- Nominal current
16 A
- Factory colour
Black
- Connection
In-line connector
- Mounting type
Recess-mount
- Number of pins
3
- Series
GST18i
- Height
13 mm
- Length
49.5 mm
- Width
28 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965928 OBO Bettermann 6108045 Adapter Black
Description
Connection adapter GST 18i for the grouping of sockets STD-D0C/STD-D3C or STD-F0C/STD-F3C in conjunction with straight connection adapters, plug-in connection with integrated strain relief. Suitable for device connections in Rapid 45 equipment fitting duct systems and Rapid 80 and in installation columns ISS.
