OBO Bettermann 6117197 Plug adapter White
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 3
- Degree of protection (IP) IP40
- Design: Plug
- Installation version: mounting adapter/plug connection
- Angle of inclination: 0., 2.0°
- Threaded connection dimensions: no thread connection
- Number of connections each pole: 1
- Mechanical coding: yes
- Color of the coding/contact insert: white
- Color of the separate adapter piece: white
- Type of locking: without
- Material of the housing: polyamide (PA)

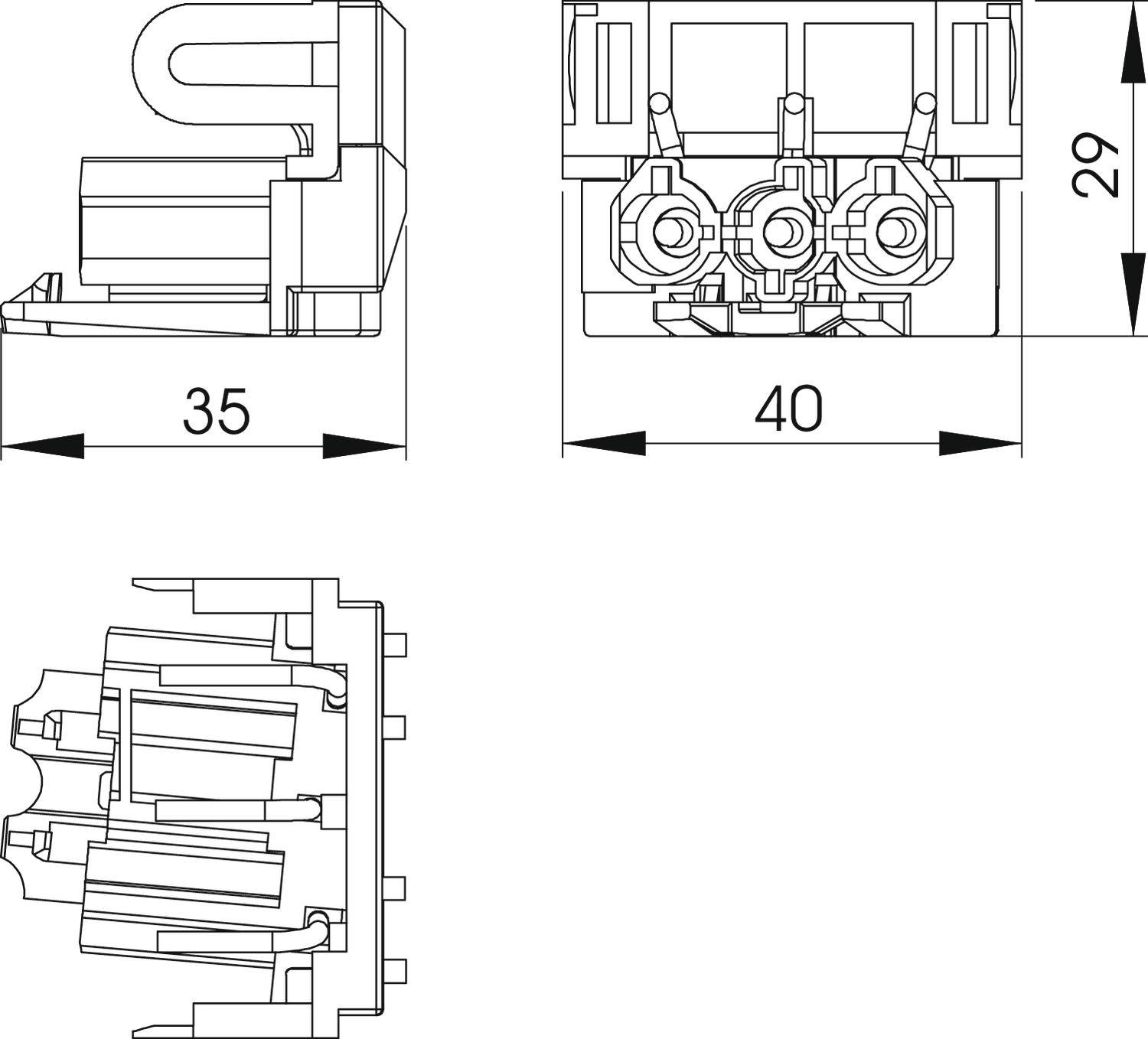

- Length: 35 mm
- Height: 29 mm
- Width 40 mm
- Product type
Plug adapter
- Connector version
straight
- Nominal voltage
250 V
- Nominal current
16 A
- Factory colour
White
- Number of pins
3
IP40
- Height
29 mm
- Length
35 mm
- Width
40 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955899 OBO Bettermann 6117197 Plug adapter White
Description
Plug adapter, U-shaped, for connection to a socket SKS-DS or SKS-FS from the side, for extension cable VL with Wieland connector part GST 18i3p
