OBO Bettermann 6117422 Fasteners (W x H x D) 45 x 45 x 26 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of Units = 1
- Mounting direction = horizontally and vertically
- Number of modules horizontal (with modular design) = 0
- Number of modules vertically (with modular design) = 0
- Suitable for underfloor channel box = No
- Suitable for device installation duct = Yes
- Text field/labelling area = Yes
- Material = Plastic
- Material good = other
- Halogen-free = Yes
- Surface = untreated
- Design the surface = matt
- Color = Aluminum
- Transparent = No
- With hinged lid = No
- Mounting type = clamp fixing
- Width = 45 mm
- Height = 45 mm
- Depth = 26 mm
- Installation width = 45 mm
- Installation height = 45 mm
- Product type
Fasteners
- Content
1 pc(s)
- Dim

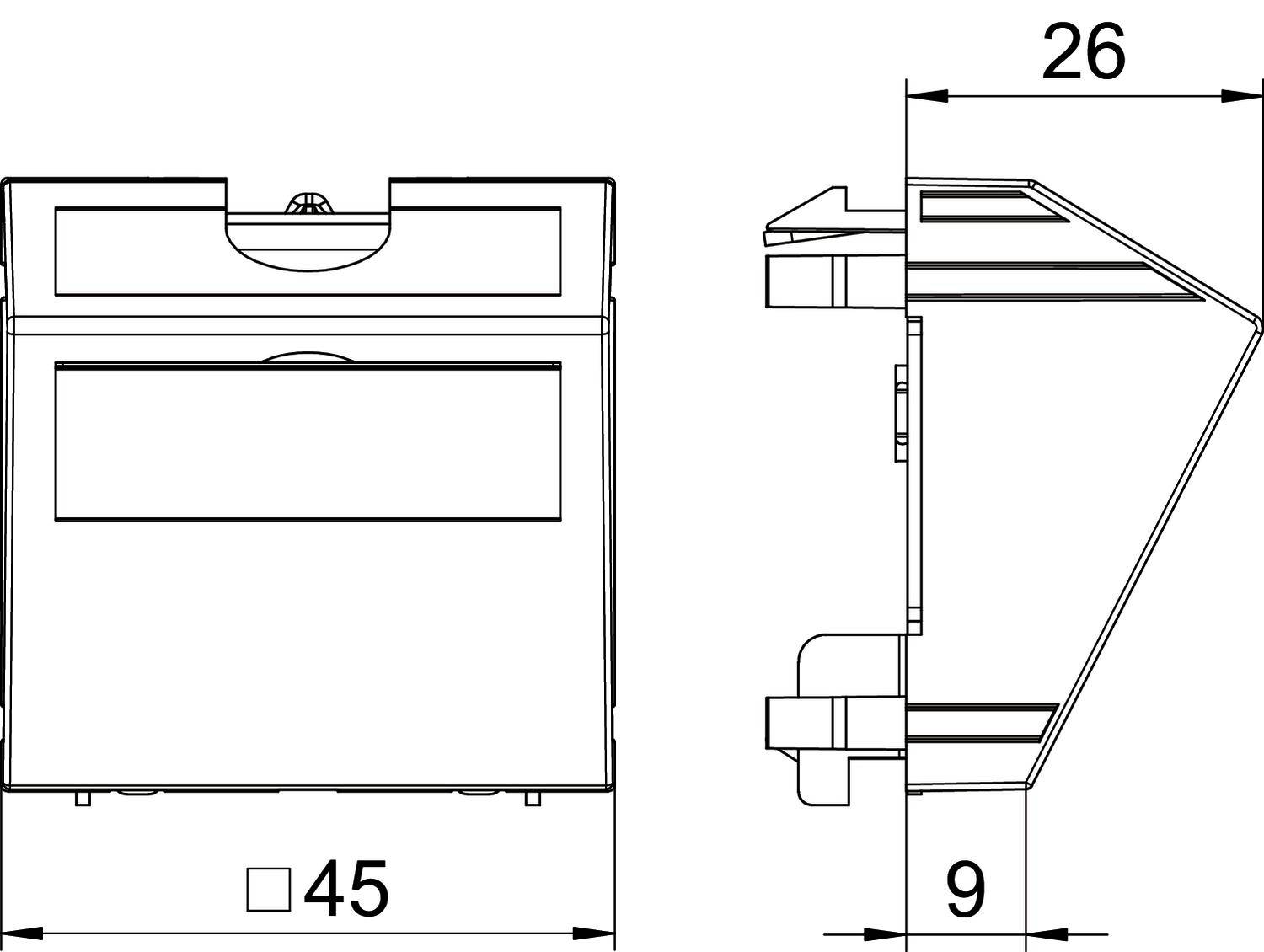

(W x H x D) 45 x 45 x 26 mm
- Width
45 mm
- Height
45 mm
- Depth
26 mm
- Recess width
45 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959250 OBO Bettermann 6117422 Fasteners (W x H x D) 45 x 45 x 26 mm 1 pc(s)
Description

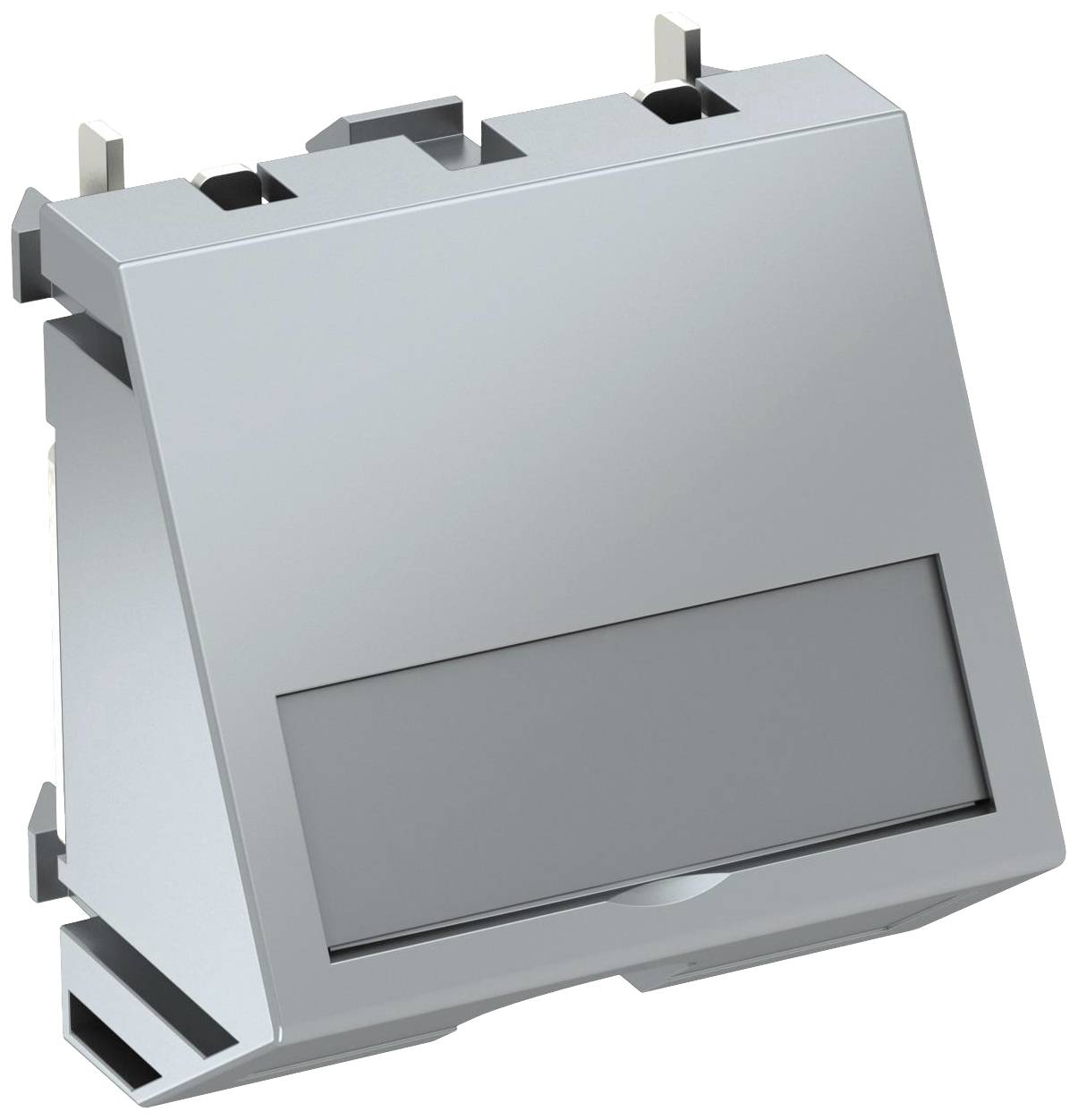

2-piece cable outlet with labelling field, consisting of a cable carrier with strain relief and a cover. The strain relief for cable diameter of 3-11 mm. The snap is suitable for the horizontal and vertical installation in Rapid 45 equipment fitting duct system and installation columns ISS with a 45 mm system opening.
