OBO Bettermann 6117465 ÜSS 45-A-RW Surge protection device 2.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Installation type: Other
- Nominal surge current (8/20) (L-N): 2.5 kA
- Number of pins: 2
- With remote signalling contact: no
- Signaling on the device: acoustically and visually
- Test class type 3: yes
- With noise filter: no
- Product type
Surge protection device
- Leakage current
2.5 kA
- Nominal voltage
230 V AC
- Operating temperature
-25 to +45 °C
- Manufacturer part #
6117465
- Dim

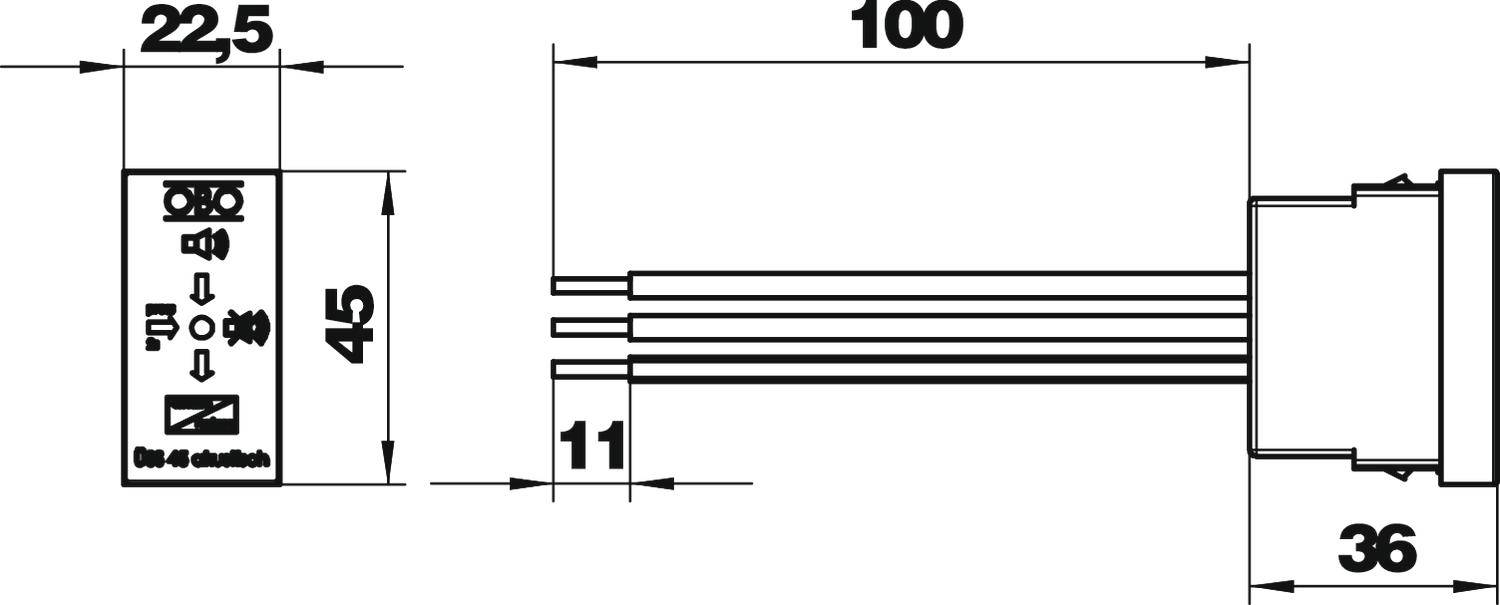

(W x H x D) 22.5 x 45 x 36 mm
- Width
22.5 mm
- Height
45 mm
- Depth
36 mm
- Content
1 pc(s)
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957192 OBO Bettermann 6117465 ÜSS 45-A-RW Surge protection device 2.5 kA 1 pc(s)
Description
Surge protection device type 3 (Class D) according to VDE0675 Part 6 - 11 (DIN EN 61643), width 22.5 mm.
