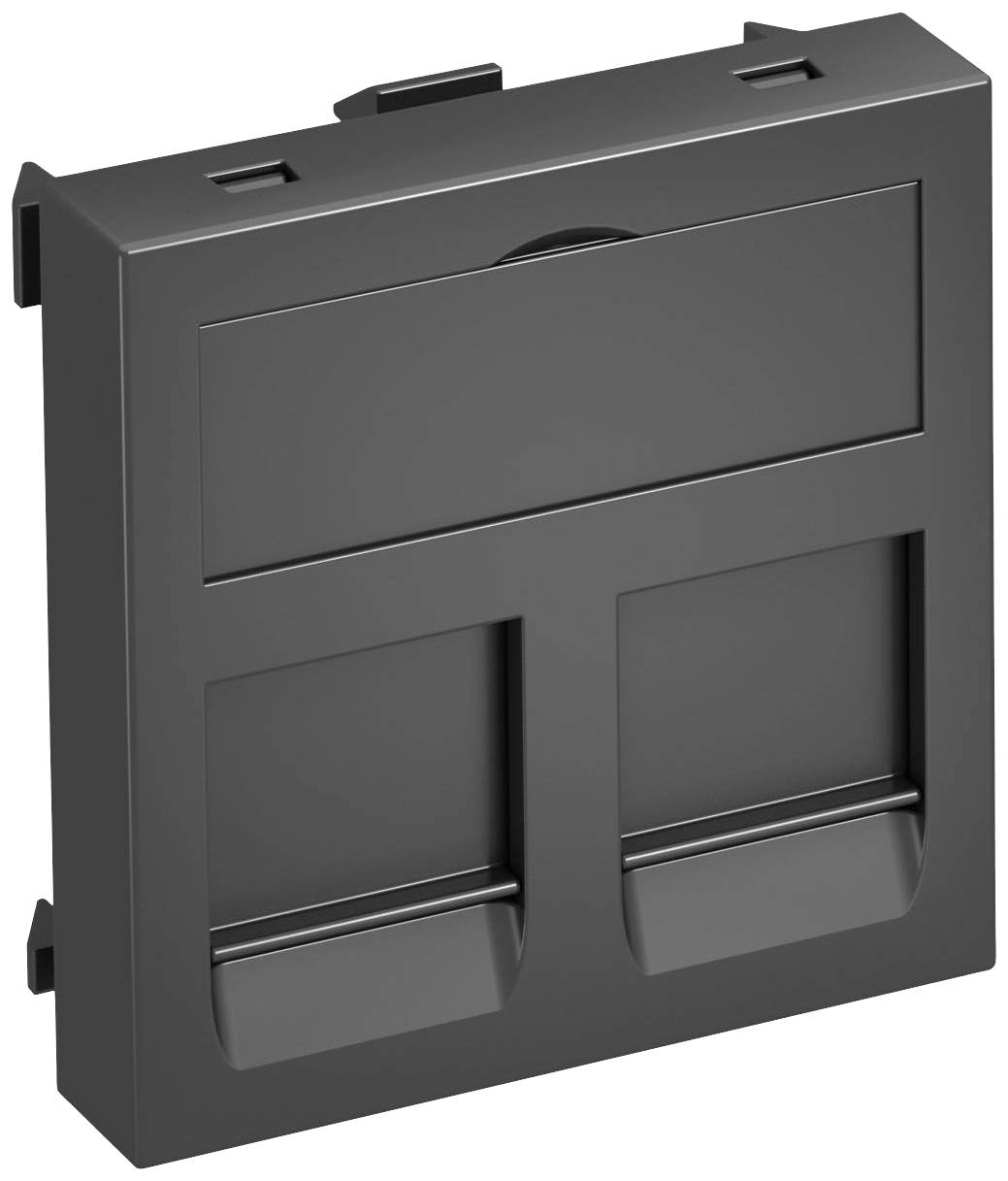

OBO Bettermann 6119210 Cover IT mount (W x H x D) 45 x 45 x 9 mm 1 pc(s) Grey
EAN:
Part number:
Item no:
Technical specifications
- Material = Plastic
- Material good = other
- Surface = untreated
- Protection class = IP20
- Product type
Cover
- Component
IT mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

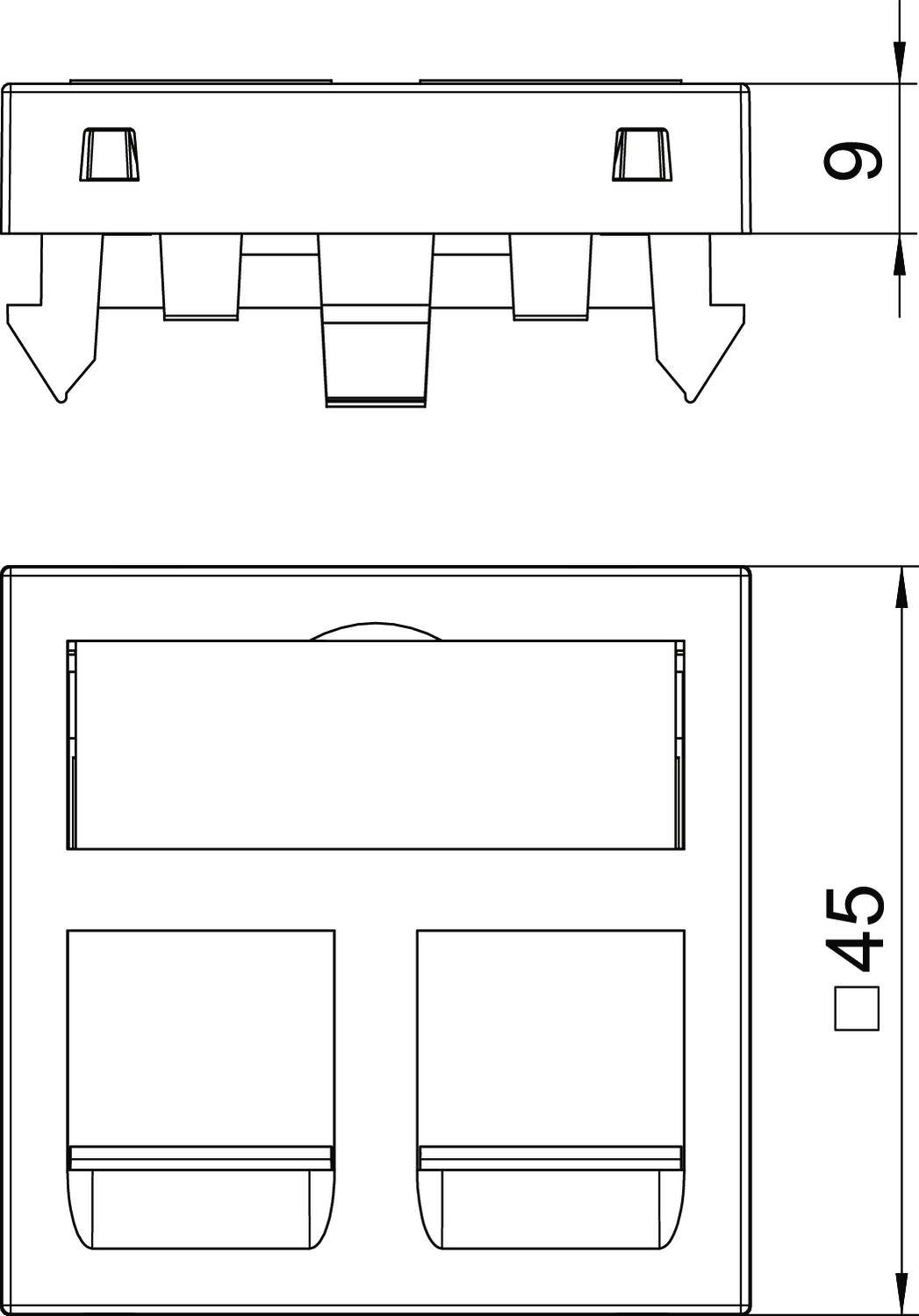

(W x H x D) 45 x 45 x 9 mm
- Width
45 mm
- Height
45 mm
- Depth
9 mm
- Similar RAL
7021
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962036 OBO Bettermann 6119210 Cover IT mount (W x H x D) 45 x 45 x 9 mm 1 pc(s) Grey
Description
Data technology carrier with straight outlet and locking slide for the admission of two data technology connection modules with RJ45 socket. The snap is suitable for the horizontal and vertical installation in the system. Type B has a mounting opening of 19,35/21 .55 x 14.85 mm and is suitable for direct attachment of the data connection modules in the mounting hole. Data Technology Carrier Type B is for the recording of the following data connection modules: BTR (design module): cat. 6 A module, E-DAT module and UAE module dätwyler: MS and MS-N.
