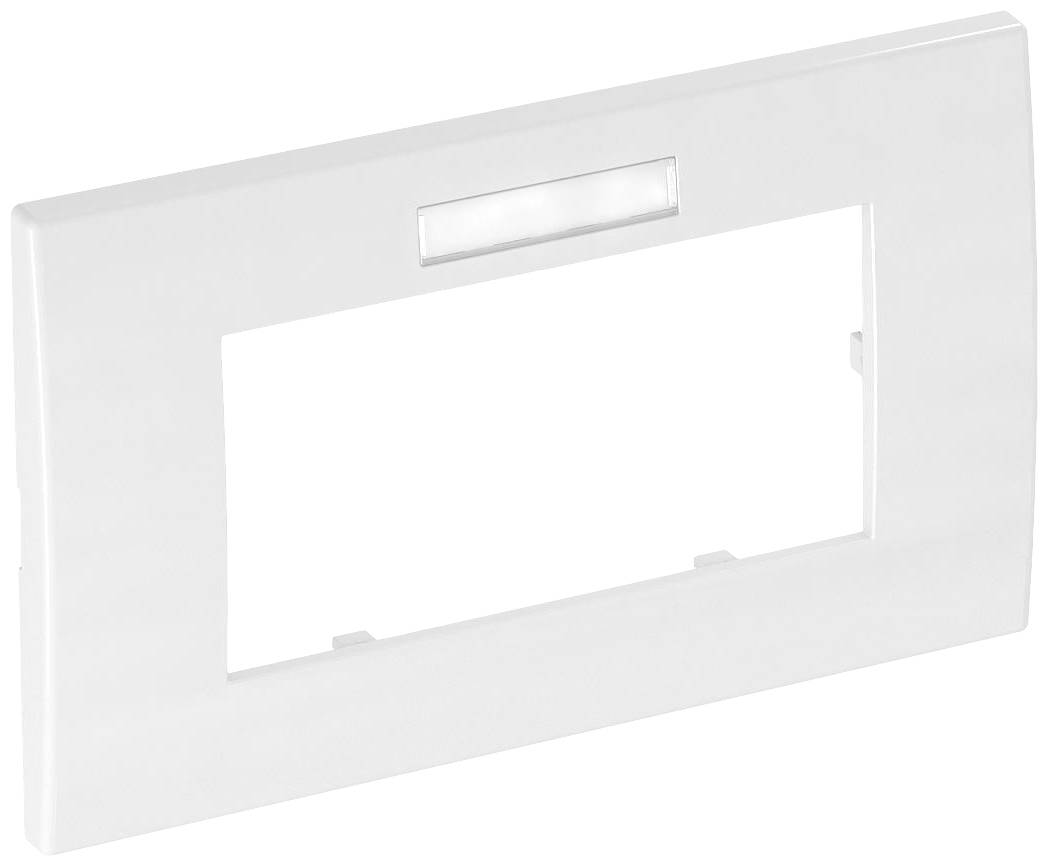

OBO Bettermann 6119352 Cover (W x H x D) 140 x 84 x 8.5 mm 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Number of Units = 2
- Mounting direction = horizontal
- Number of modules horizontal (with modular design) = 0
- Number of modules vertically (with modular design) = 0
- Suitable for underfloor channel box = No
- Suitable for device installation duct = Yes
- Text field/labelling area = Yes
- Material = Plastic
- Material good = Duroplast
- Halogen-free = Yes
- Surface = untreated
- Color = white
- RAL-number (similar) = 9010
- Transparent = No
- With hinged lid = No
- Mounting type = clamp fixing
- Width = 140 mm
- Height = 84 mm
- Depth = 8.5 mm
- Installation width = 45 mm
- Installation height = 45 mm
- Product type
Cover
- Content
1 pc(s)
- Factory colour
White
- Dim

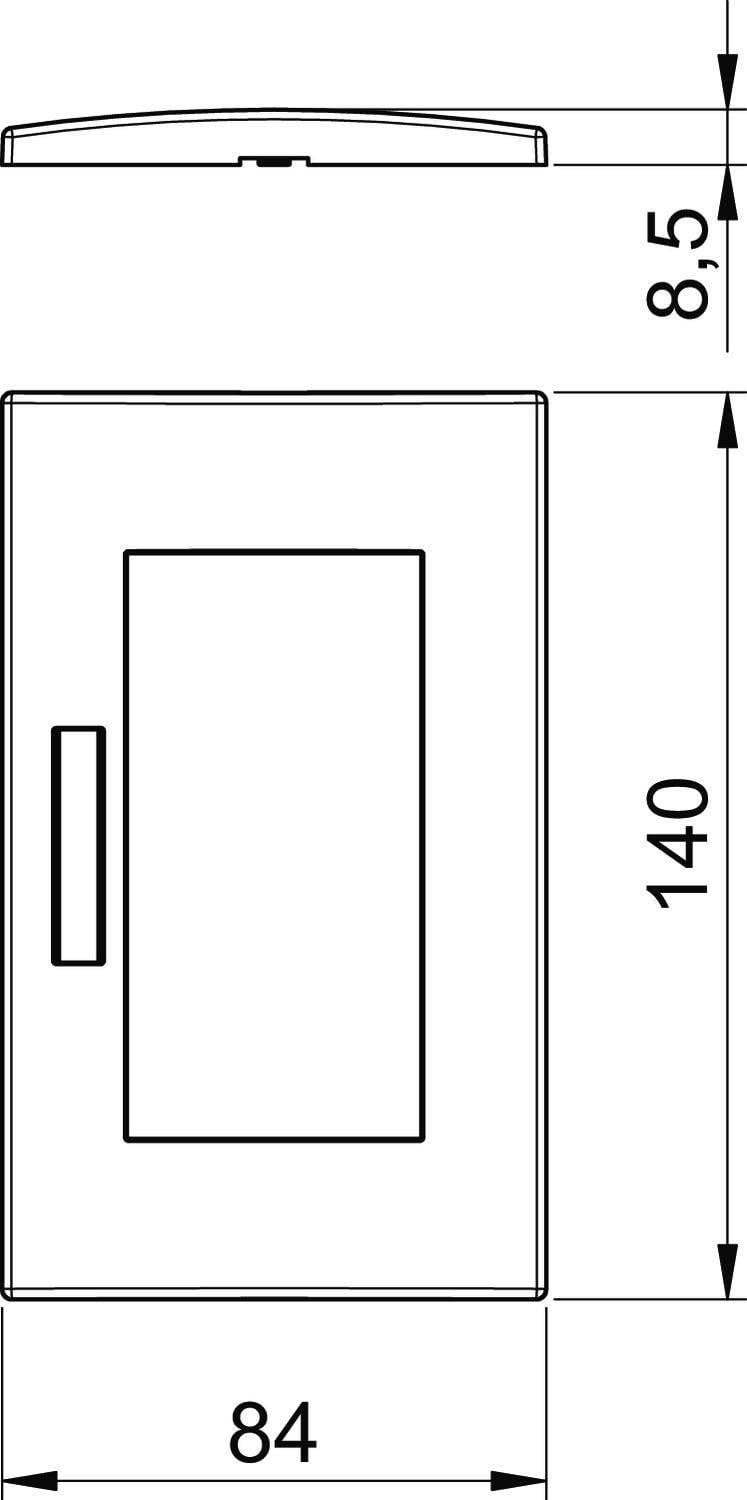

(W x H x D) 140 x 84 x 8.5 mm
- Width
140 mm
- Height
84 mm
- Depth
8.5 mm
- Similar RAL
9010
- Recess width
45 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960815 OBO Bettermann 6119352 Cover (W x H x D) 140 x 84 x 8.5 mm 1 pc(s) White
Description
Front snap-frame for module 45 installation devices, with inscription field for horizontal installation of equipment, for locked in socket module
