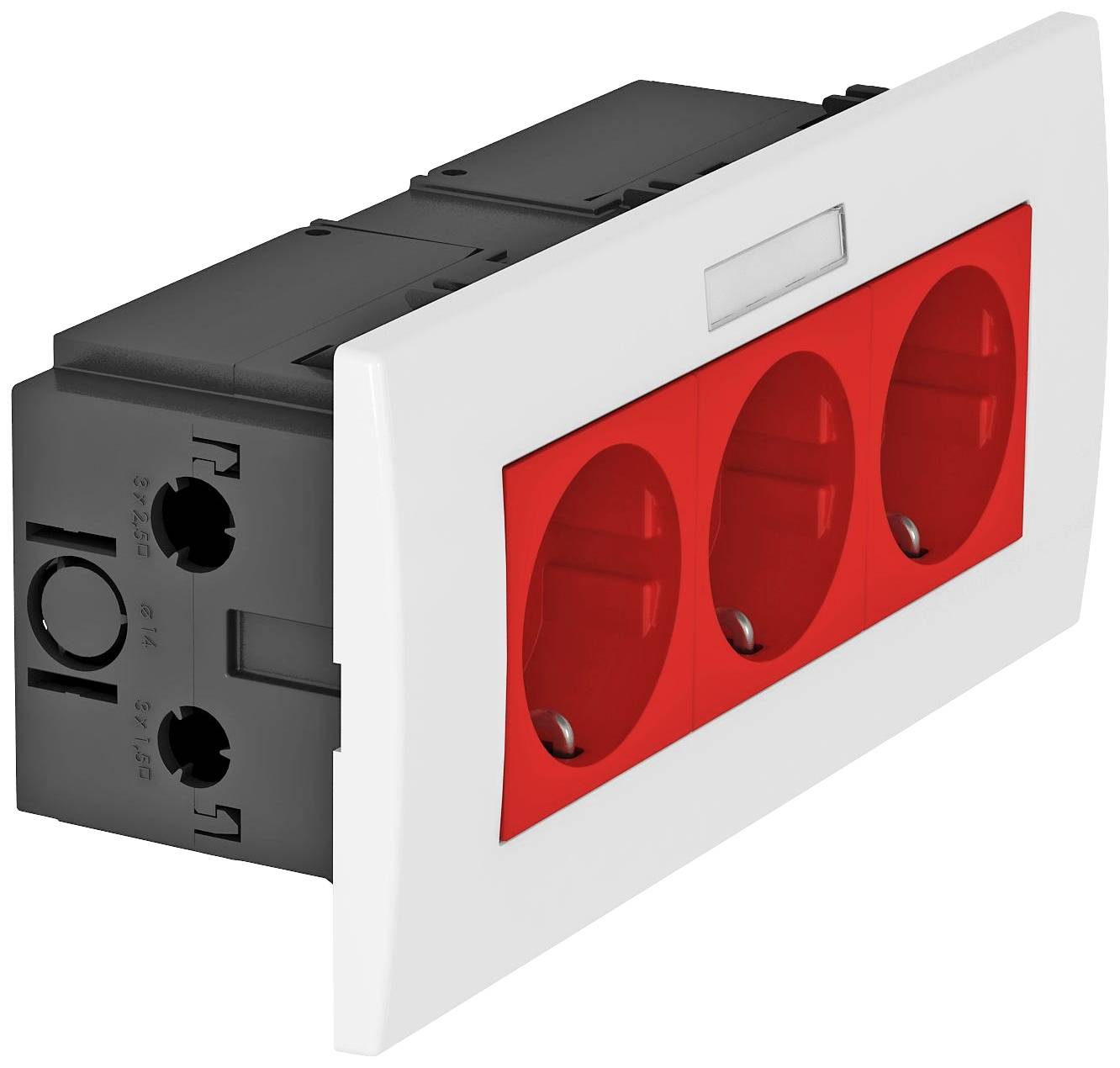

OBO Bettermann 6119435 Inset Socket (W x H x D) 185 x 84 x 60 mm 1 pc(s) Red
EAN:
Part number:
Item no:
Technical specifications
- Design = EARTHING CONTACT
- Number of Units = 3
- Number of modules (in the case of modular design) = 0
- Imprint/identification = no label
- Text field/labelling area = Yes
- Color = red
- RAL-number (similar) = 3001
- Transparent = No
- Lockable = No
- Ejection mechanism = No
- Insulated installation = No
- With lighting function = No
- With orientation lighting = No
- Surge protection = No
- Fault current protection = No
- With fine-wire fuse = No
- Special power supply = without special power supply
- Mounting type = Installation Installation
- Material = Plastic
- With on/off switch = No
- Twisted Central Use = No
- Cover = complete housing
- Product type
Inset
- Component
Socket
- Content
1 pc(s)
- Factory colour
Red
- Dim

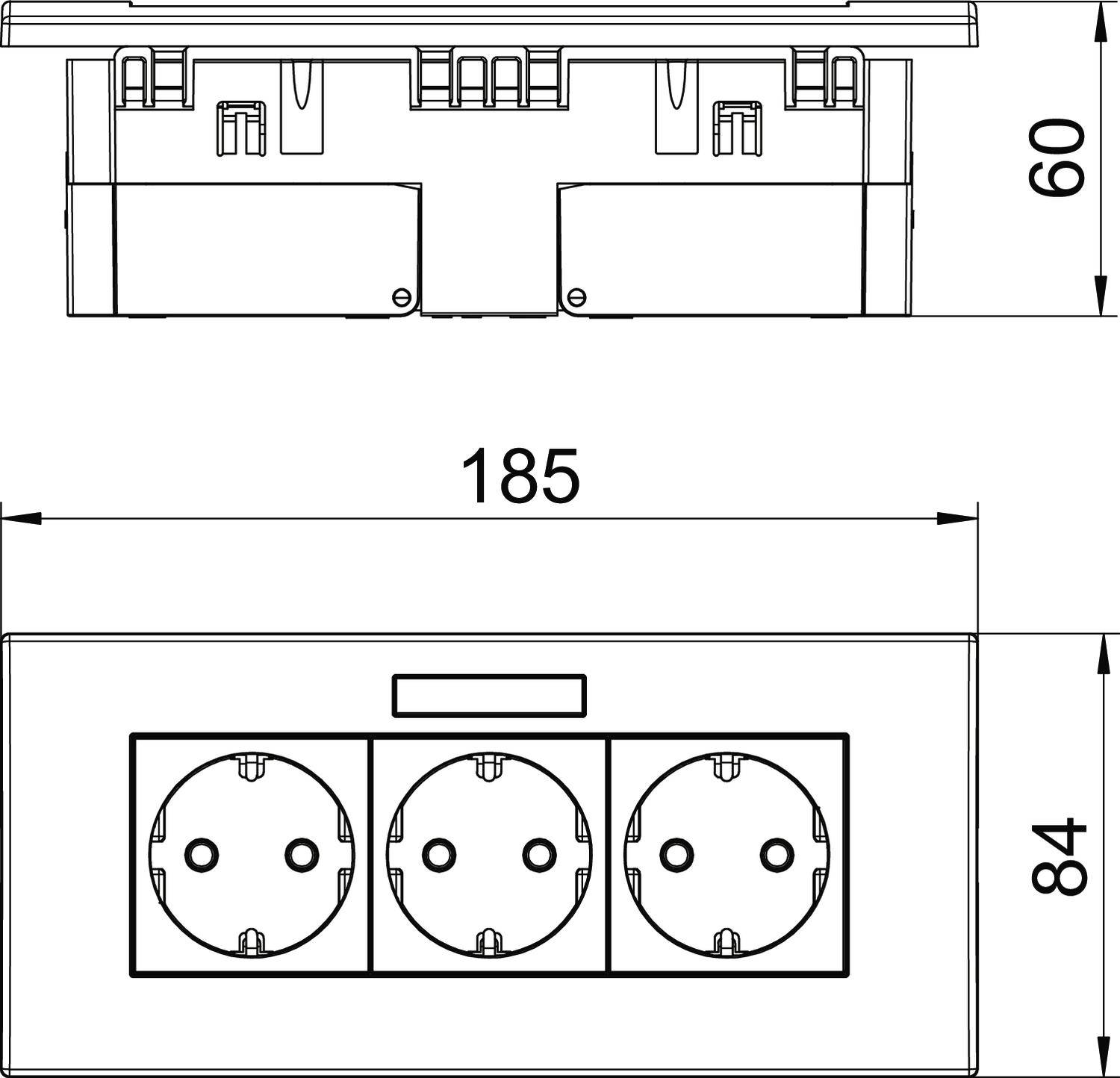

(W x H x D) 185 x 84 x 60 mm
- Width
185 mm
- Height
84 mm
- Depth
60 mm
- Similar RAL
3001
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964886 OBO Bettermann 6119435 Inset Socket (W x H x D) 185 x 84 x 60 mm 1 pc(s) Red
Description
Pre-socket unit with labelling field, suitable for installation in Rapid 80 equipment fitting duct systems.
