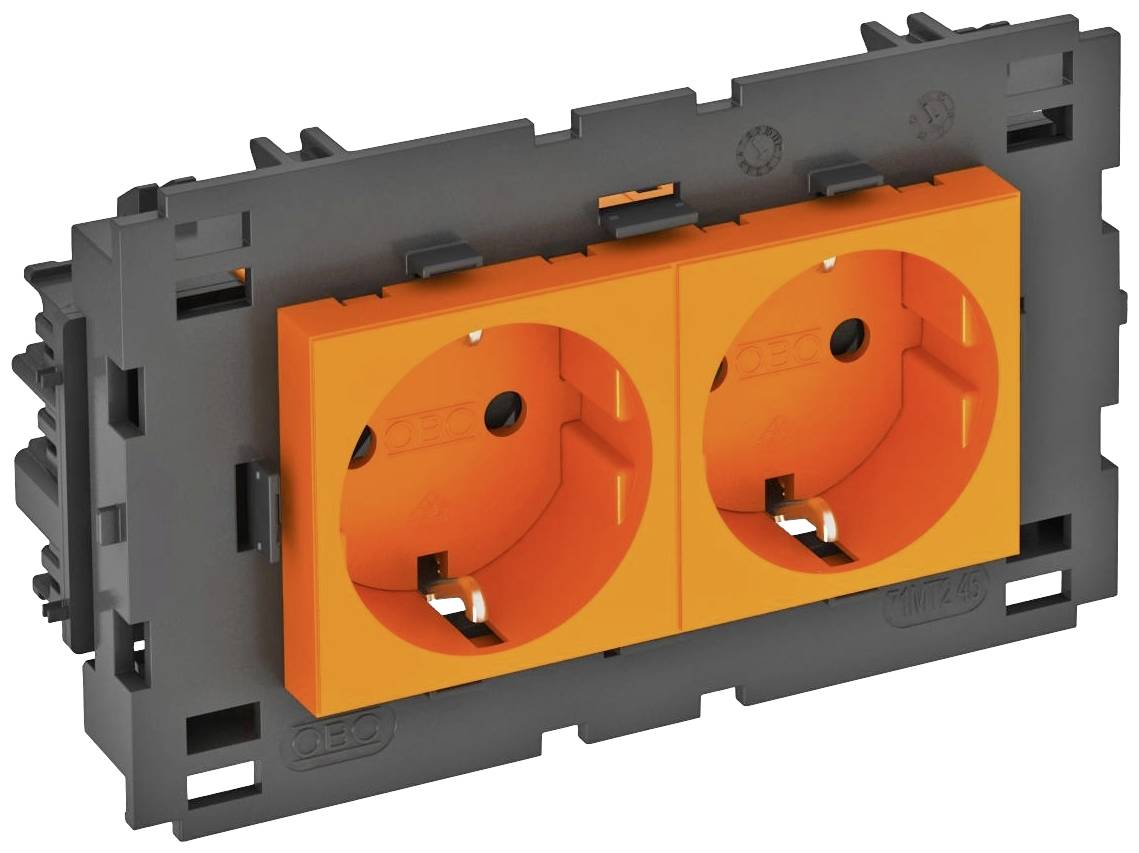

OBO Bettermann 6120434 Inset Socket (W x H x D) 131 x 76 x 42 mm 1 pc(s) Orange
EAN:
Part number:
Item no:
Technical specifications
- Design = EARTHING CONTACT
- Number of Units = 2
- Number of sockets can be switched = 0
- Imprint/identification = no label
- Connection type = plug-in terminal
- With hinged lid = No
- With increased touch protection = Yes
- Text field/labelling area = No
- Color = orange
- RAL-number (similar) = 2004
- Transparent = No
- Lockable = No
- Ejection mechanism = No
- With lighting function = No
- With orientation lighting = No
- Surge protection = No
- Fault current protection = No
- With fine-wire fuse = No
- Special power supply = without special power supply
- Mounting type = device installation duct
- Mounting type = snap-in mounting
- Material = Plastic
- Material good = other
- Halogen-free = Yes
- Surface = untreated
- Design the surface = matt
- With on/off switch = No
- Twisted Central Use = No
- Nominal current = 16 A
- Nominal Voltage = 250 V
- Suitable for protection (IP) = other
- For "harsh conditions" (VDE) = No
- Device width = 131 mm
- Device height = 76 mm
- Device depth = 42 mm
- Cover = central plate
- Product type
Inset
- Component
Socket
- Content
1 pc(s)
- Factory colour
Orange
- Dim

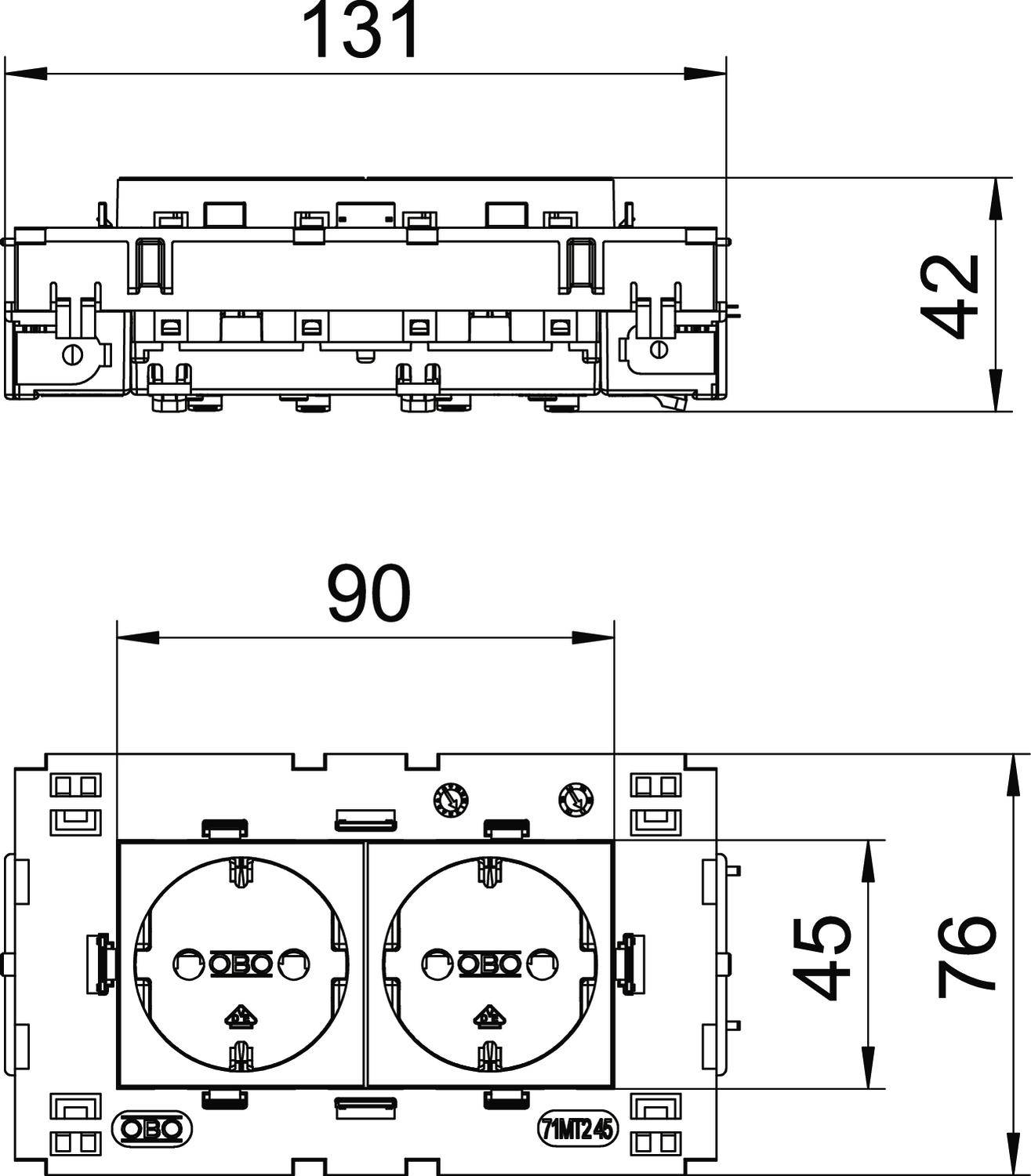

(W x H x D) 131 x 76 x 42 mm
- Width
131 mm
- Height
76 mm
- Depth
42 mm
- Similar RAL
2004
- Nominal current
16 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960634 OBO Bettermann 6120434 Inset Socket (W x H x D) 131 x 76 x 42 mm 1 pc(s) Orange
Description
Protective contact socket module 45 connect 2-way with 0° plug-in direction, with connection terminals according to IEC 60884-1, for installation in Device duct Rapid 80.
