OBO Bettermann 6120724 Inset Socket (W x H x D) 67.5 x 45 x 41.5 mm 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Design = British Standard
- Imprint/identification = no label
- With increased touch protection = Yes
- Color = white
- RAL-number (similar) = 9010
- Transparent = No
- Lockable = No
- With lighting function = No
- With orientation lighting = No
- Special power supply = without special power supply
- Mounting type = device installation duct
- Mounting type = snap-in mounting
- Material = other
- Material good = other
- Surface = untreated
- With on/off switch = Yes
- Nominal current = 13 A
- Nominal Voltage = 250 V
- Suitable for protection (IP) = other
- For "harsh conditions" (VDE) = No

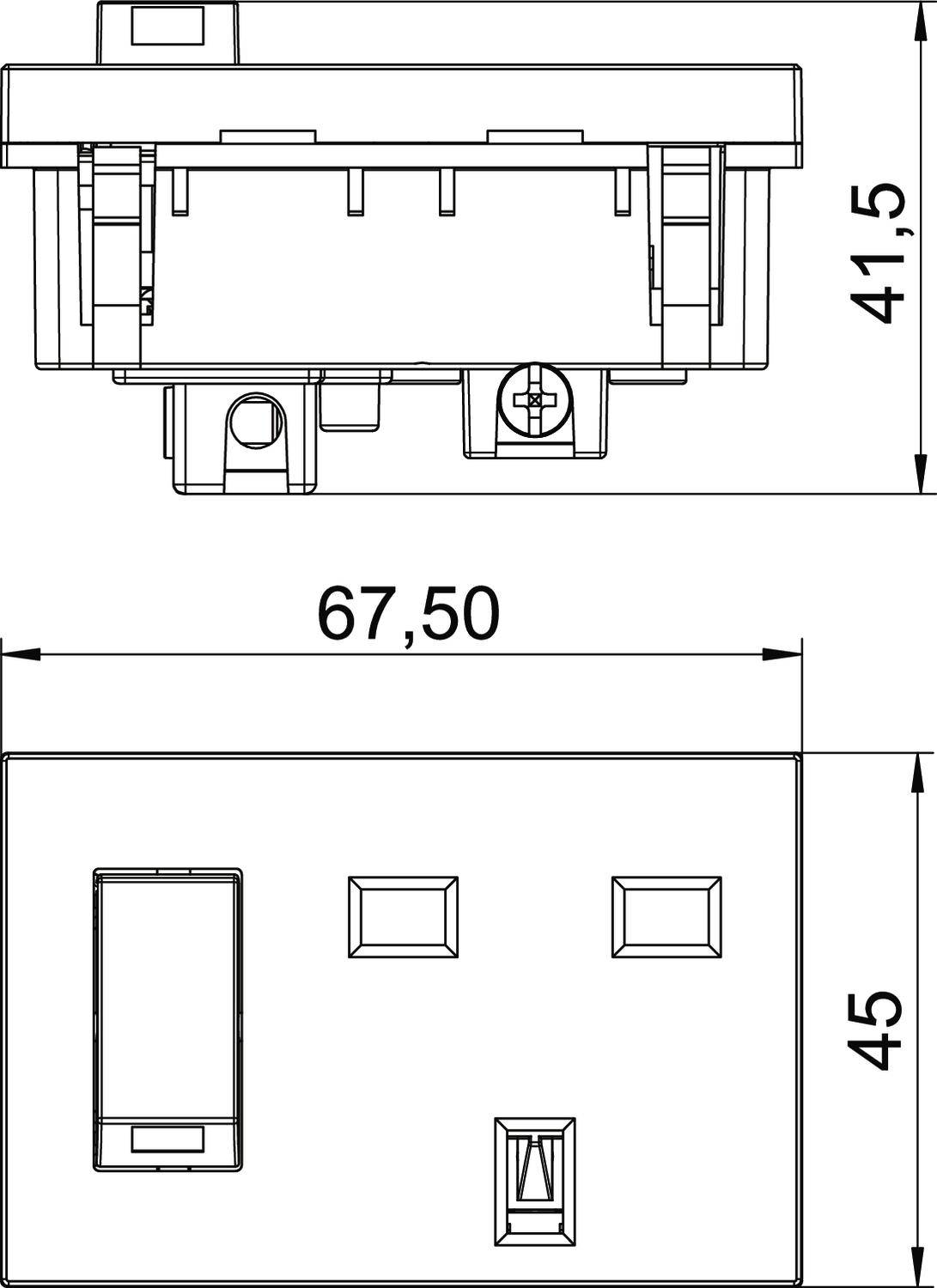

- Device width = 67.5 mm
- Device height = 45 mm
- Device depth = 41.5 mm
- Cover = central plate
- Product type
Inset
- Component
Socket
- Content
1 pc(s)
- Factory colour
White
- Dim
(W x H x D) 67.5 x 45 x 41.5 mm
- Width
67.5 mm
- Height
45 mm
- Depth
41.5 mm
- Similar RAL
9010
- Nominal current
13 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960615 OBO Bettermann 6120724 Inset Socket (W x H x D) 67.5 x 45 x 41.5 mm 1 pc(s) White
Description

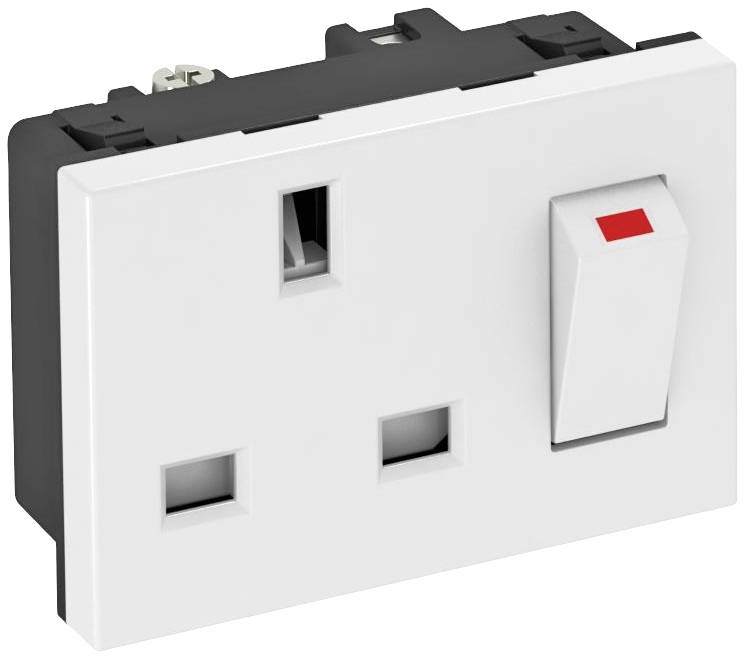

Module 45 1-way socket with 0° plug-in direction, with switch, British Standard Design, compliant with BS1363, with screw terminals.
