OBO Bettermann 6194184 Fasteners 1 pc(s) Pure white

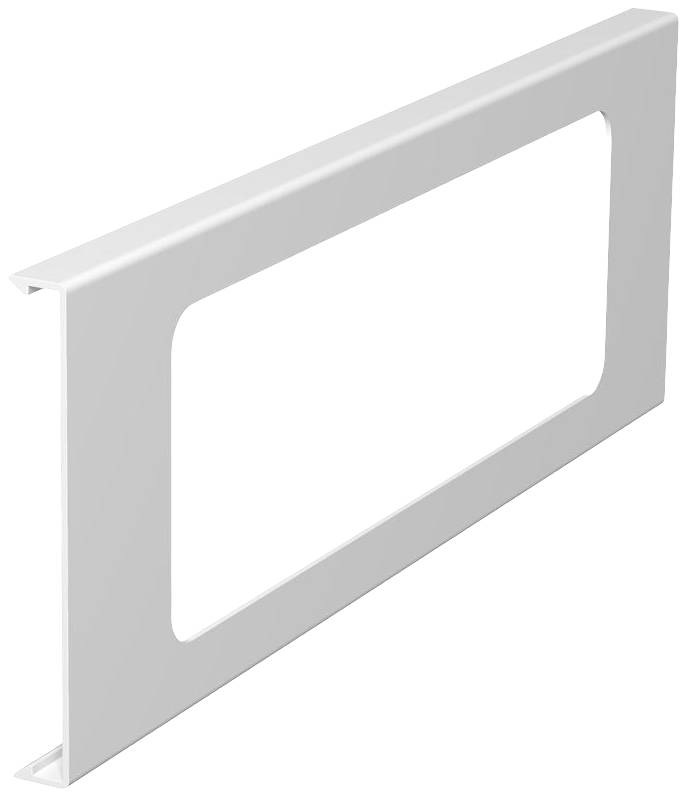

A rectangular, white plastic frame with rounded corners and a rectangular internal recess.

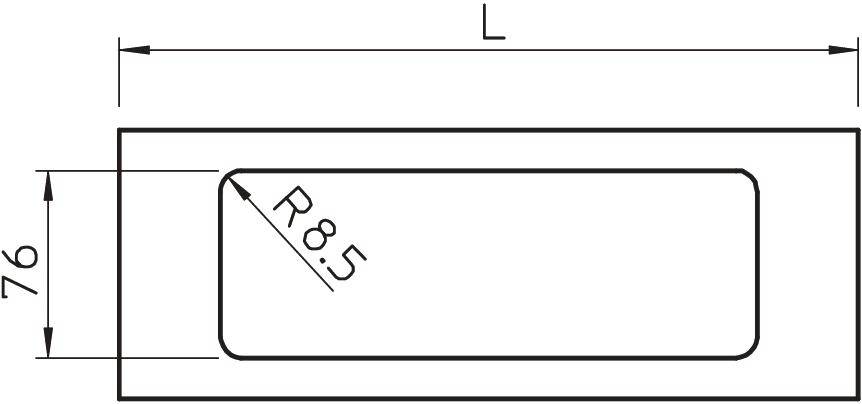

Sketch of a rectangular object with rounded corners, labelled 'R8.5'. Dimensions are 76 in height and 'L' in width.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Top width = 110 mm
  • Length = 300 mm
  • The width of the opening = 228 mm
  • The height of the opening = 76 mm
  • Number of Units = 3
  • Type = installation devices with frame
  • Design = smooth
  • Material = Plastic
  • Material good = polyvinyl chloride (PVC)
  • Halogen-free = No
  • Surface = untreated
  • Color = pure white
  • RAL-number = 9010
  • With protective film = No
  • Mounting type = across
  • Cut-lamination = No
  • With the label field = No
Product type

Fasteners

Content

1 pc(s)

Factory colour

Pure white

Length

300 mm

Weight

0

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1959230 OBO Bettermann 6194184 Fasteners 1 pc(s) Pure white

Description

Top section 3 compartment for the device installation in WDK channels.

This text is machine translated.
