OBO Bettermann 6209719 Cable ducting (L x W x H) 3 m x 100.00 mm x 60.00 mm 3 m
EAN:
Part number:
Item no:

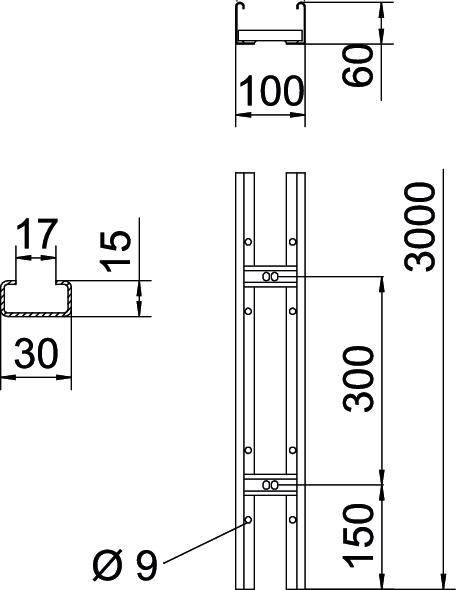

Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 60 mm
- Width 100 mm
- Length: 3000 mm
- Usable cross-section: 4000 mm²
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Surface protection: Hot-dip galvanized
- Weighs 2.61 kg/m.
- Product type
Cable ducting
- Content
3 m
- Dim
(L x W x H) 3 m x 100.00 mm x 60.00 mm
- Length
3 m
- Width
100.00 mm
- Height
60.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406837 OBO Bettermann 6209719 Cable ducting (L x W x H) 3 m x 100.00 mm x 60.00 mm 3 m
Description
Cable conductor in side height 60 mm with welded, open up C30 profile rungs. Roll up side spar for reinforcement and as edge protection. The mounting on the radial arm is done with type LKS 40 clamping pieces. The slit size of the rung is 16.5 mm, the suitable clamp is the Type 2056.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
