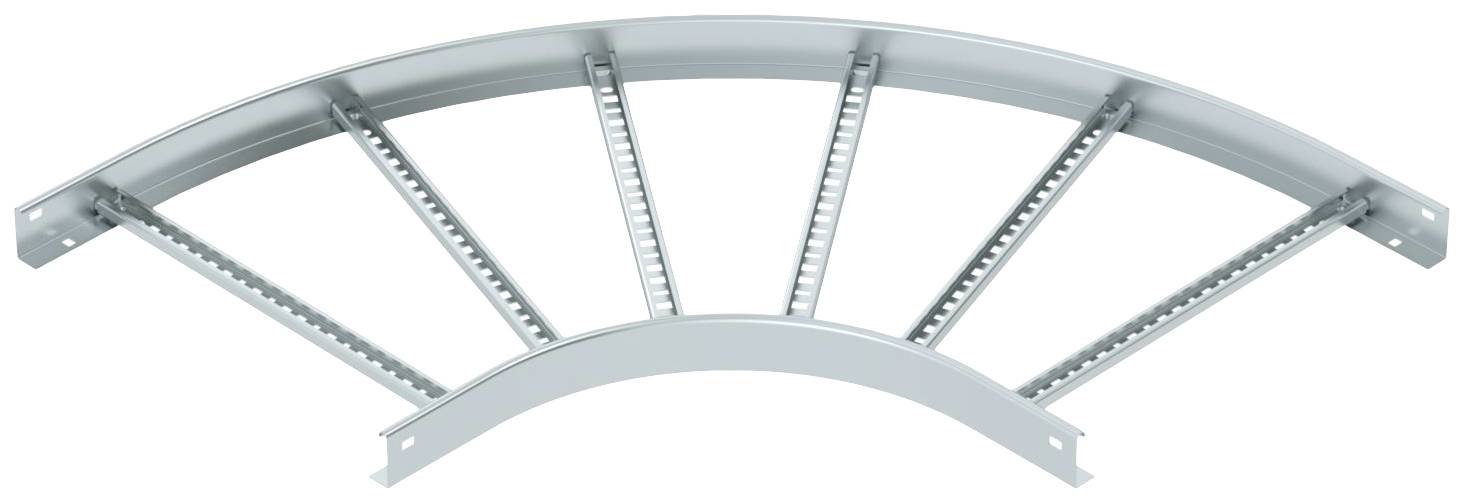

OBO Bettermann 6225048 Bend 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

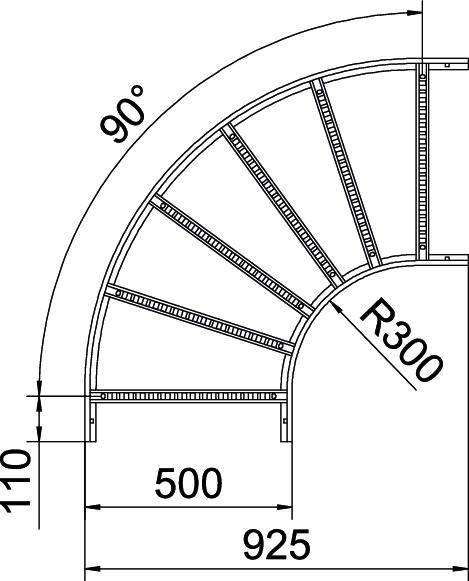

- Turn (angle): 90°
- Inner radius 300 mm
- Cable conductor width 500 mm
- Cable conductor height 60 mm
- Surface: Galvanized
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: no.
- Material: Steel
- Product type
Bend
- Type
Design of the rung: Profile punched
Side bar design: Flat profile
- Content
1 pc(s)
- Dim
(W x H) 500 mm x 60 mm
- Width
500 mm
- Height
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297138 OBO Bettermann 6225048 Bend 1 pc(s)
Description
Elbow 90° horizontal with welded rung for all cable conductor types with the side height 60 mm. Connectors are to be ordered separately on a pro-rata basis.
