OBO Bettermann 6225126 Bend 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Execution of the Seitenholms = Low Profile
- Side holes = No
- Design of the rung = profile punched

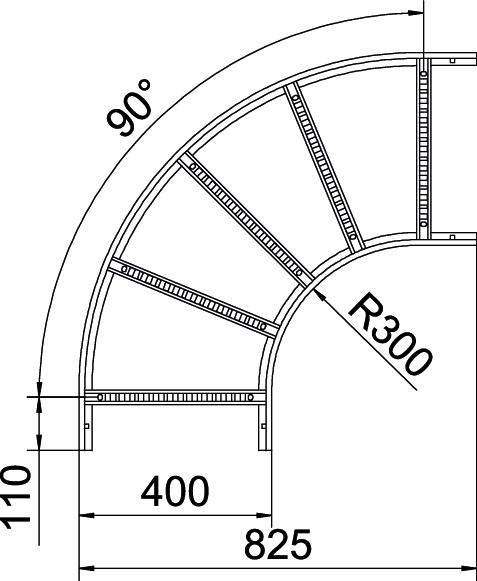

- Turn (angle) = 90°
- Cable height = 110 mm
- Cable conductor width = 400 mm
- Inner radius = 300 mm
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Surface = galvanised
- Product type
Bend
- Component
Small angle bracket
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 400 mm x 110 mm
- Width
400 mm
- Height
110 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960971 OBO Bettermann 6225126 Bend 1 pc(s) Metal
Description

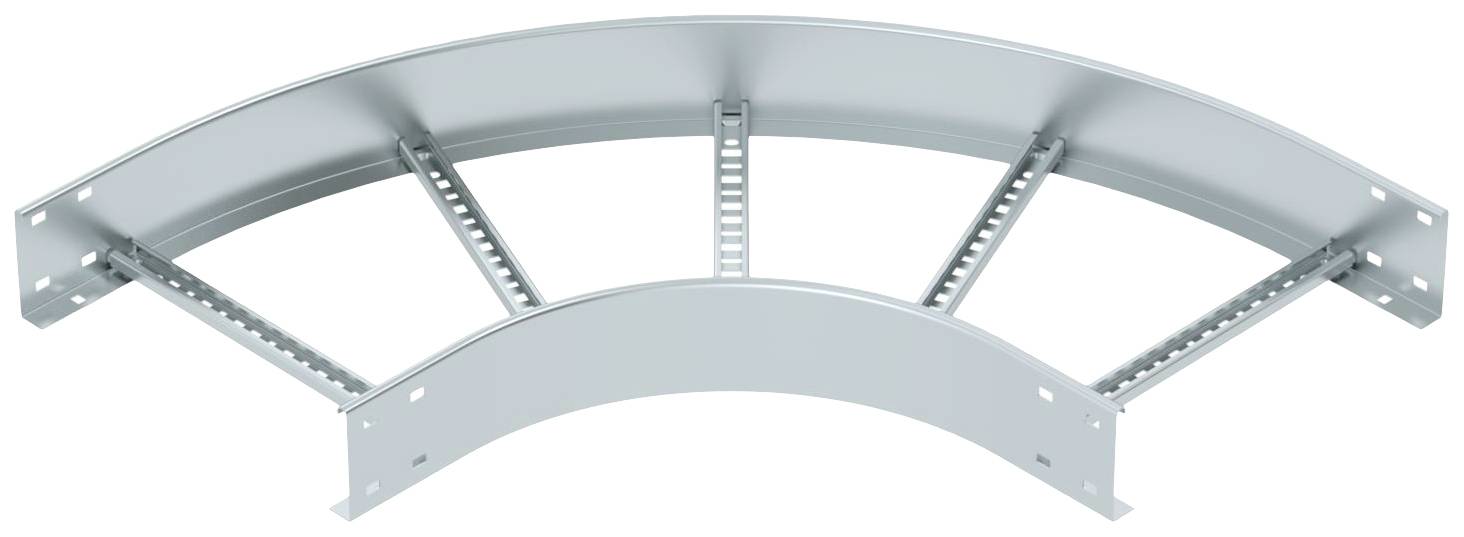

Bow 90° horizontal with welded rung for all cable conductor types with the page height 110 mm. Connectors are on a pro-rata basis to be ordered separately.
