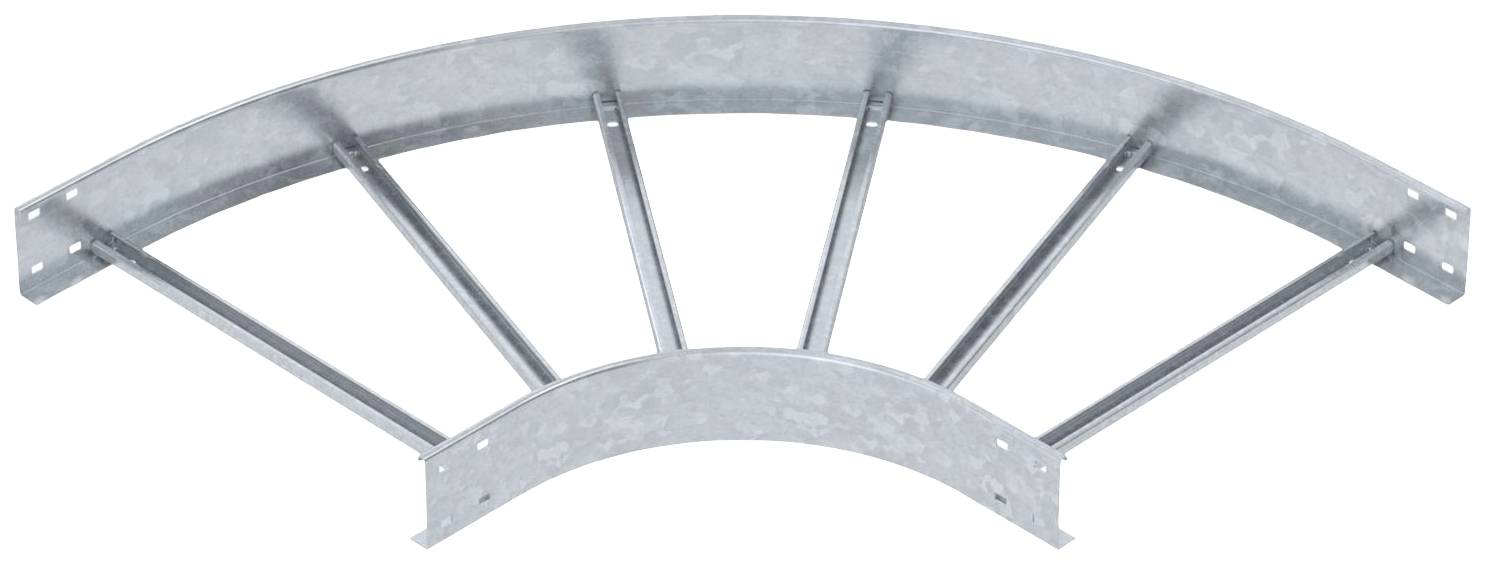

OBO Bettermann 6225182 Bend 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
OBO Bettermann Vertr Arc 90° SLB 1160R3 FT
Our service for you
Technical specifications

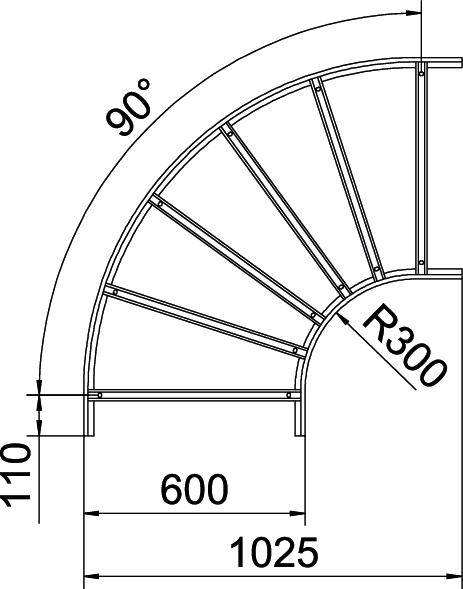

- Turn (angle): 90°
- Inner radius 300 mm
- Cable conductor width 600 mm
- Cable conductor height 110 mm
- Surface: Hot dip galvanized
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: no.
- Material: Steel
- Product type
Bend
- Type
Design of the rung: Profile unperforated
Side bar design: Flat profile
- Content
1 pc(s)
- Dim
(W x H) 600 mm x 110 mm
- Width
600 mm
- Height
110 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297140 OBO Bettermann 6225182 Bend 1 pc(s)
Description
Elbow 90° horizontal with welded rung for all cable conductor types with the side height 110 mm. Connectors are to be ordered separately on a pro-rata basis.
