OBO Bettermann 6229425 Bend 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
OBO Bettermann Vertr Arc 90° WLB 162 FT
Our service for you
Technical specifications
- Turn (angle): 90°
- Inner radius 500 mm
- Cable conductor width 200 mm
- Cable conductor height 160 mm
- Surface: Hot dip galvanized
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: Yes
- Material: Steel
- Product type
Bend
- Type
Design of the rung: Profile unperforated
Side bar type: Profile (open)
- Content
1 pc(s)
- Dim
(W x H) 200 mm x 160 mm
- Width
200 mm
- Height
160 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292653 OBO Bettermann 6229425 Bend 1 pc(s)
Description

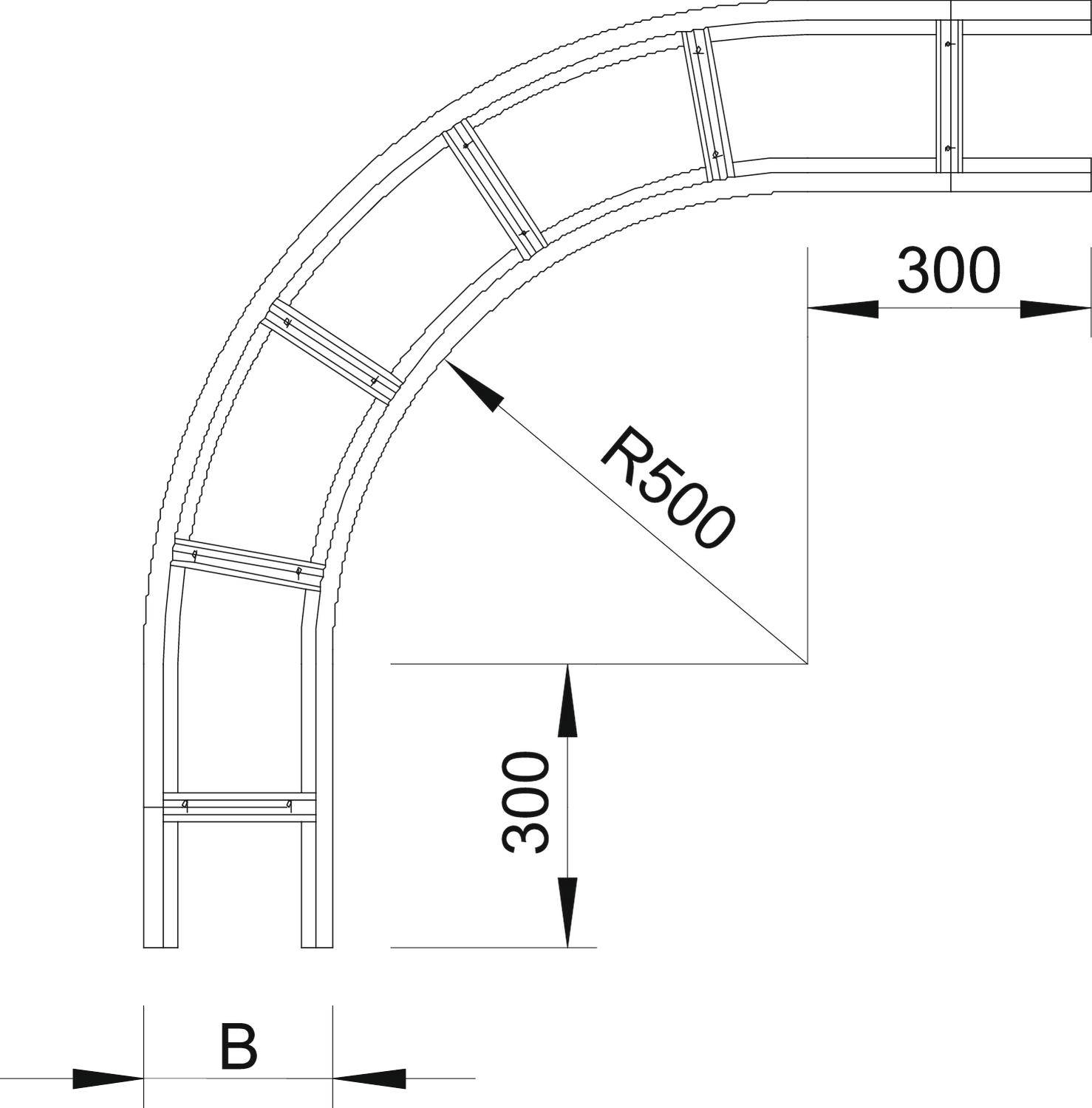

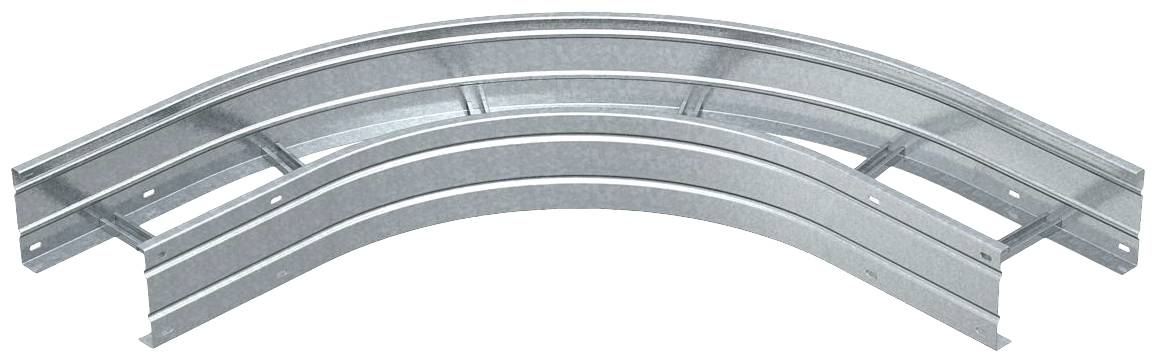

Molded part Arc 90° horizontal for all wide-span cable conductors with the side height 160 mm.
