OBO Bettermann 6277660 T piece (L x W x H) 500 x 170 x 70 mm 1 pc(s) Pure white
EAN:
Part number:
Item no:
Technical specifications
- Number of upper parts = 1
- Top width 1 = 76.5 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = Yes
- Design = lower section
- Material = Steel
- Material good = other
- Halogen-free = Yes
- Surface = galvanized and coated
- With protective film = No
- With channel connector = No
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
T piece
- Content
1 pc(s)
- Factory colour
Pure white
- Dim

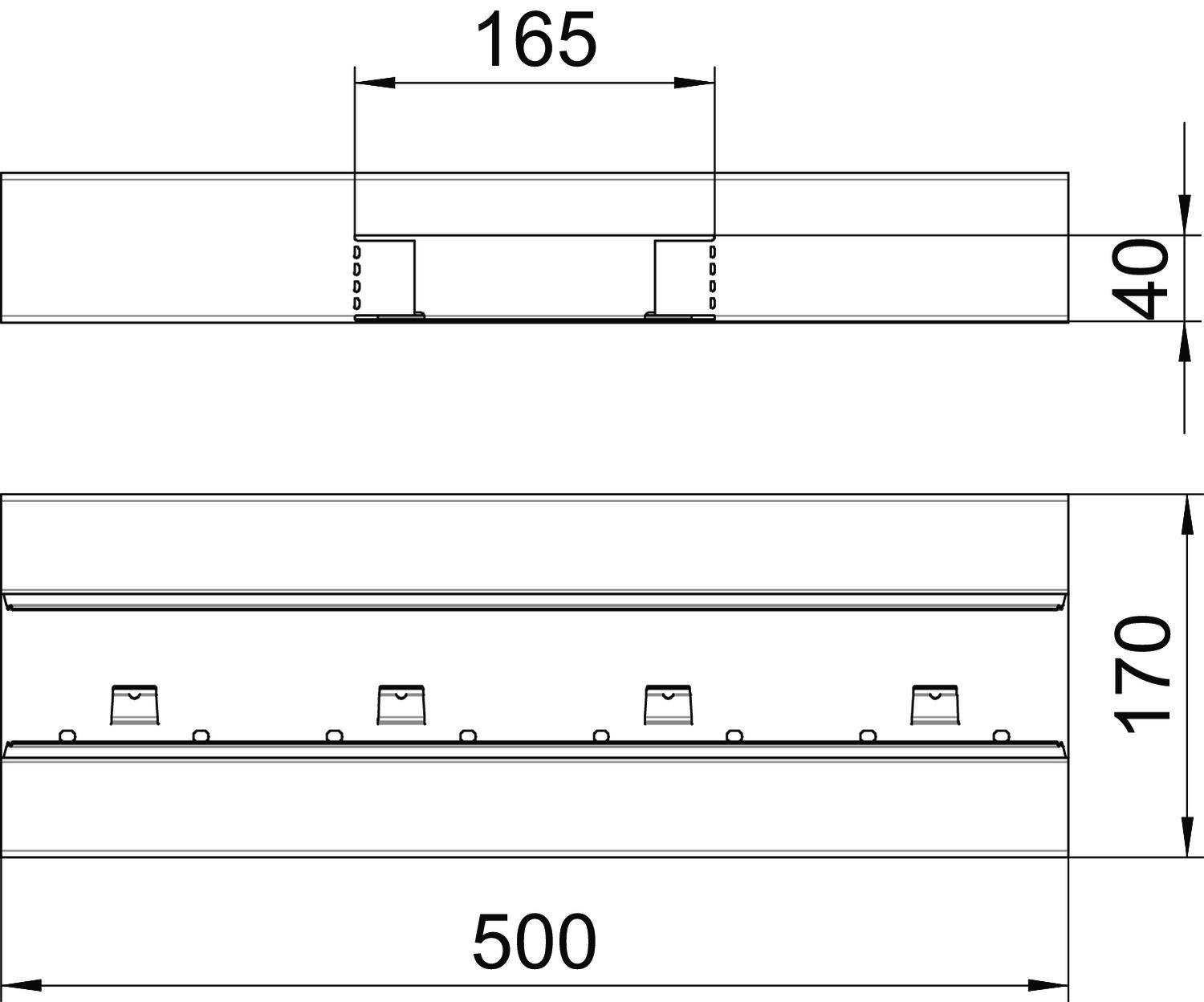

(L x W x H) 500 x 170 x 70 mm
- Length
500 mm
- Width
170 mm
- Height
70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960546 OBO Bettermann 6277660 T piece (L x W x H) 500 x 170 x 70 mm 1 pc(s) Pure white
Description

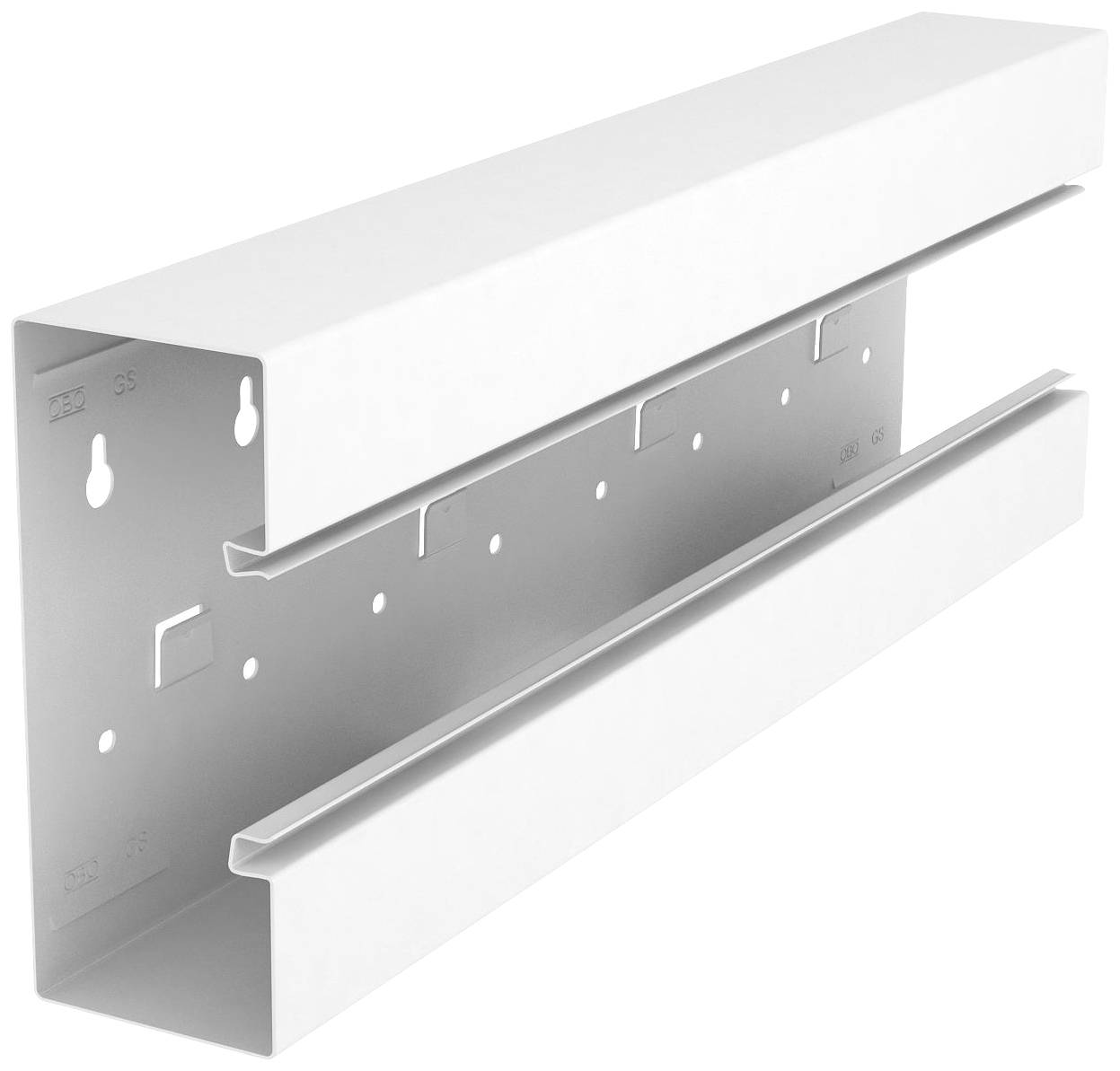

T-piece to change the direction of Device duct Rapid 80 GS with system opening 80 mm.
