OBO Bettermann 6277740 Fasteners (W x H) 170 mm x 90 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The form = balanced
- Number of upper parts = 1
- Top width 1 = 76.5 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Design = lower section
- .90° angle = 90.
- Material = Steel
- Material good = other
- Halogen-free = Yes
- Surface = galvanized and coated
- With protective film = No
- With channel connector = No
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
Fasteners
- Content
1 pc(s)
- Dim

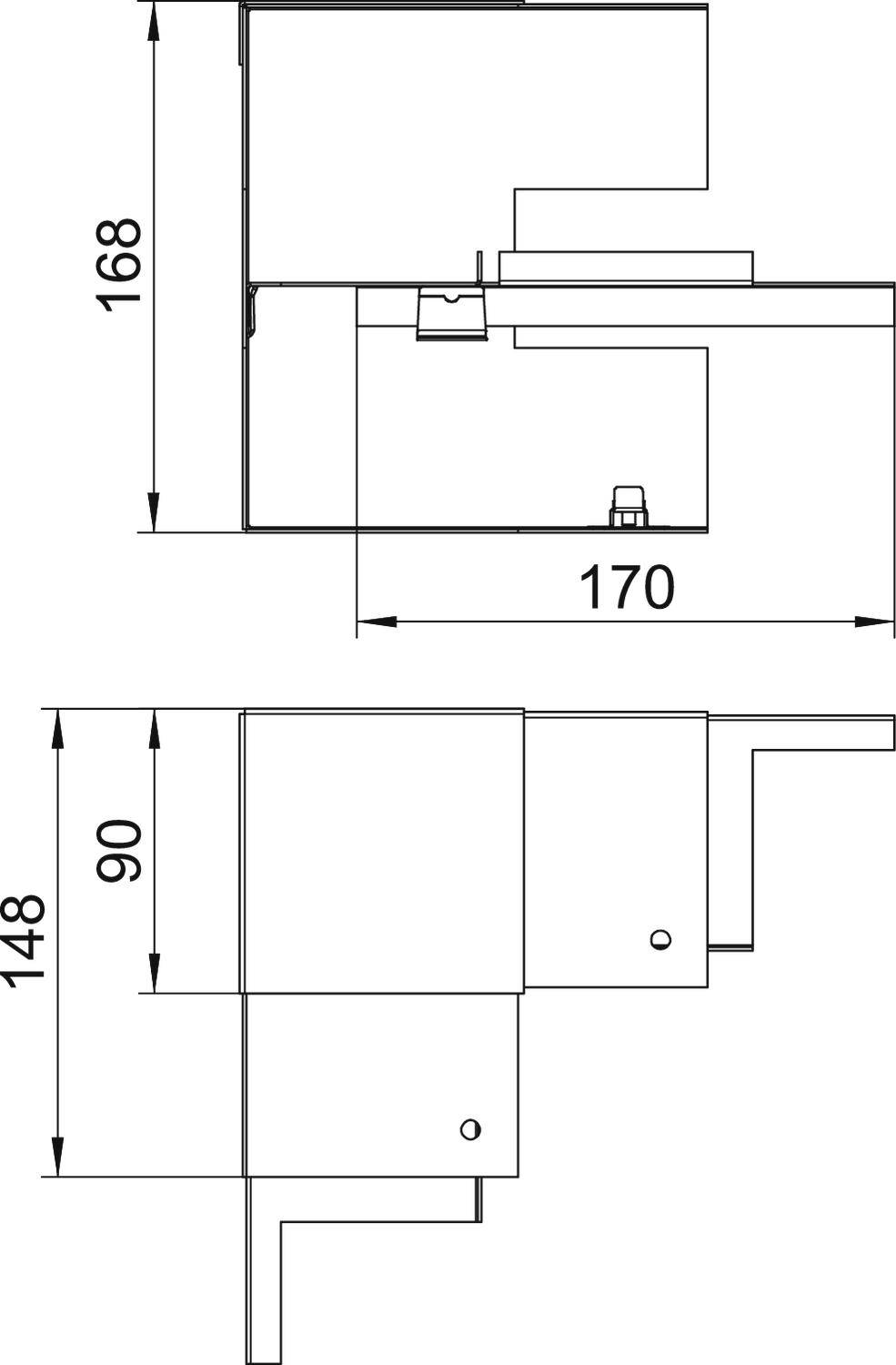

(W x H) 170 mm x 90 mm
- Width
170 mm
- Height
90 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957847 OBO Bettermann 6277740 Fasteners (W x H) 170 mm x 90 mm 1 pc(s)
Description

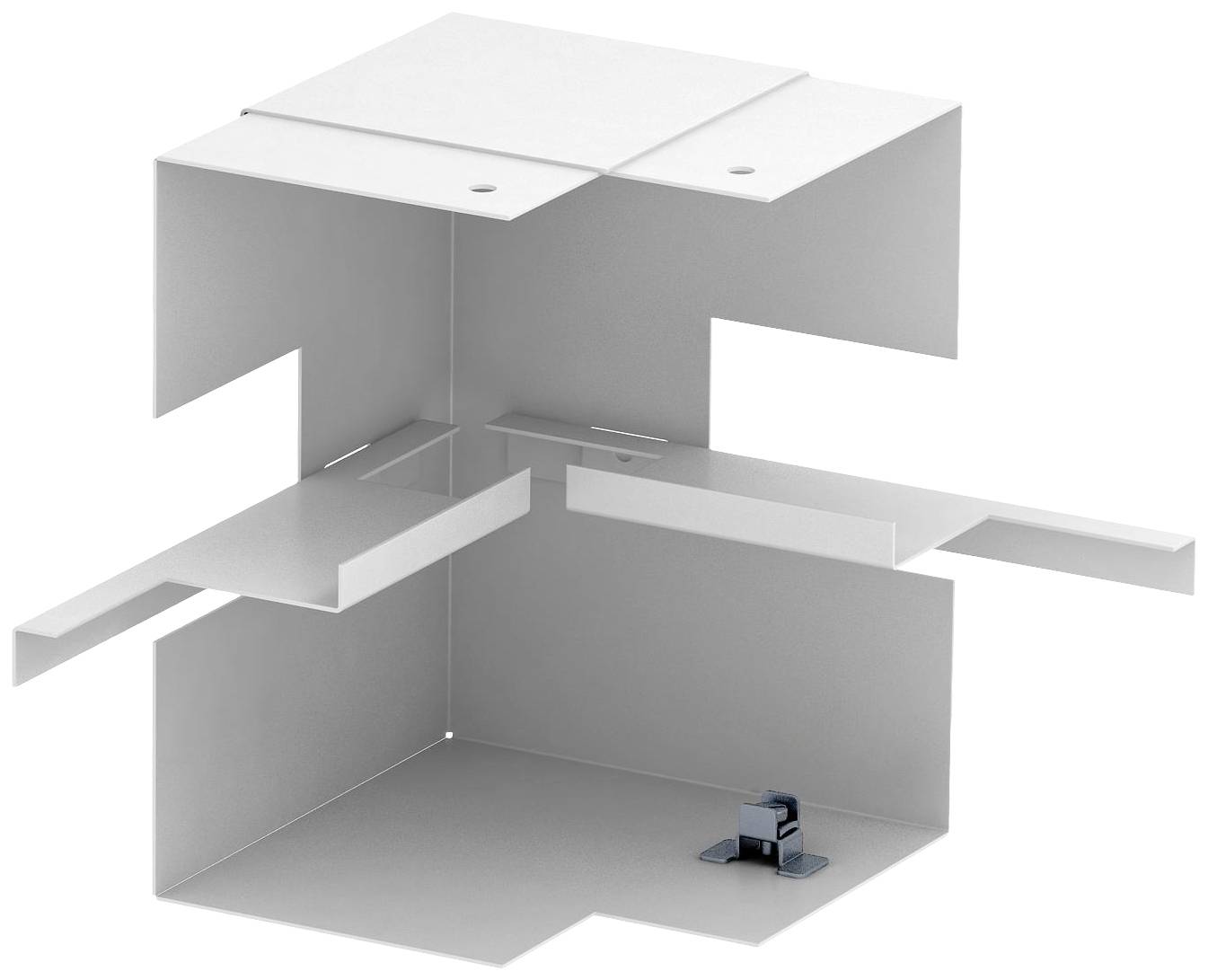

Inside corner makes it easy to change the direction of device GEK-S with system opening 80 mm.
