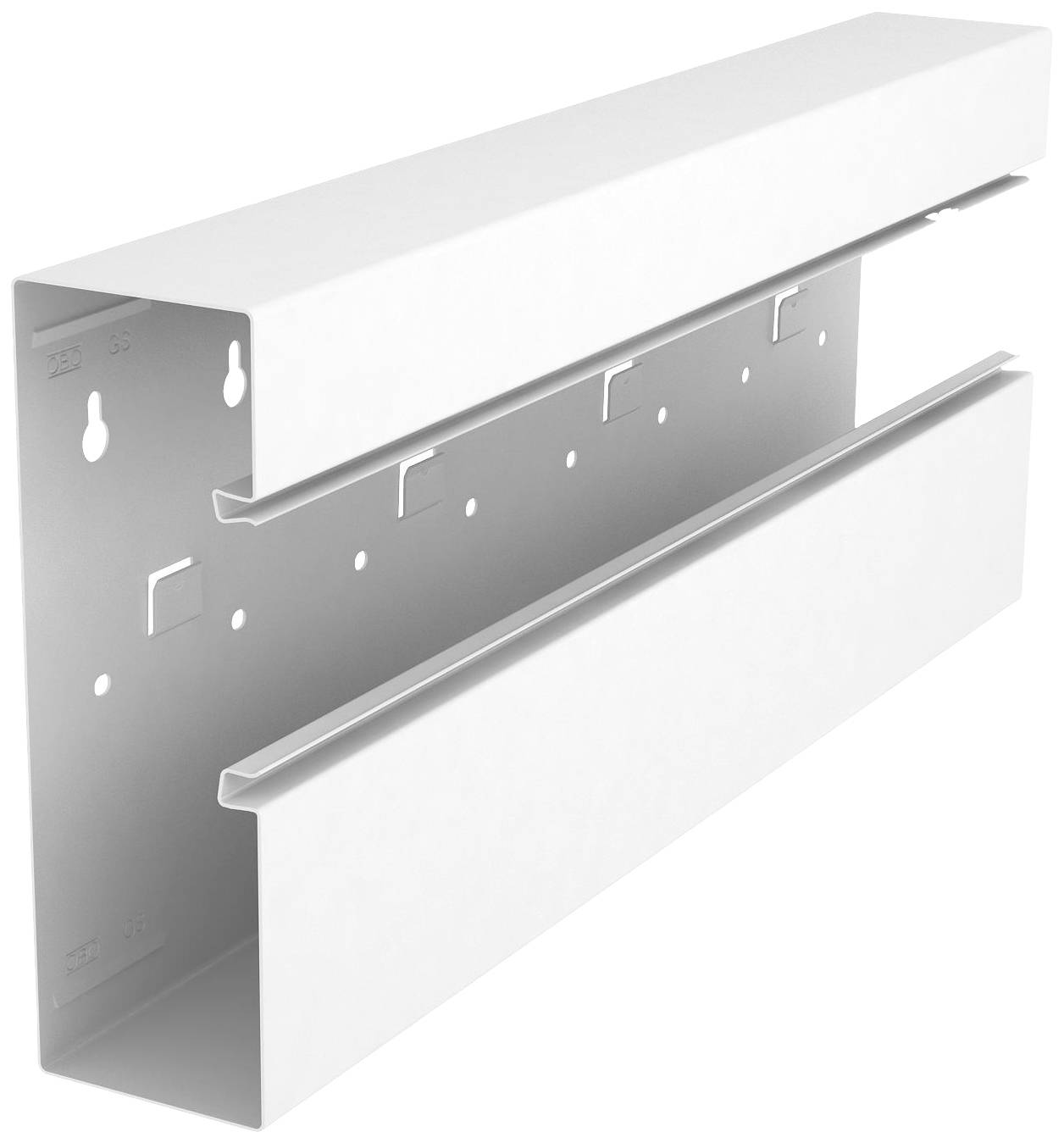

OBO Bettermann 6278060 T piece (W x D) 210 mm x 90 mm 1 pc(s) Pure white
EAN:
Part number:
Item no:

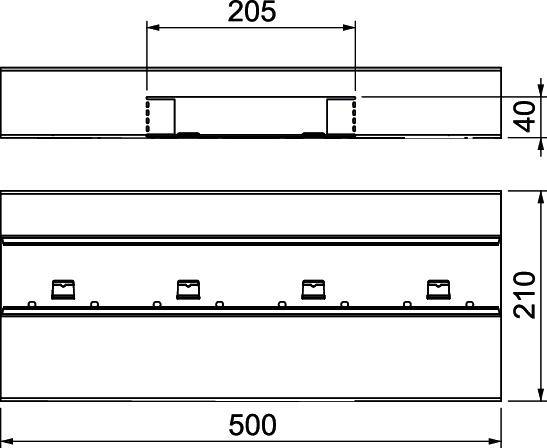

Technical specifications
- Width = 210 mm
- Depth = 90 mm
- Width of the Branch = 205 mm
- Number of upper parts = 1
- Top width 1 = 76.5 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = No
- Design = lower section
- Material = Steel
- Material good = other
- Halogen-free = Yes
- Surface = galvanized and coated
- Color = pure white
- RAL-number = 9010
- With protective film = Yes
- With channel connector = No
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
T piece
- Content
1 pc(s)
- Factory colour
Pure white
- Dim
(W x D) 210 mm x 90 mm
- Width
210 mm
- Depth
90 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955238 OBO Bettermann 6278060 T piece (W x D) 210 mm x 90 mm 1 pc(s) Pure white
Description
T-piece to change the direction of Device duct Rapid 80 GS with system opening 80 mm.
