OBO Bettermann 6286540 Distribution column 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Column shape: Rectangular
- Design: One-sided
- Pre-wired: No.
- Adjustable: Yes

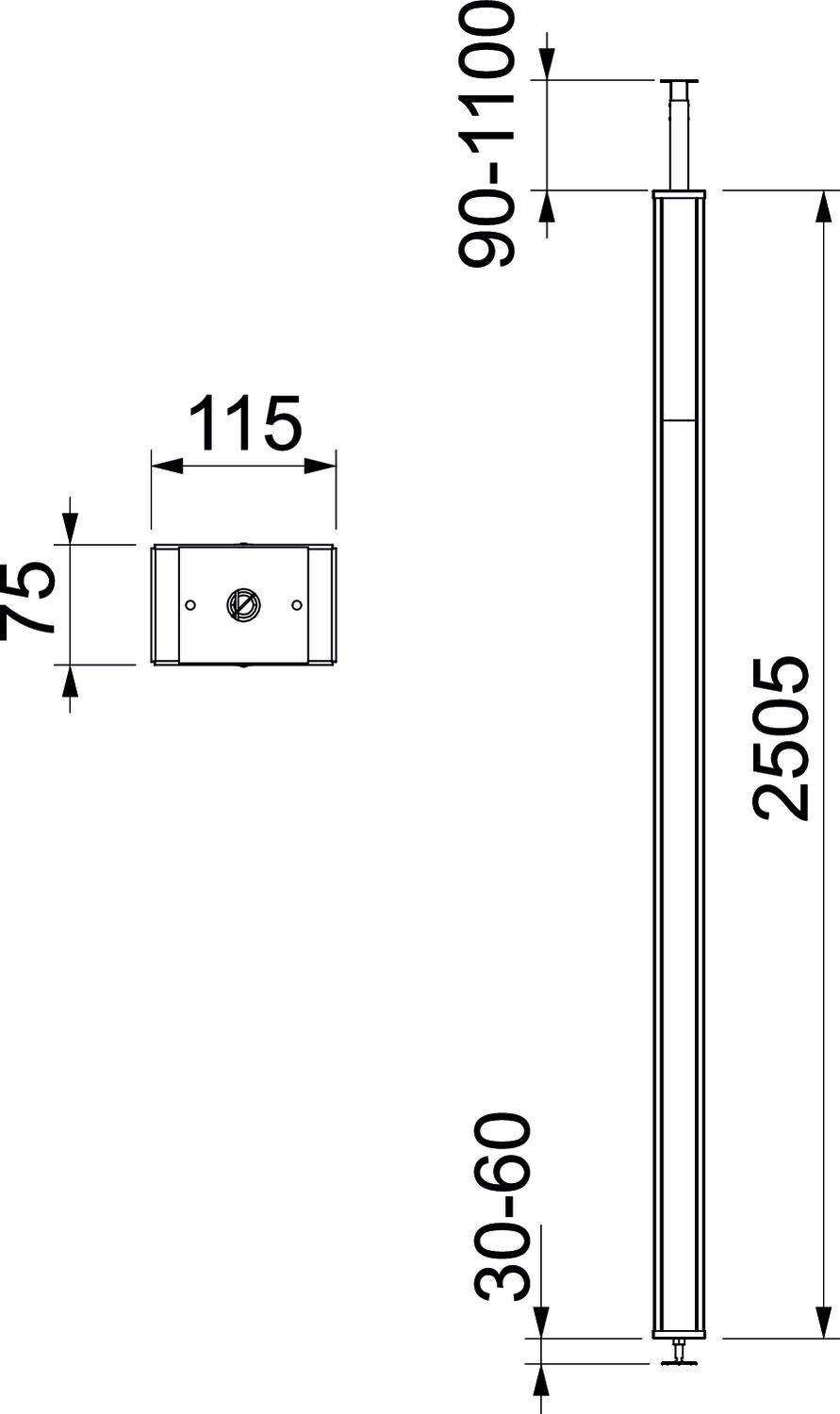

- Height adjustment 1100 mm
- Column height 2600..3700 mm
- Column depth 75 mm
- Column width 115 mm
- Number of upper parts to be used: 1
- Upper section width 76.5 mm
- Mounting type: Telescope
- Locally variable: No.
- Suitable for ceiling mounting: Yes
- Suitable for floor mounting: No.
- Cable entry: Top/bottom
- End-to-end profile: Yes
- Material of the installation column: Steel
- Material quality Installation column: Other
- Material of the installation column halogen-free: No.
- Surface protection column: Other
- Colour of column: White
- RAL number of the column: 9010
- Upper part material: Steel
- Halogen-free material of the top: No.
- Upper part color: White
- RAL number top part: 9010
- Product type
Distribution column
- Type
single sided
- Content
1 pc(s)
- Factory colour
White
- Dim
(W x D) 115 mm x 75 mm
- Width
115 mm
- Depth
75 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159951 OBO Bettermann 6286540 Distribution column 1 pc(s) White
Description

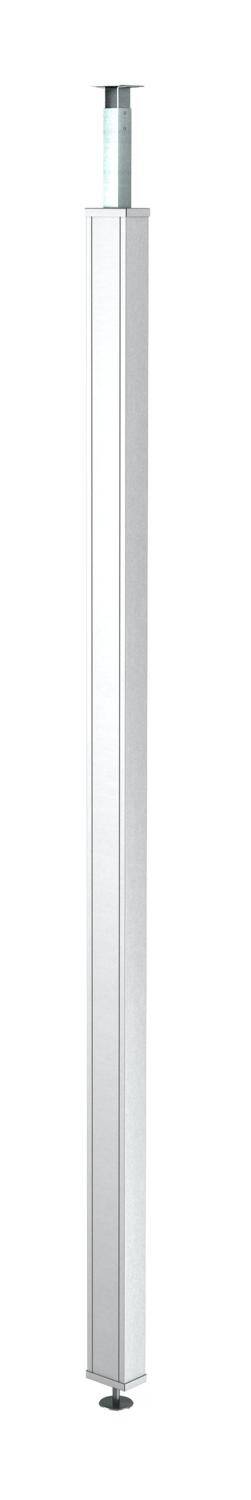

Installation column made of steel sheet with 76.5 mm system opening.
Set includes:
1 single-section column with clamping mounting
Total length 2625 mm - 3665 mm
1 ceiling mounting with telescopic profile
1 upper section PVC
Length: 2500 mm
A 2 m separation pad made of PVC and 2 upper clips are included in delivery.
The installation column is for mounting the 71GD series device panel sockets...
movement.
The installation column is pre-assembled and ready for immediate use. The following accessories can also be used according to the assembly situation.
This text is machine translated.
Set includes:
1 single-section column with clamping mounting
Total length 2625 mm - 3665 mm
1 ceiling mounting with telescopic profile
1 upper section PVC
Length: 2500 mm
A 2 m separation pad made of PVC and 2 upper clips are included in delivery.
The installation column is for mounting the 71GD series device panel sockets...
movement.
The installation column is pre-assembled and ready for immediate use. The following accessories can also be used according to the assembly situation.
This text is machine translated.
