OBO Bettermann 6312365 Bend 1 pc(s)

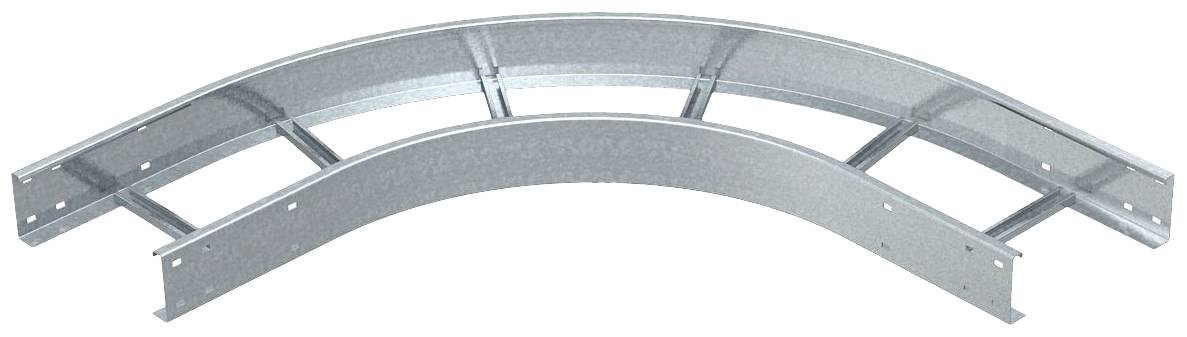

A metal cable trunking that is formed in an arc. It has multiple cross-braces for support.

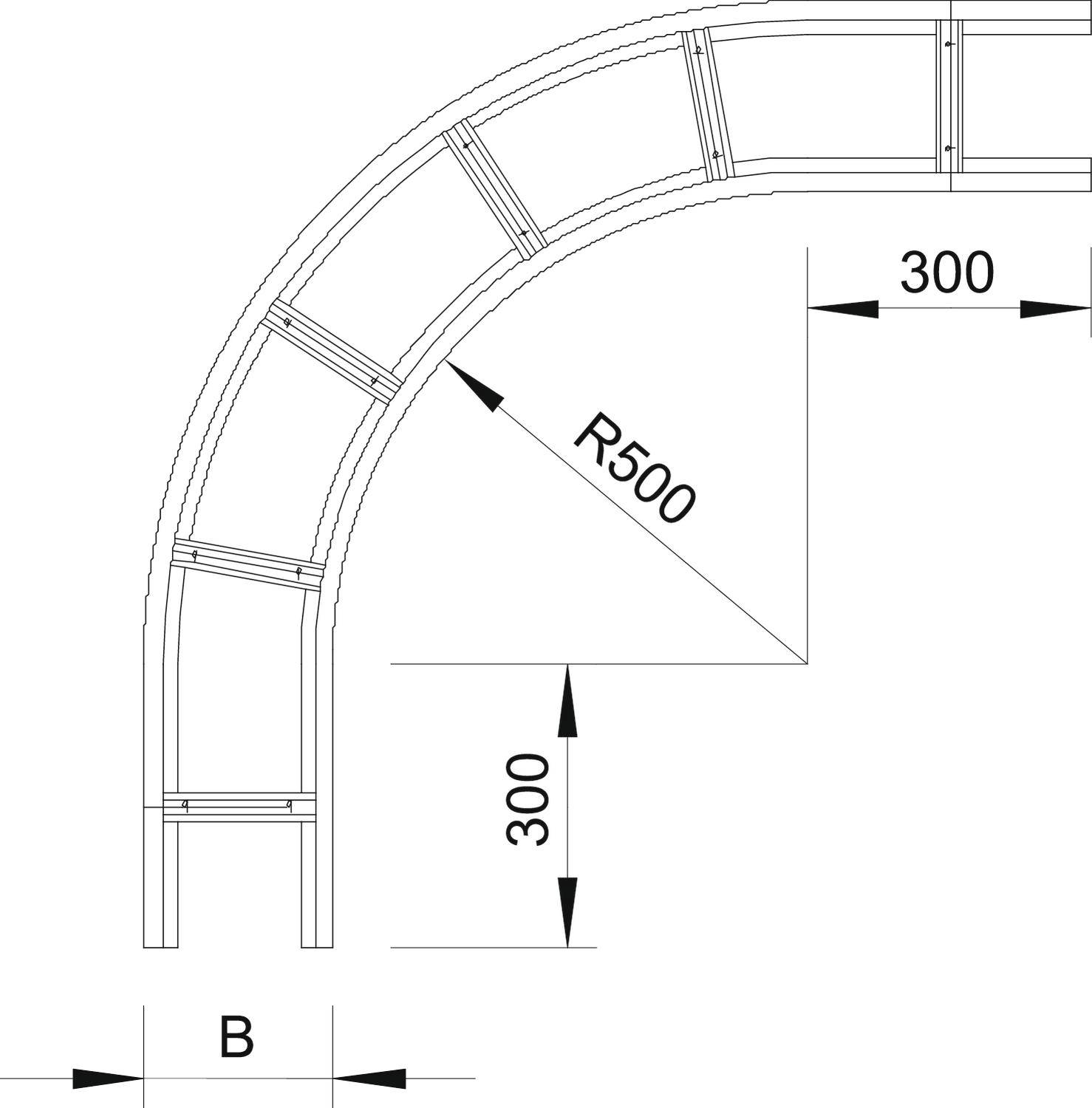

A technical diagram shows a curved structure with a radius of 500 mm. Arrows indicate dimensions of 300 mm.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Turn (angle): 90°
  • Inner radius 500 mm
  • Cable conductor width 500 mm
  • Cable conductor height 110 mm
  • Surface: Galvanized
  • Direction change: Horizontal
  • Side holes: no.
  • Wide-span design: Yes
  • Material: Steel
Product type

Bend

Type

Design of the rung: Profile unperforated
Side bar type: Profile (open)

Content

1 pc(s)

Dim

(W x H) 500 mm x 110 mm

Width

500 mm

Height

110 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2296915 OBO Bettermann 6312365 Bend 1 pc(s)

Description

Molded part arc 90° horizontal for all wide-span cable strips with a side height of 110 mm.
