OBO Bettermann 6312541 Bend 1 pc(s)

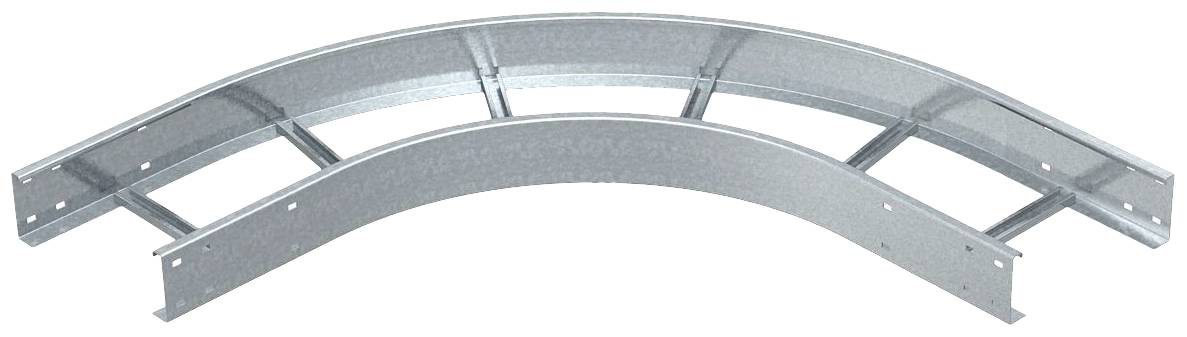

Two parallel curved metal cable trays used to support cable systems.

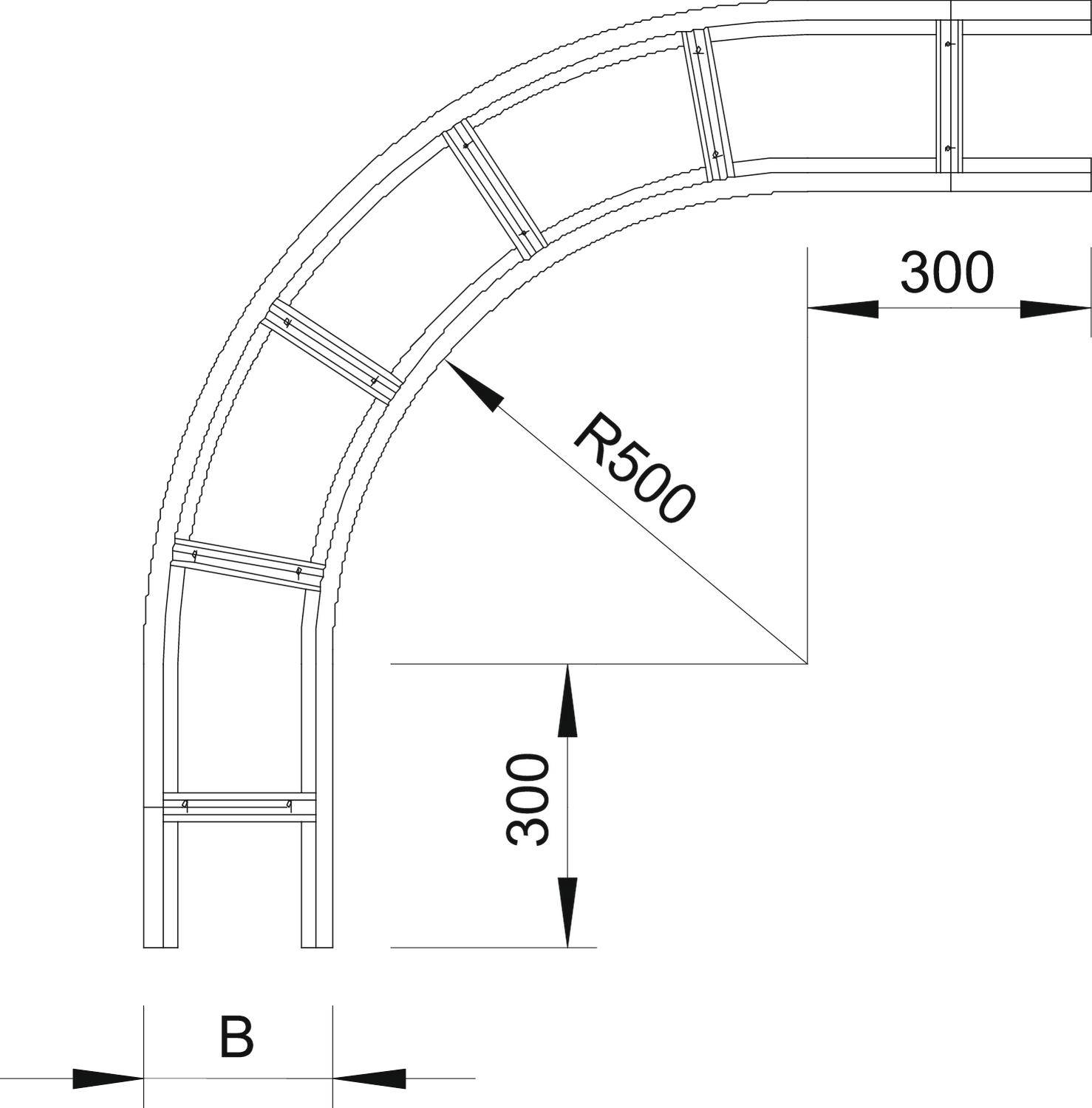

Technical drawing of a curved beam with radius 'R500' and segment spacing of '300'. Illustrates the beam's dimensions and spacing positions.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Turn (angle): 90°
  • Inner radius 500 mm
  • Cable conductor width 300 mm
  • Cable conductor height 110 mm
  • Direction change: Horizontal
  • Side holes: no.
  • Wide-span design: Yes
  • Material: Stainless steel
Product type

Bend

Type

Design of the rung: Profile unperforated

Content

1 pc(s)

Dim

(W x H) 300 mm x 110 mm

Width

300 mm

Height

110 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2296141 OBO Bettermann 6312541 Bend 1 pc(s)

Description

Molded part arc 90° horizontal for all wide-span cable strips with a side height of 110 mm.

This text is machine translated.
