OBO Bettermann 6312550 Bend 1 pc(s) Metal

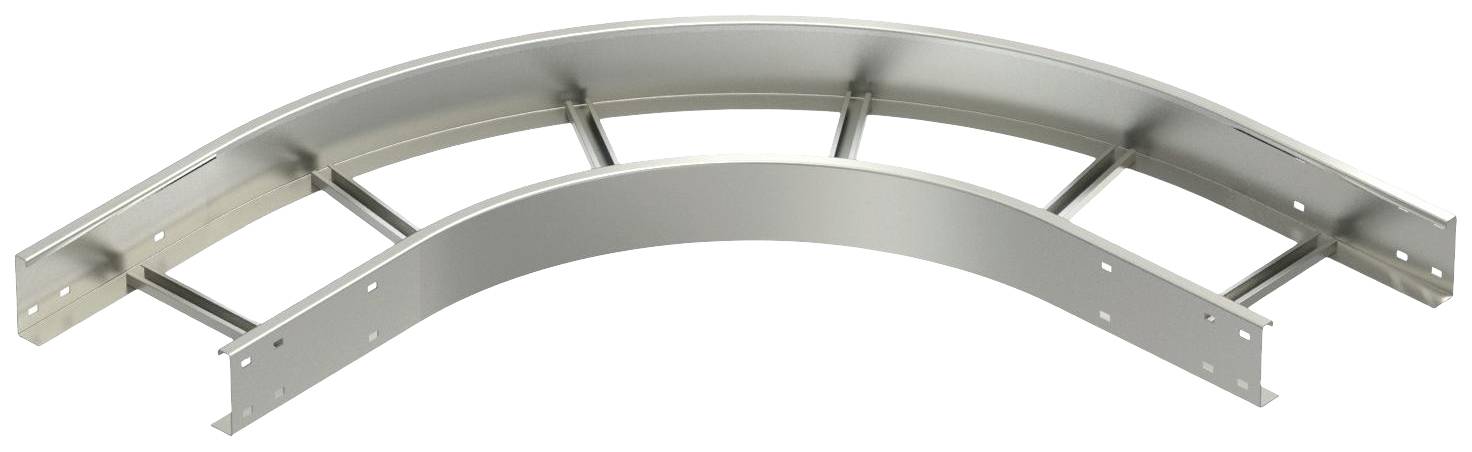

Metallic cable trunking in an arched form with multiple supports, providing structural integrity and stability. Suitable for building cabling.

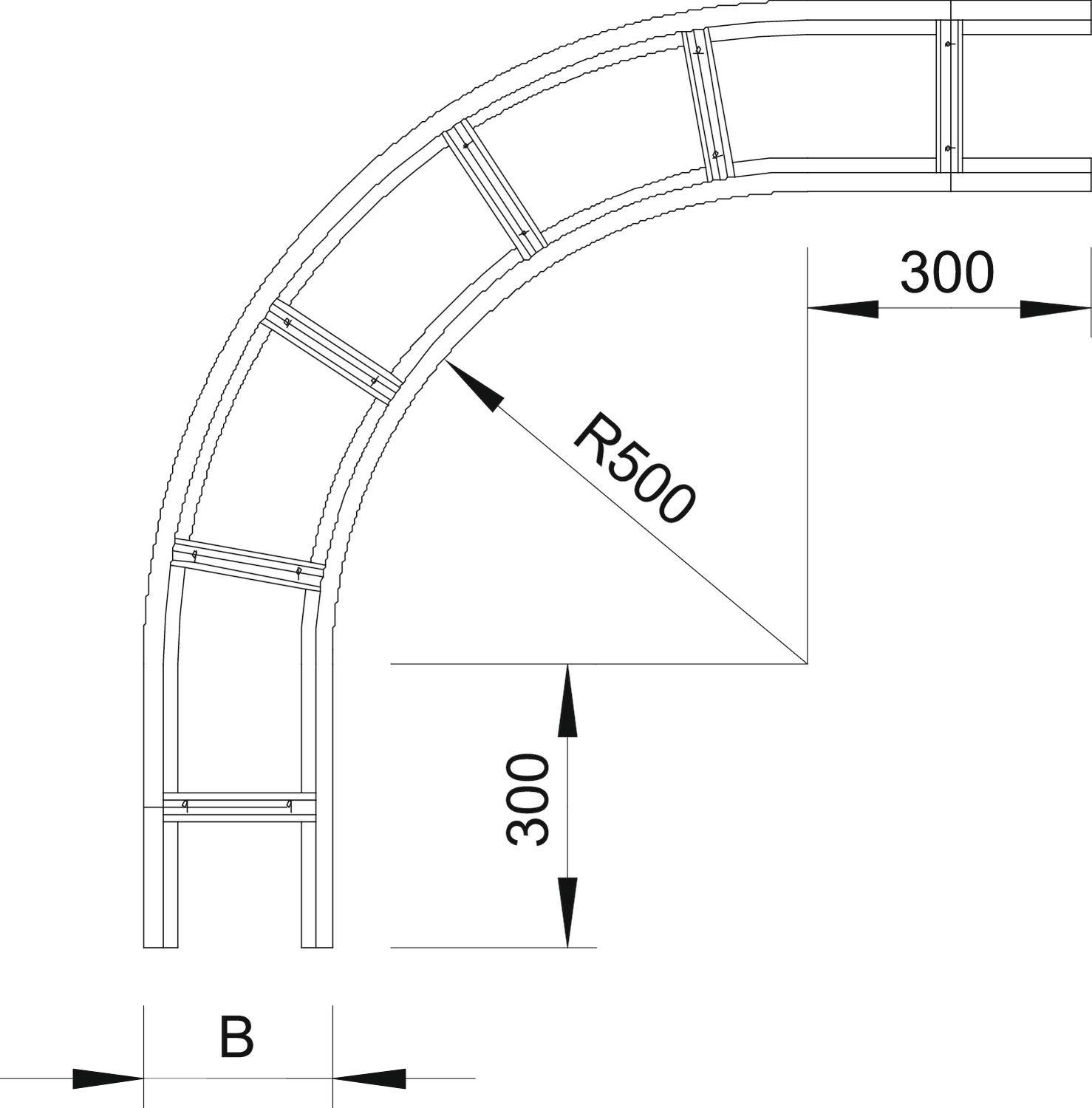

Technical drawing of a curved beam framework, radius 'R500', cross-beam spacing of '300mm'. Illustrates bending and dimensions.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Change the direction = horizontal
  • Side holes = No
  • Design of the rung = profile unpunched
  • Turn (angle) = 90°
  • Cable height = 110 mm
  • Cable conductor width = 200 mm
  • Inner radius=500mm
  • Wide clamping design = Yes
  • Suitable for function receives = No
  • Material = other
  • Stainless steel
  • Stained = No
  • Material good = rust-resistant steel
  • Surface = other
Product type

Bend

Content

1 pc(s)

Factory colour

Metal

Dim

(W x H) 200 mm x 110 mm

Width

200 mm

Height

110 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1960873 OBO Bettermann 6312550 Bend 1 pc(s) Metal

Description

Bow 90° for wide clamping cable wire 110 110 x 200, V4A
