OBO Bettermann 6312552 Bend 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

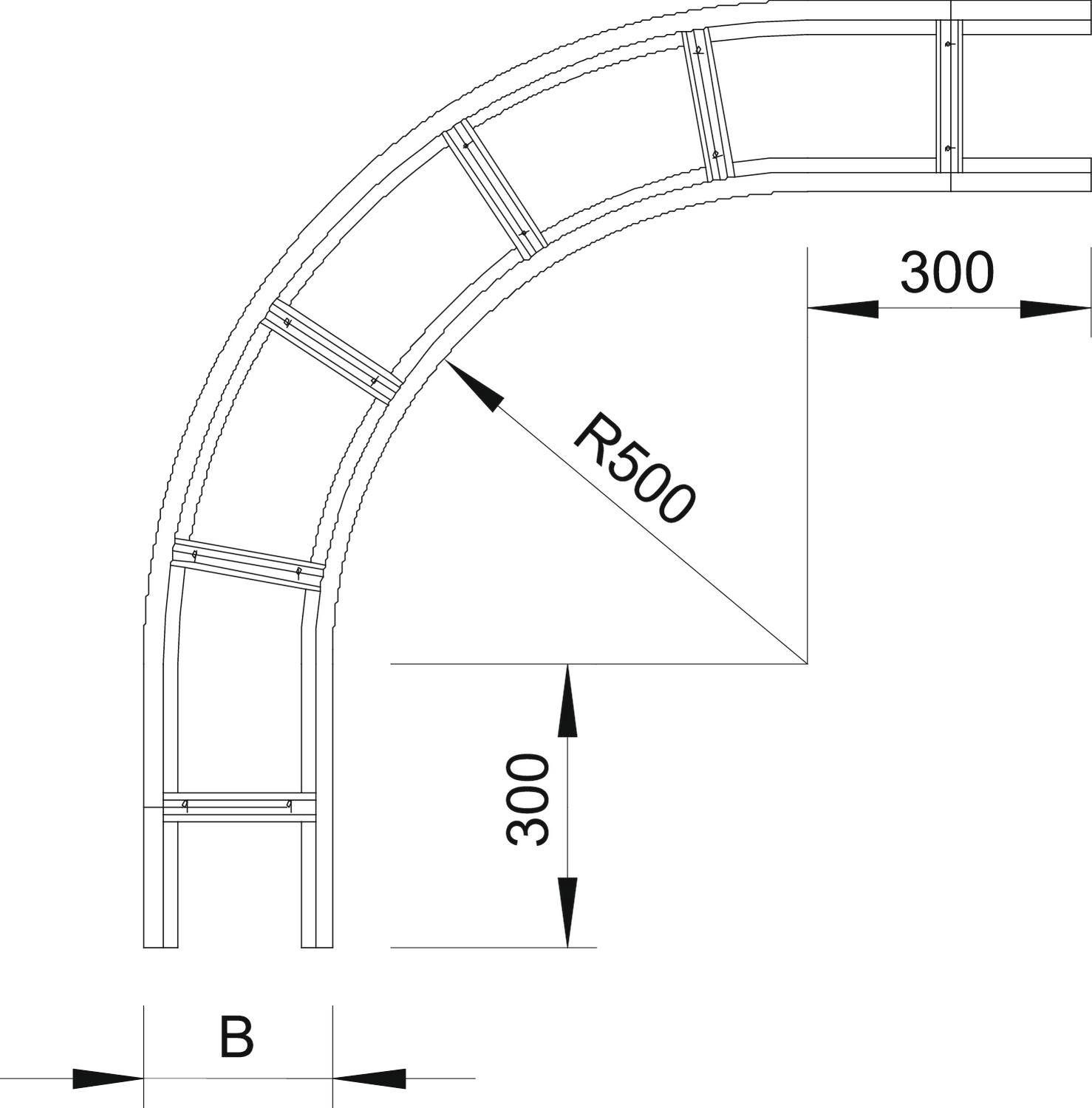

OBO Bettermann Vertr Arc 90° 110x300mm WLB 113 A4
Our service for you
Technical specifications
- Turn (angle): 90°
- Inner radius 500 mm
- Cable conductor width 300 mm
- Cable conductor height 110 mm
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: Yes
- Material quality: rust and acid-resistant steel
- Product type
Bend
- Type
Design of the rung: Profile unperforated
- Content
1 pc(s)
- Dim
(W x H) 300 mm x 110 mm
- Width
300 mm
- Height
110 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296626 OBO Bettermann 6312552 Bend 1 pc(s)
Description

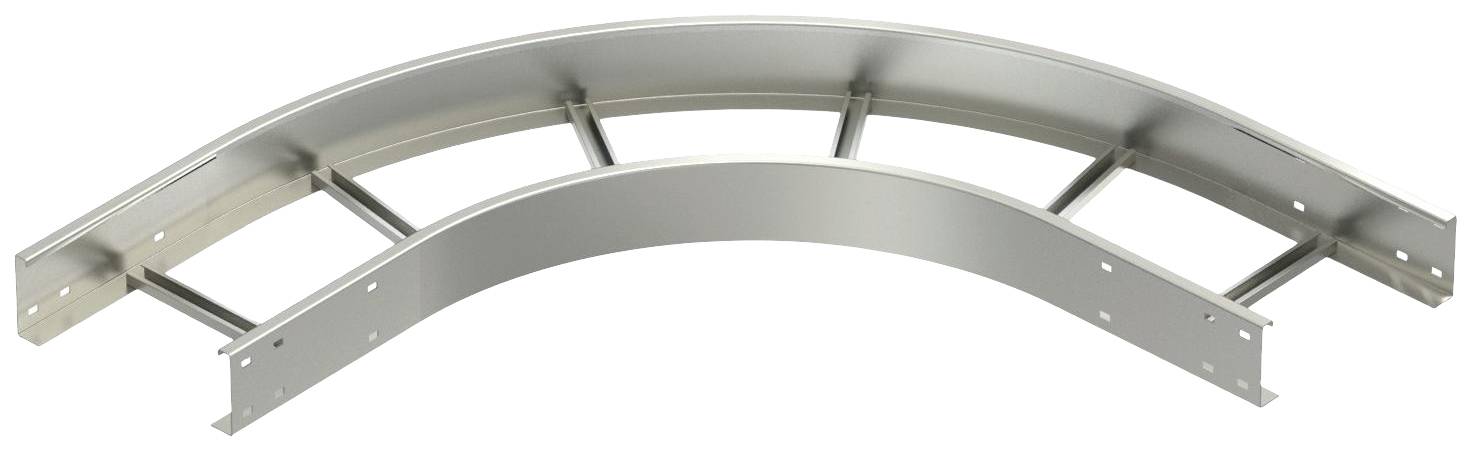

Molded part arc 90° horizontal for all wide-span cable strips with a side height of 110 mm.
