OBO Bettermann 6341378 U handle 1 pc(s) Metal

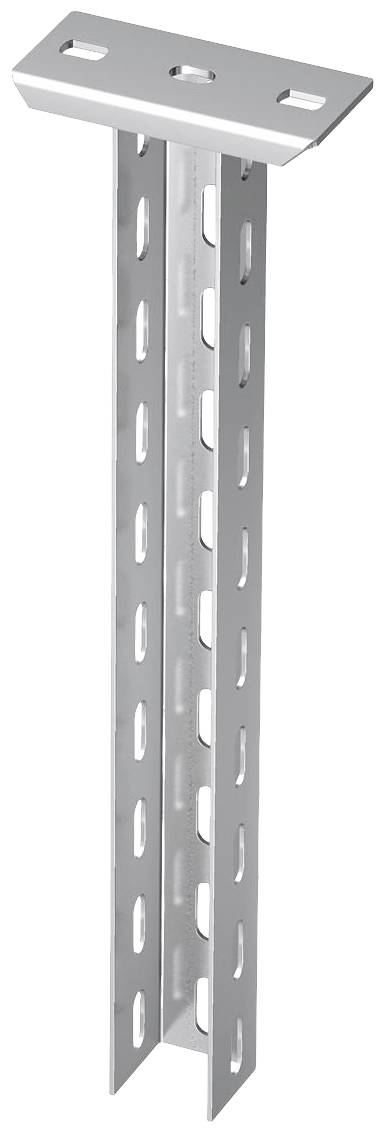

A steel mounting bracket with holes for wall mounting. The bracket is U-shaped and silver in colour.

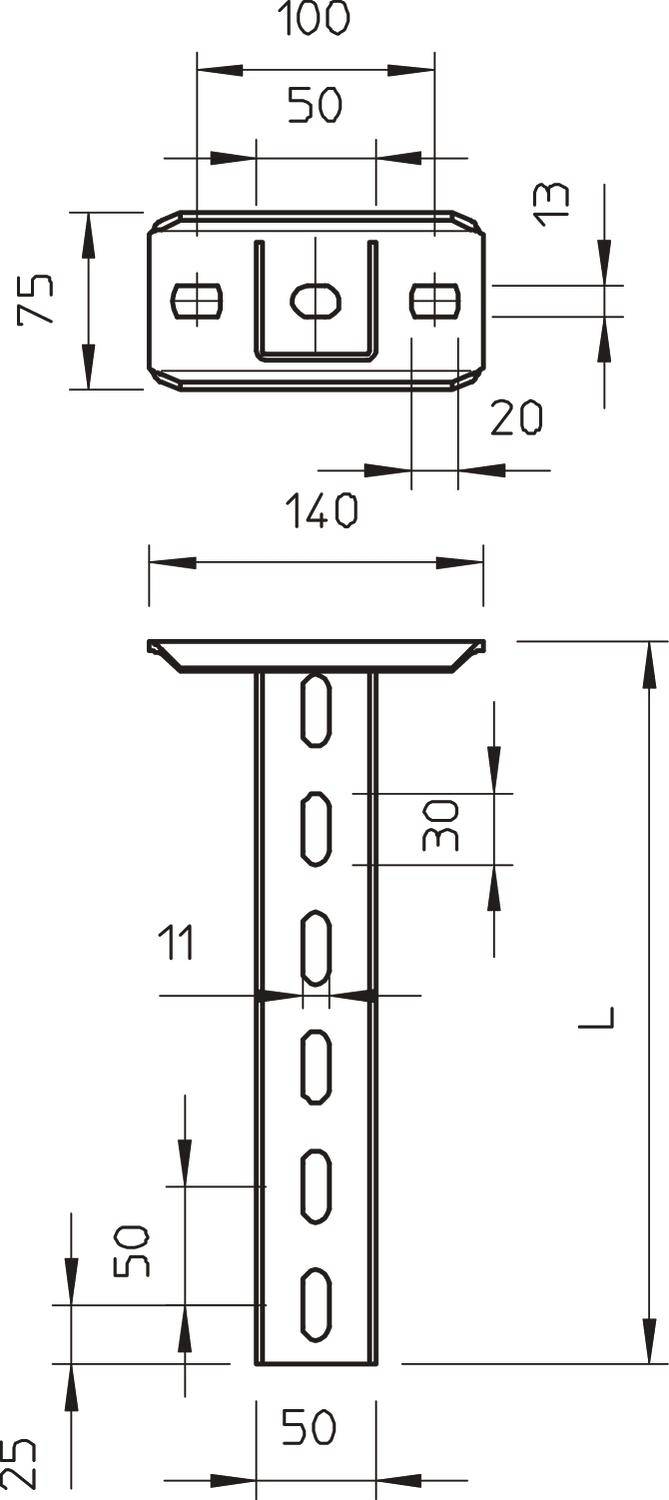

Technical drawing of a metal angle bracket with dimensions. Rectangular base, holes along a vertical leg. Dimensions indicated.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Length = 700 mm
  • Profile Width = 50 mm
  • Profile height = 50 mm
  • Design = U-profile
  • Material = rust free steel
  • Stainless steel
  • Stained = No
  • Material good = rust free steel (V2A)
  • Surface = other
Product type

U handle

Component

Cable duct support

Supplied length

700 mm

Content

1 pc(s)

Factory colour

Metal

Dim

(L x W x H) 700 x 50 x 50 mm

Length

700 mm

Width

50 mm

Height

50 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1967014 OBO Bettermann 6341378 U handle 1 pc(s) Metal

Description

Hanging stock with angeschweisster head plate, for mounting on horizontal concrete ceiling and steel carriers

This text is machine translated.
