OBO Bettermann 6357516 Fasteners (L x W) 116 mm x 100 mm 20 pc(s)
EAN:
Part number:
Item no:
Technical specifications

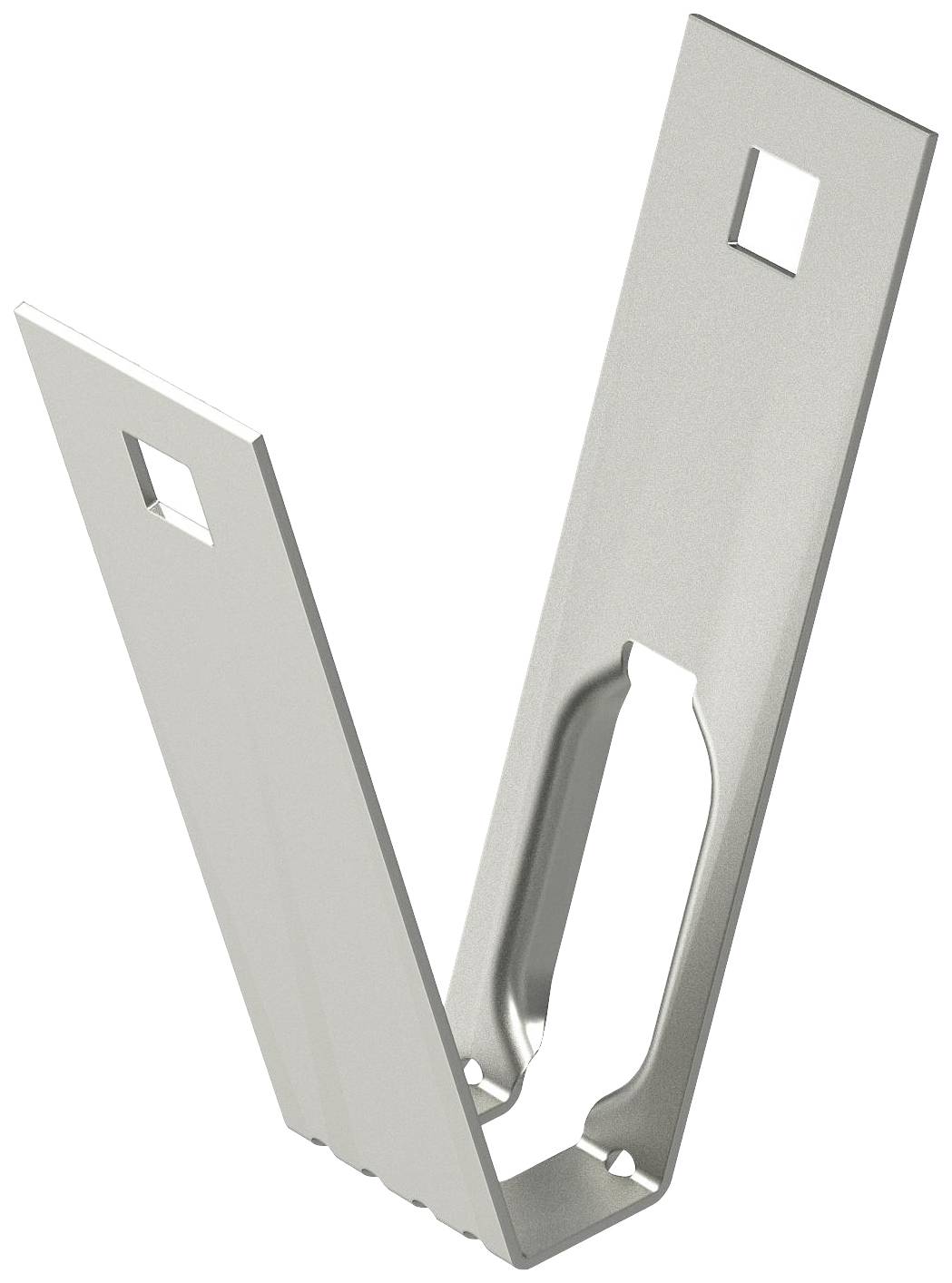

- Design = trapezium ceiling bracket (trapezoidal shape)
- Max. Drill diameter in steel = 11 mm
- Material = rust free steel
- Material good = 304 stainless steel (1.4301)
- Surface = untreated
- Adjustable height = No
- Attachment to the trapezoidal sheet metal with threaded rod = Yes
- With angeschweisster nut = No
- Product type
Fasteners
- Component
Clamp
- Supplied length
116 mm
- Content
20 pc(s)
- Dim

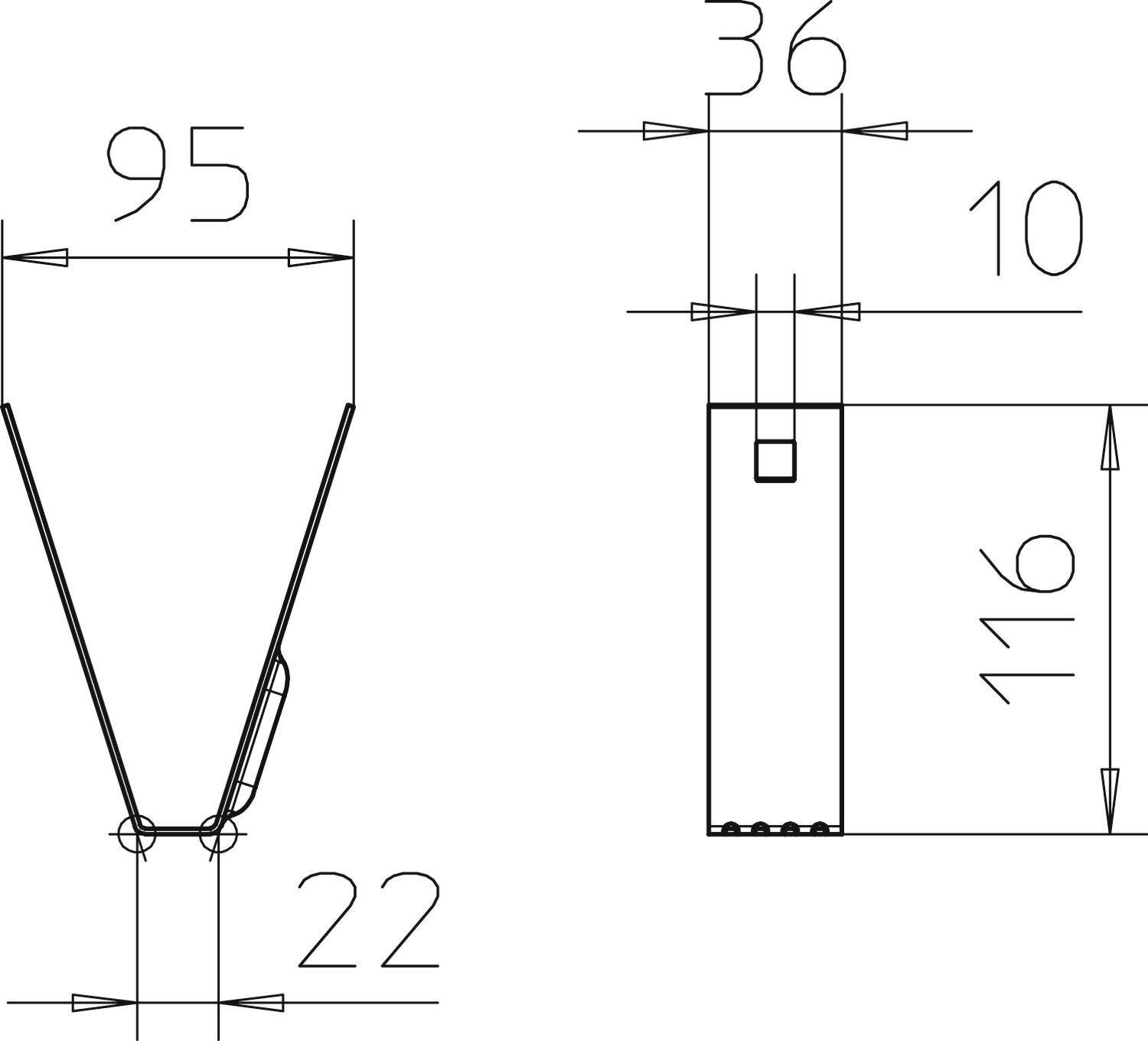

(L x W) 116 mm x 100 mm
- Length
116 mm
- Width
100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956714 OBO Bettermann 6357516 Fasteners (L x W) 116 mm x 100 mm 20 pc(s)
Description
Trapezium mounting the suspended mounting of cable channels of standard trapezoidal ceilings. The mounting is done, for example, by a lock or a hexagonal screw M 10 x 110, which is easily by the holes of the trapezoidal attachment and the ceiling can be inserted. Here is the statics of the trapezoidal sheet metal ceiling to be observed.
