OBO Bettermann 6479742 Cable ducting (L x W x H) 3 m x 300.00 mm x 60.00 mm 6 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Blind rivets
- Height: 60 mm
- Width 300 mm
- Length: 6000 mm
- Usable cross-section: 14800 mm²
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Other
- Colour: grey
- RAL number: 7035
- Weighs 2.96 kg/m.
- Product type
Cable ducting
- Content
6 m
- Factory colour
Grey
- Dim
(L x W x H) 3 m x 300.00 mm x 60.00 mm
- Length
3 m
- Width
300.00 mm
- Height
60.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406759 OBO Bettermann 6479742 Cable ducting (L x W x H) 3 m x 300.00 mm x 60.00 mm 6 m Grey
Description

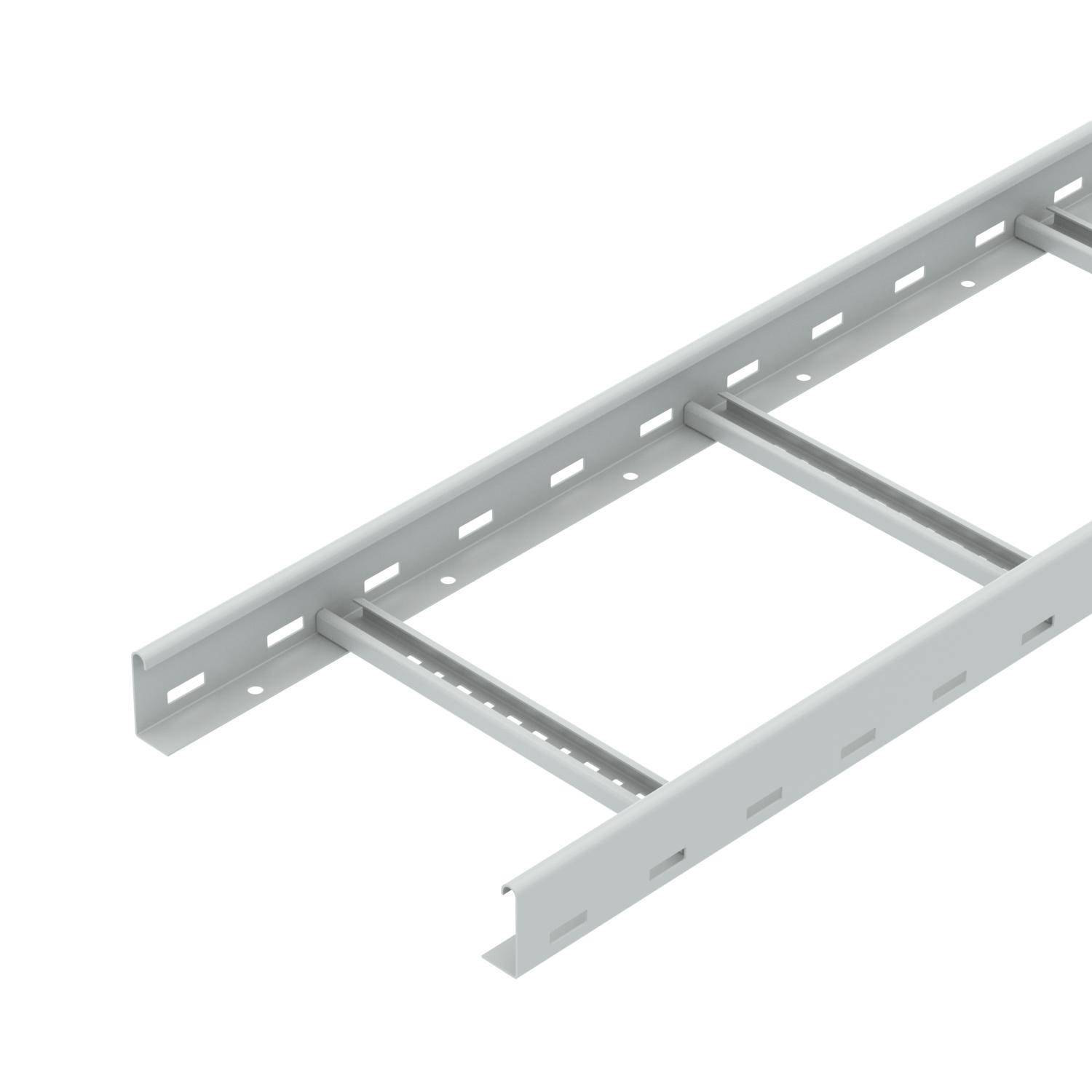

Cable cable trunking with perforated side spar at side height 60 mm with riveted open top C-profile rungs (version VS).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2 x 6 m cable conductor
