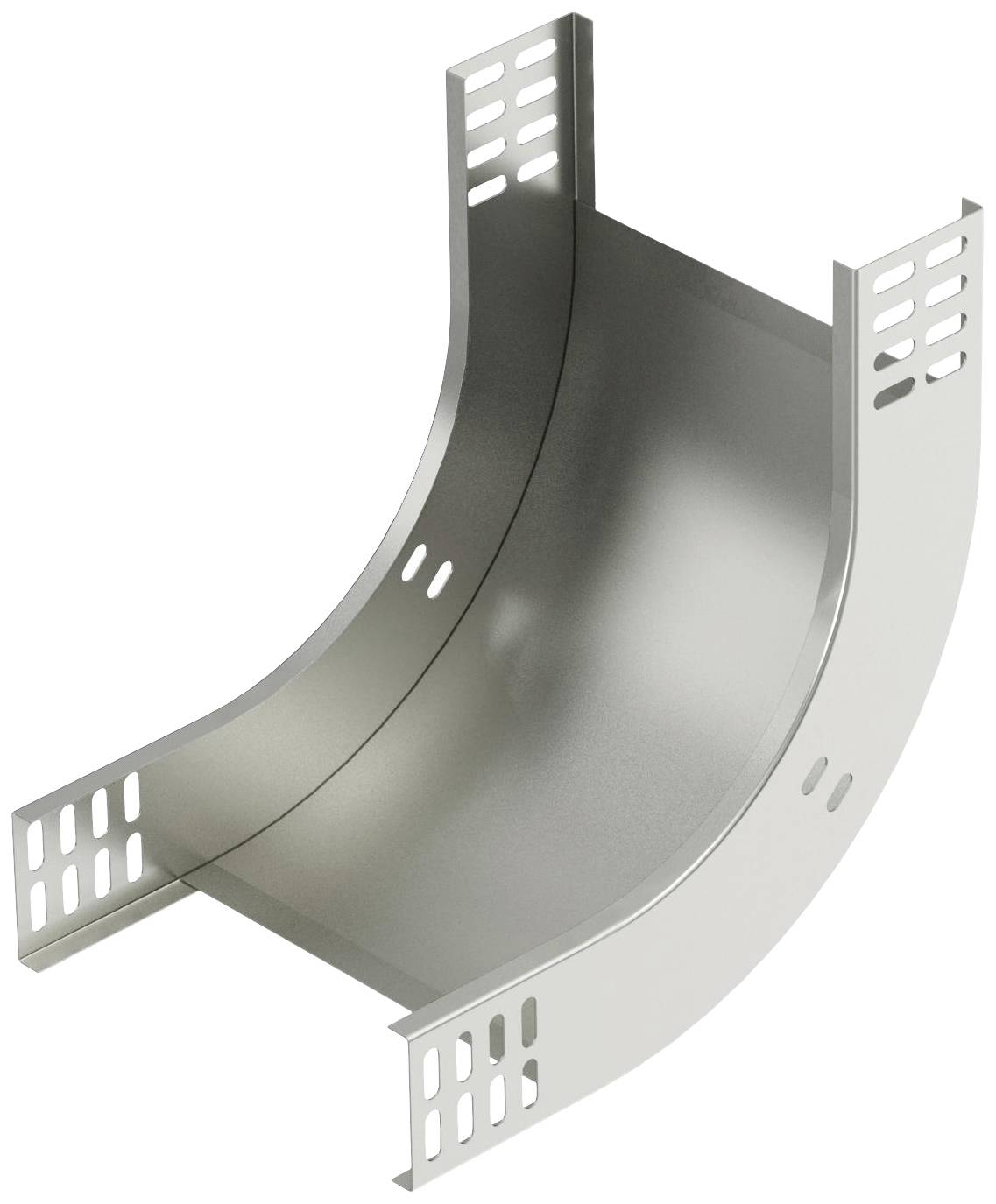

OBO Bettermann 7006720 Bend (W x H) 100 mm x 60 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Turn (angle) = 90°
- Design = joint sheet complete
- Cable channels height = 60 mm
- Cable channels width = 100 mm
- Version = without connector
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = Yes
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(L x W x H) 100 x 100 x 60 mm
- Length
100 mm
- Width
100 mm
- Height
60 mm
- Depth
60 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959478 OBO Bettermann 7006720 Bend (W x H) 100 mm x 60 mm 1 pc(s) Metal
Description
The vertical sheet is pushed over the end of the cable channel and screwed. Mounting materials are to be ordered separately
