1/2
OBO Bettermann 7007353 Bend (W x H) 150 mm x 110 mm 1 pc(s) Metal
EAN:
Part number:
Item no:

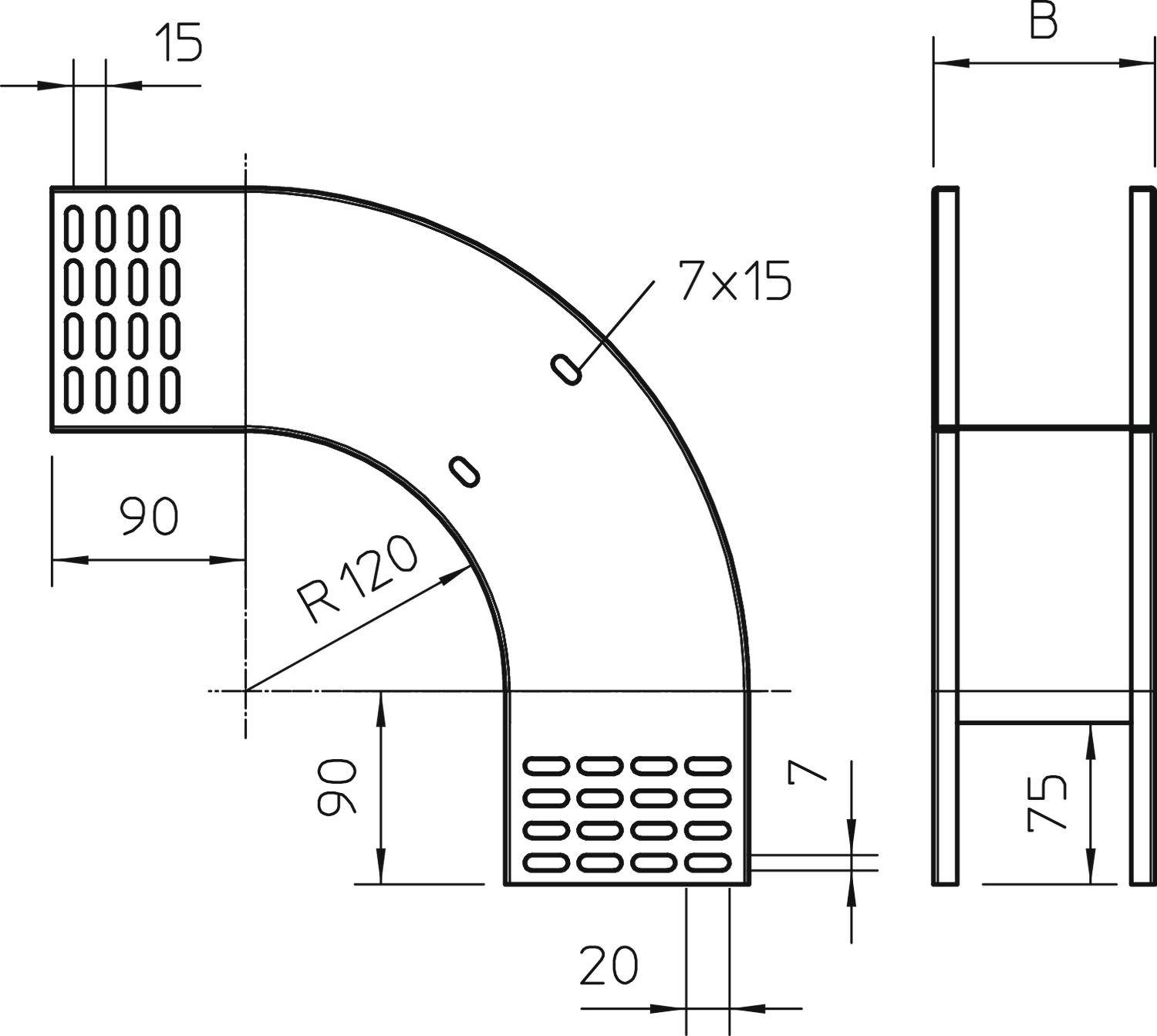

Technical specifications
- Change the direction = vertically falling
- Turn (angle) = 90°
- Inner radius = 120 mm
- Cable channels height = 110 mm
- Cable channels width = 150 mm
- Side holes = Yes
- Suitable for function receives = No
- Material = Steel
- Surface = diving hot-dip galvanised
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H x D) 150 x 110 x 150 mm
- Width
150 mm
- Height
110 mm
- Depth
150 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961932 OBO Bettermann 7007353 Bend (W x H) 150 mm x 110 mm 1 pc(s) Metal
Description

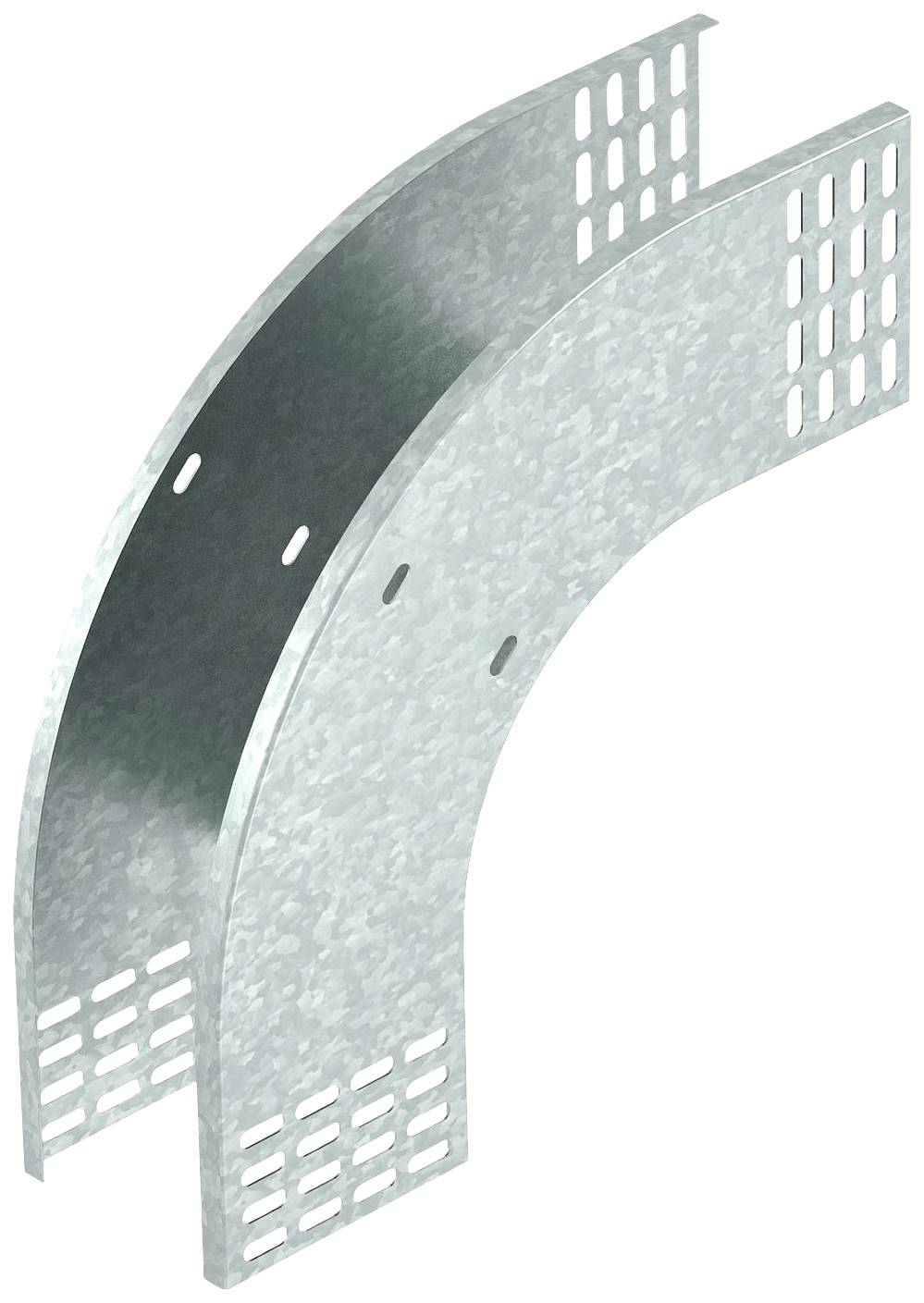

One-piece, closed vertical elbow 90° in falling and circular design for all types of cable channels with the page height 110 mm.
