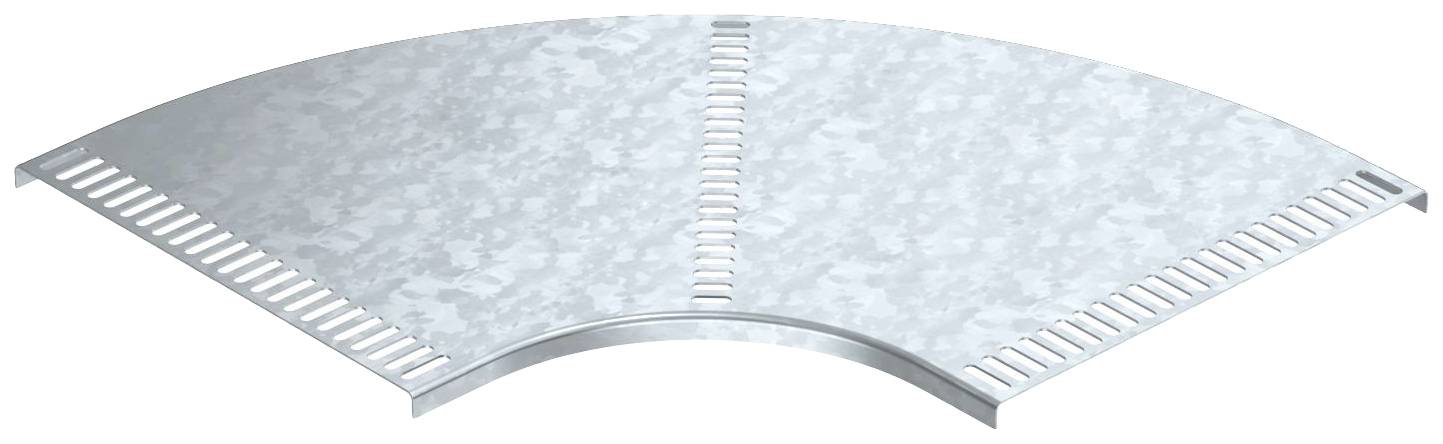

OBO Bettermann 7061250 Bend (W x H) 125 mm x 15 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Turn (angle) = 90°
- Cable channels height = 15 mm
- Cable channels width = 125 mm
- Material thickness = 1.25 mm
- Side holes = No
- Mounting holes in the Ground = Yes
- NATO-Hole Pattern = Yes
- Version = without connector
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = diving hot-dip galvanised
- Product type
Bend
- Component
Small angle bracket
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 125 mm x 15 mm
- Width
125 mm
- Height
15 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963646 OBO Bettermann 7061250 Bend (W x H) 125 mm x 15 mm 1 pc(s) Metal
Description
Bow 90° horizontal for all shipbuilding cable channels to marine standard with the page height 15 mm.
