OBO Bettermann 7075308 Bend 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

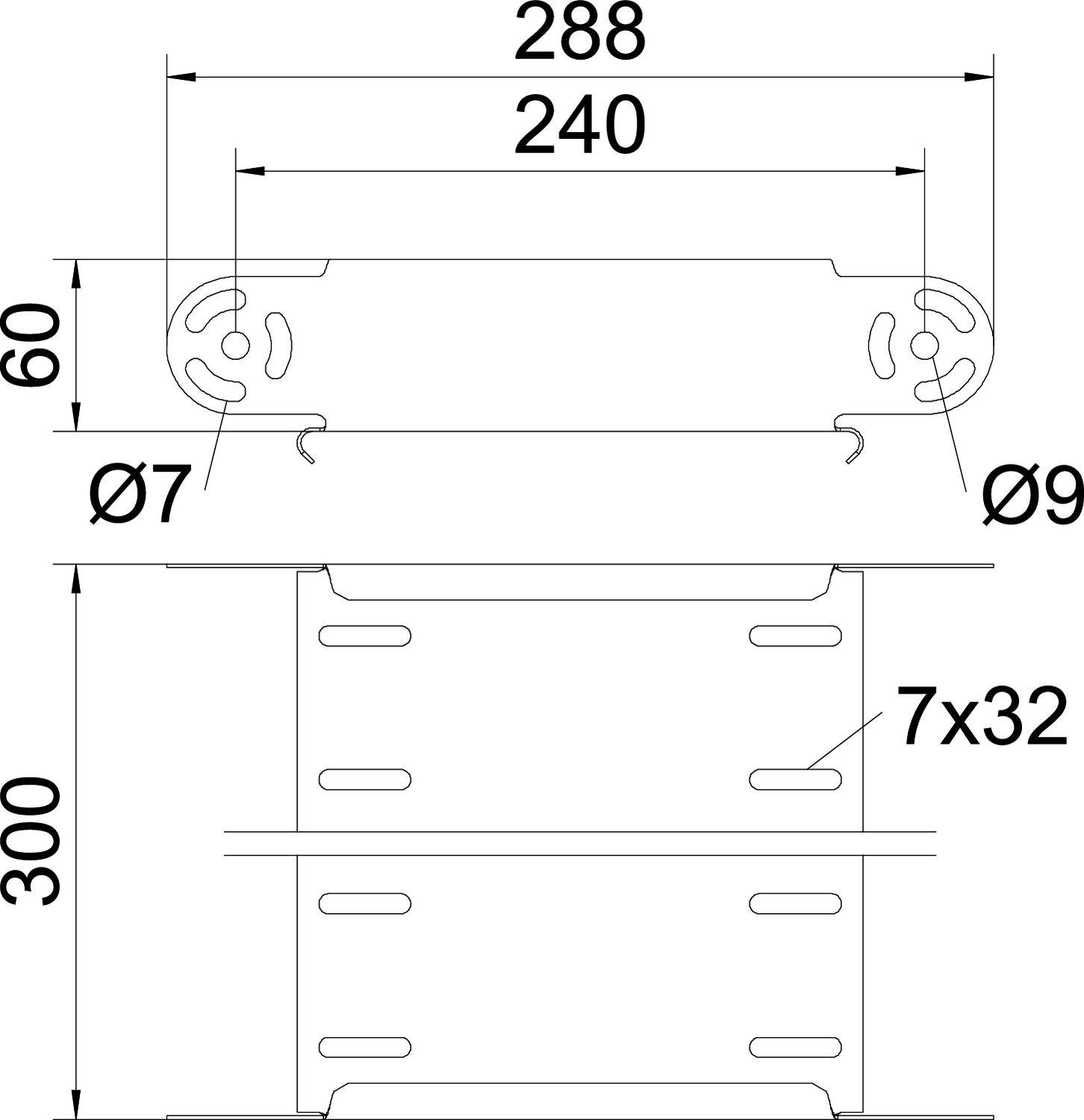

- Design: Articulated arch element
- Cable gutter width 300 mm
- Cable gutter height 60 mm
- Material thickness 1 mm.
- Mounting hole in the floor: no.
- Surface: Hot dip galvanized
- Side holes: no.
- Wide-span design: no.
- Material: Steel
- Product type
Bend
- Type
Without connectors
- Content
1 pc(s)
- Dim
(W x H) 300 mm x 60 mm
- Width
300 mm
- Height
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293268 OBO Bettermann 7075308 Bend 1 pc(s)
Description

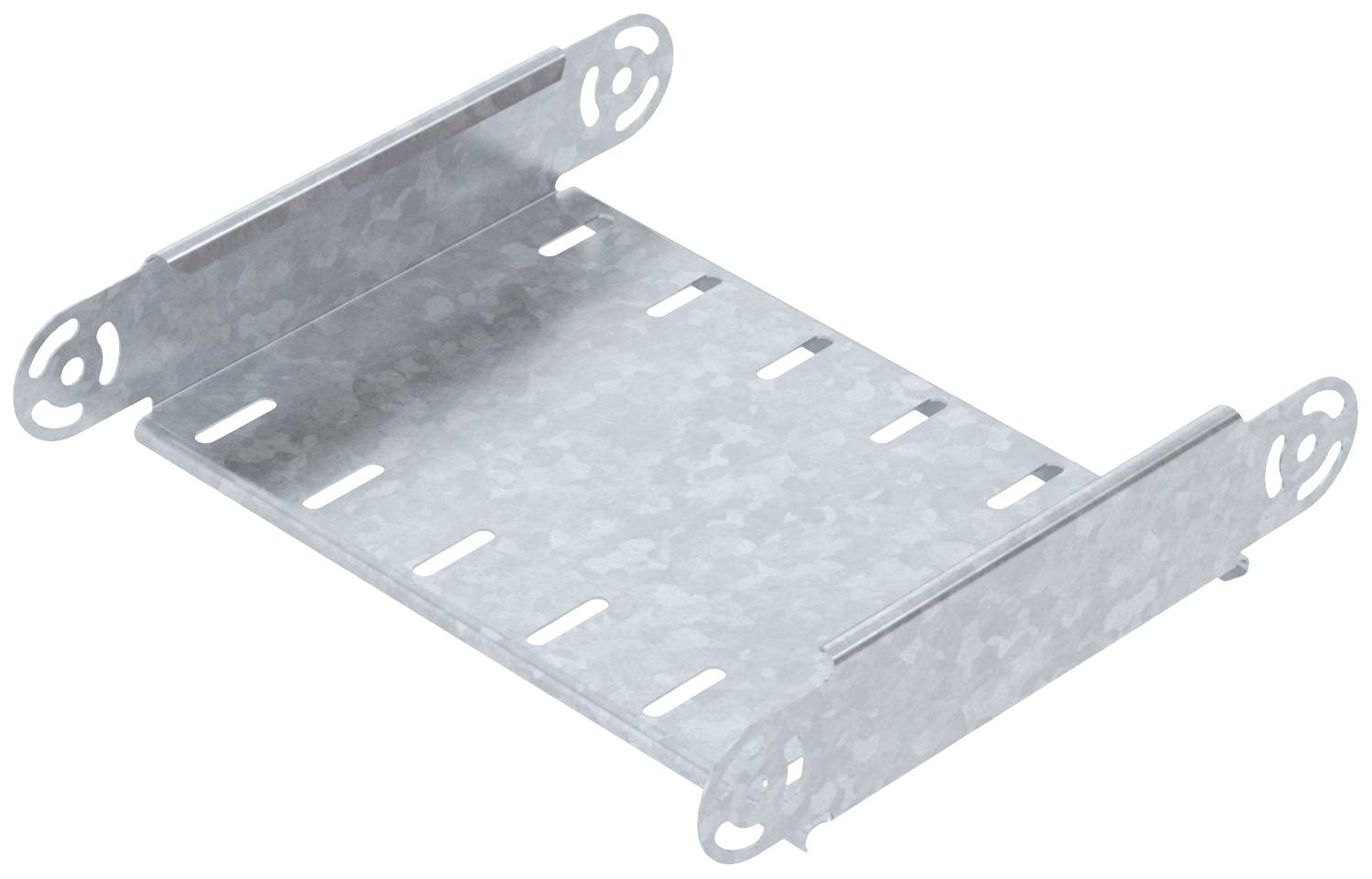

Articulated arc element vertical for all types of cable channels with a side height of 60 mm. The vertical arc element is used to bridge height offsets. Flexible vertical arcs can be made from at least 2 articulated arc elements. With top-mounted side spar for reinforcement and edge protection. The floor plate is rounded to protect cables and wires.
