OBO Bettermann 7097026 Cable ducting (L x W x H) 2000 x 75 x 25 mm 1 pc(s) Stone grey
EAN:
Part number:
Item no:
Technical specifications
- Execution of the Seitenholms = Low Profile
- Side holes = Yes
- Design of the rung = profile punched
- Mounting the rung = welded
- Height = 25 mm
- Width = 75 mm
- Length = 2000 mm
- Rungs center-to-center distance = 250 mm
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Primed surface =
- Color = stone gray
- Product type
Cable ducting
- Content
1 pc(s)
- Factory colour
Stone grey
- Dim
(L x W x H) 2000 x 75 x 25 mm
- Length
2000 mm
- Width
75 mm
- Height
25 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955583 OBO Bettermann 7097026 Cable ducting (L x W x H) 2000 x 75 x 25 mm 1 pc(s) Stone grey
Description

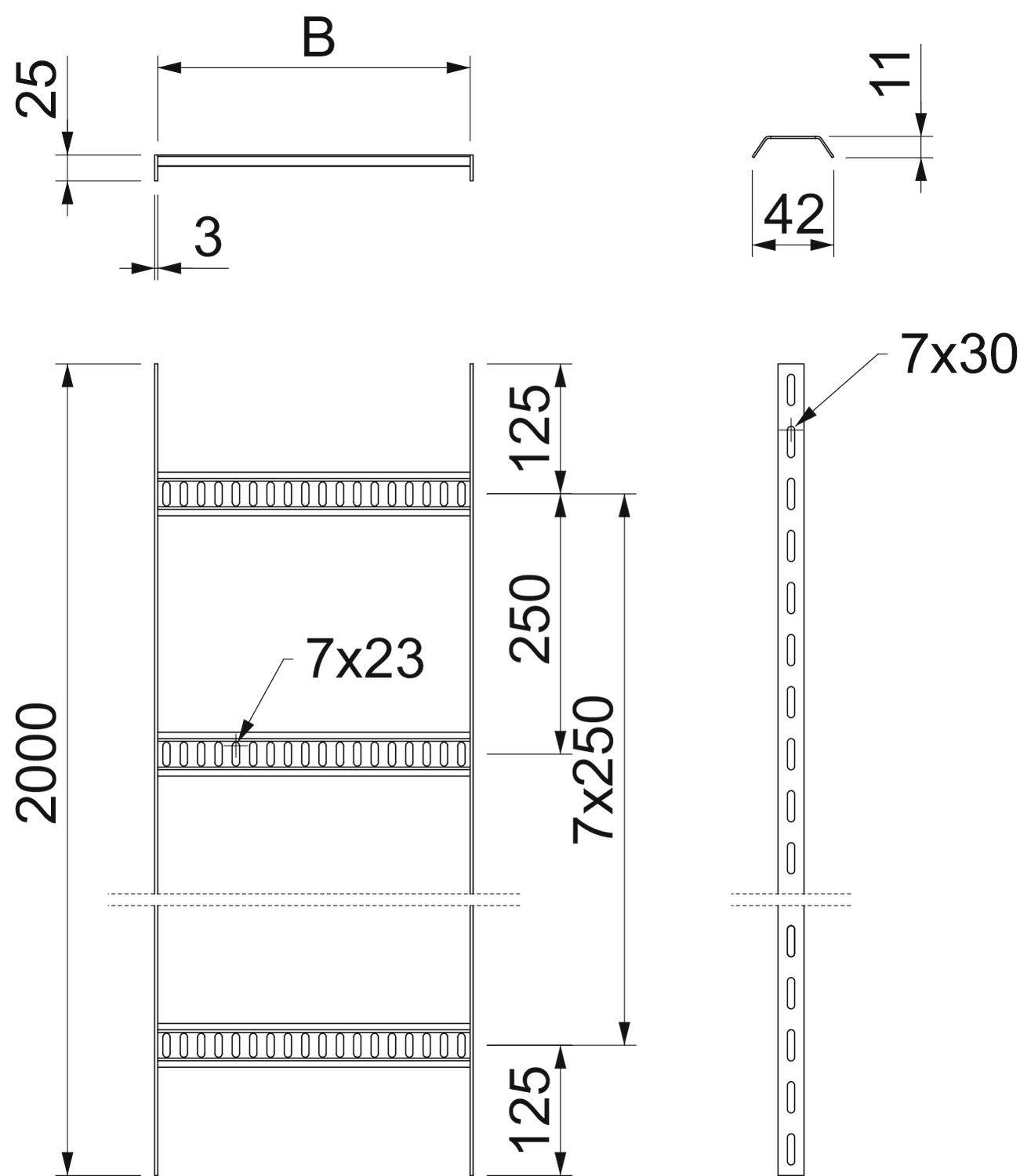

Shipbuilding cable conductors with punched side pillar in the page height 25 mm with welded, down open, perforated trapezoidal rungs. Load tested according to IEC in combination with connector type SLV. SIGMA WELD welding primer type 199, also available in white. The Shipbuilding cable conductor including molded parts is available on request also available in stainless steel. Powder coating according to RAL-colors is possible.
This text is machine translated.
This text is machine translated.
