OBO Bettermann 7097263 Cable ducting (L x W x H) 3 m x 500.00 mm x 40.00 mm 3 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 40 mm
- Width 500 mm
- Length: 3000 mm
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Primed
- Colour: grey
- Weight: 4.32 kg / m
- Product type
Cable ducting
- Content
3 m
- Factory colour
Grey
- Dim
(L x W x H) 3 m x 500.00 mm x 40.00 mm
- Length
3 m
- Width
500.00 mm
- Height
40.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406567 OBO Bettermann 7097263 Cable ducting (L x W x H) 3 m x 500.00 mm x 40.00 mm 3 m Grey
Description

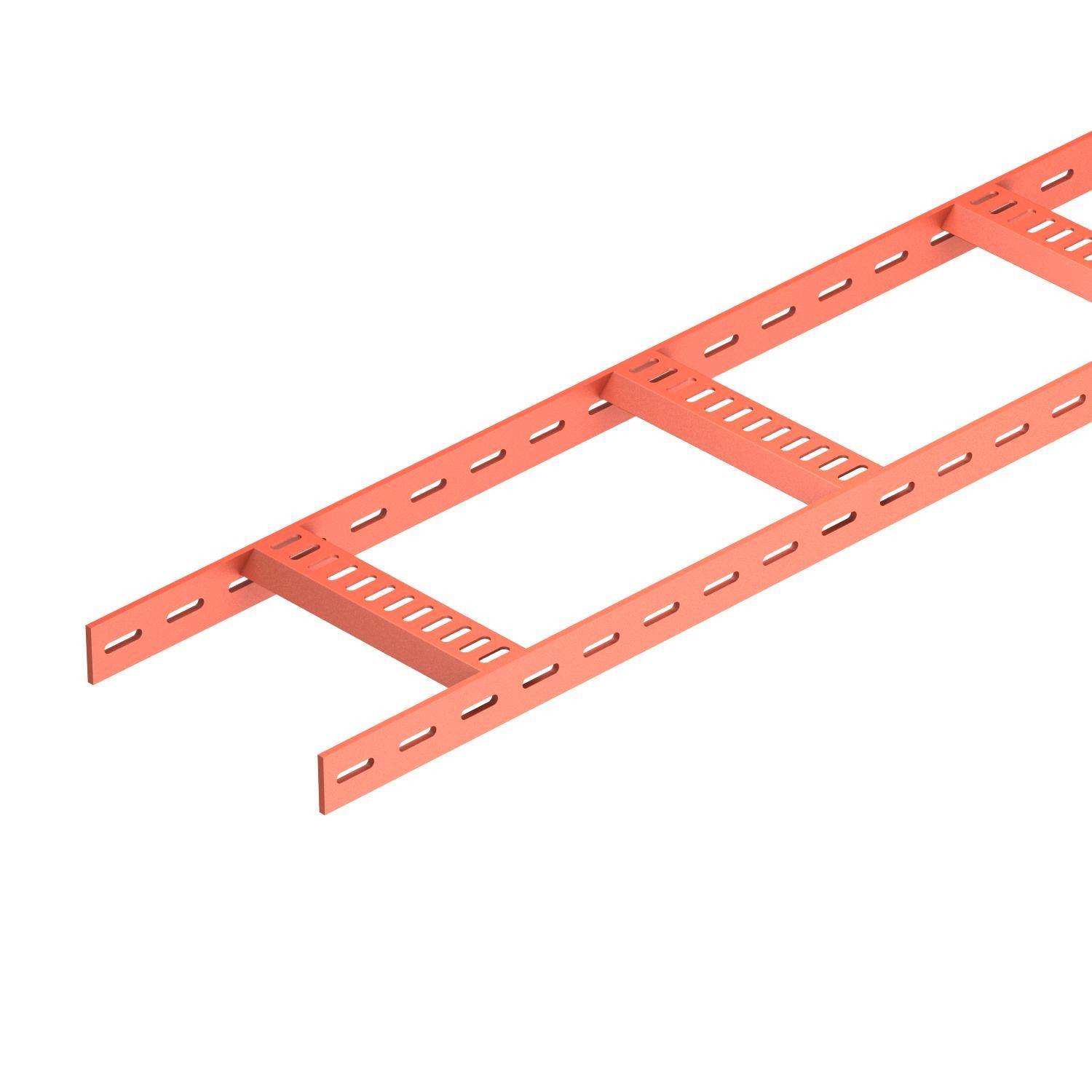

Ship building cable ladder with perforated side spar in the side height 40 mm with welded, open downward, perforated trapezoid rungs. Load tested according to IEC in combination with connector type SLV. Welding priming type Sigma-WELD 199.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
