OBO Bettermann 7098042 Cable ducting (L x W x H) 3 m x 500.00 mm x 35.00 mm 3 m
EAN:
Part number:
Item no:

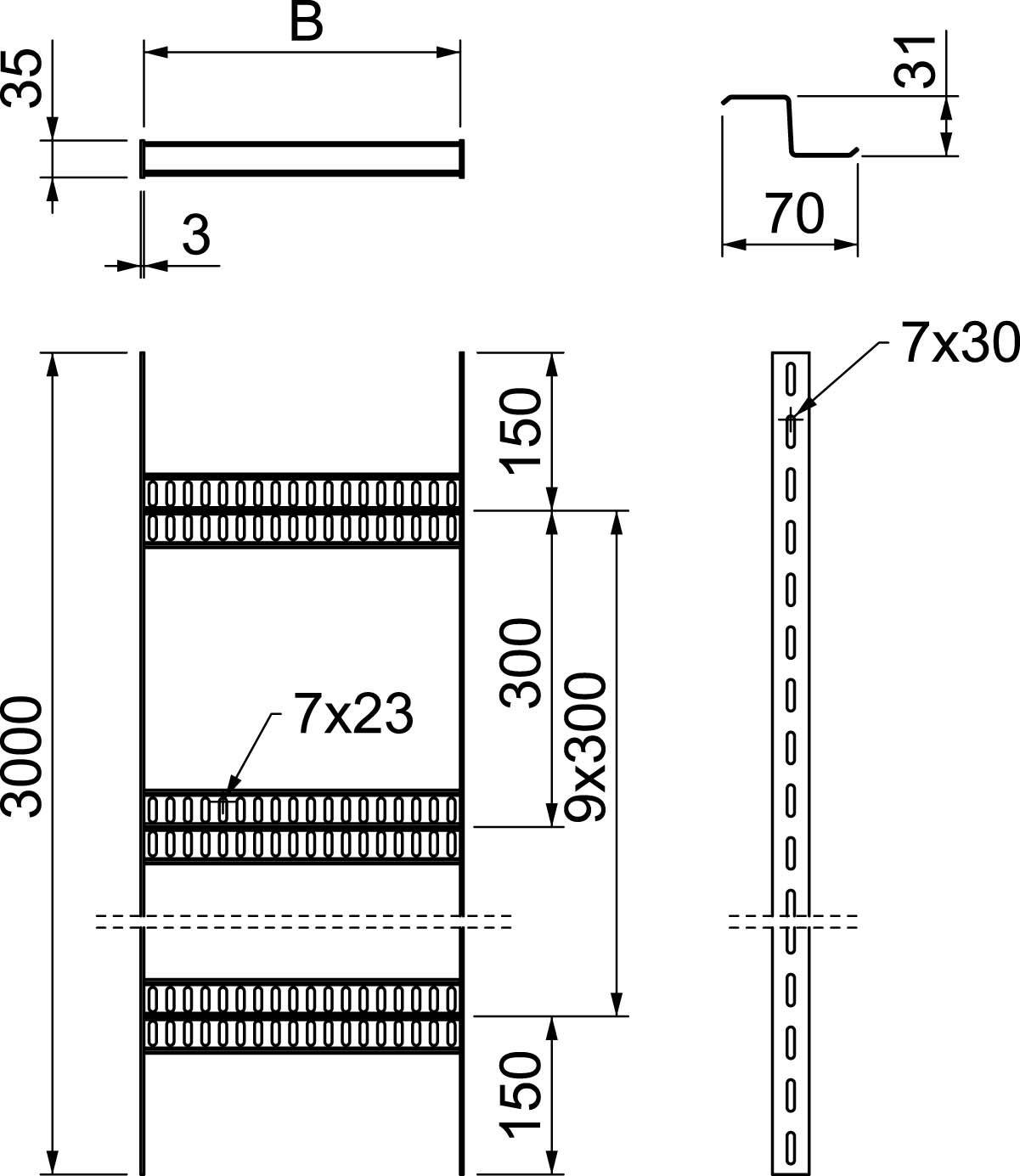

Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 35 mm
- Width 500 mm
- Length: 3000 mm
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Primed
- Weight: 2.5 kg / m
- Product type
Cable ducting
- Content
3 m
- Dim
(L x W x H) 3 m x 500.00 mm x 35.00 mm
- Length
3 m
- Width
500.00 mm
- Height
35.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406733 OBO Bettermann 7098042 Cable ducting (L x W x H) 3 m x 500.00 mm x 35.00 mm 3 m
Description

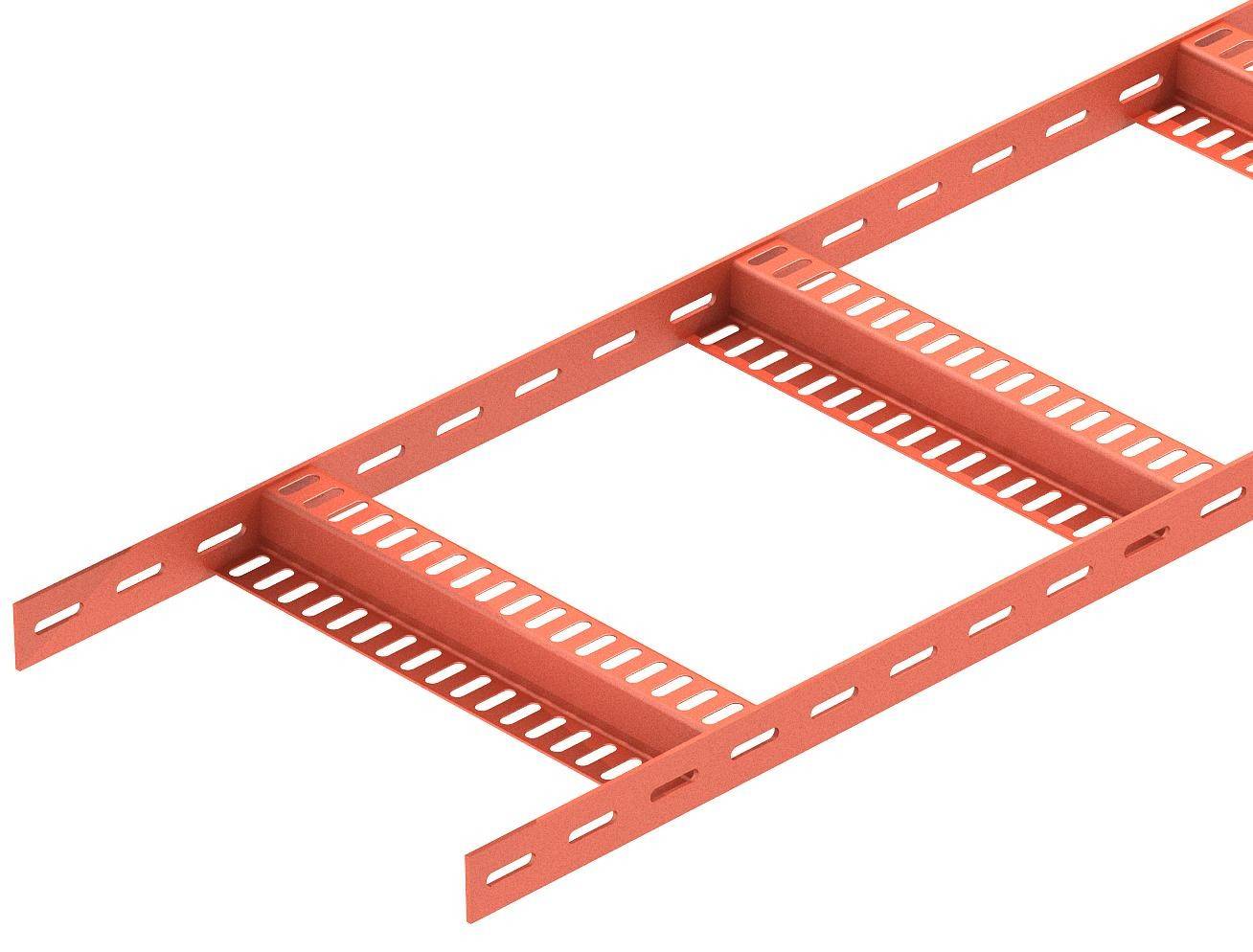

Ship cable guide, light design, with perforated side spar in the side height 35 mm with welded, perforated Z-sections. Load tested according to IEC in combination with connector type SLV. Welding priming type Sigma-WELD 199, also available in white.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
