OBO Bettermann 7098066 Cable ducting (L x W x H) 3 m x 200.00 mm x 35.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 35 mm
- Width 200 mm
- Length: 3000 mm
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Stainless steel
- Material quality: Stainless steel 304 (1.4301)
- Surface protection: Untreated
- Weighs 1.88 kg/m.
- Product type
Cable ducting
- Content
3 m
- Dim
(L x W x H) 3 m x 200.00 mm x 35.00 mm
- Length
3 m
- Width
200.00 mm
- Height
35.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406929 OBO Bettermann 7098066 Cable ducting (L x W x H) 3 m x 200.00 mm x 35.00 mm 3 m
Description

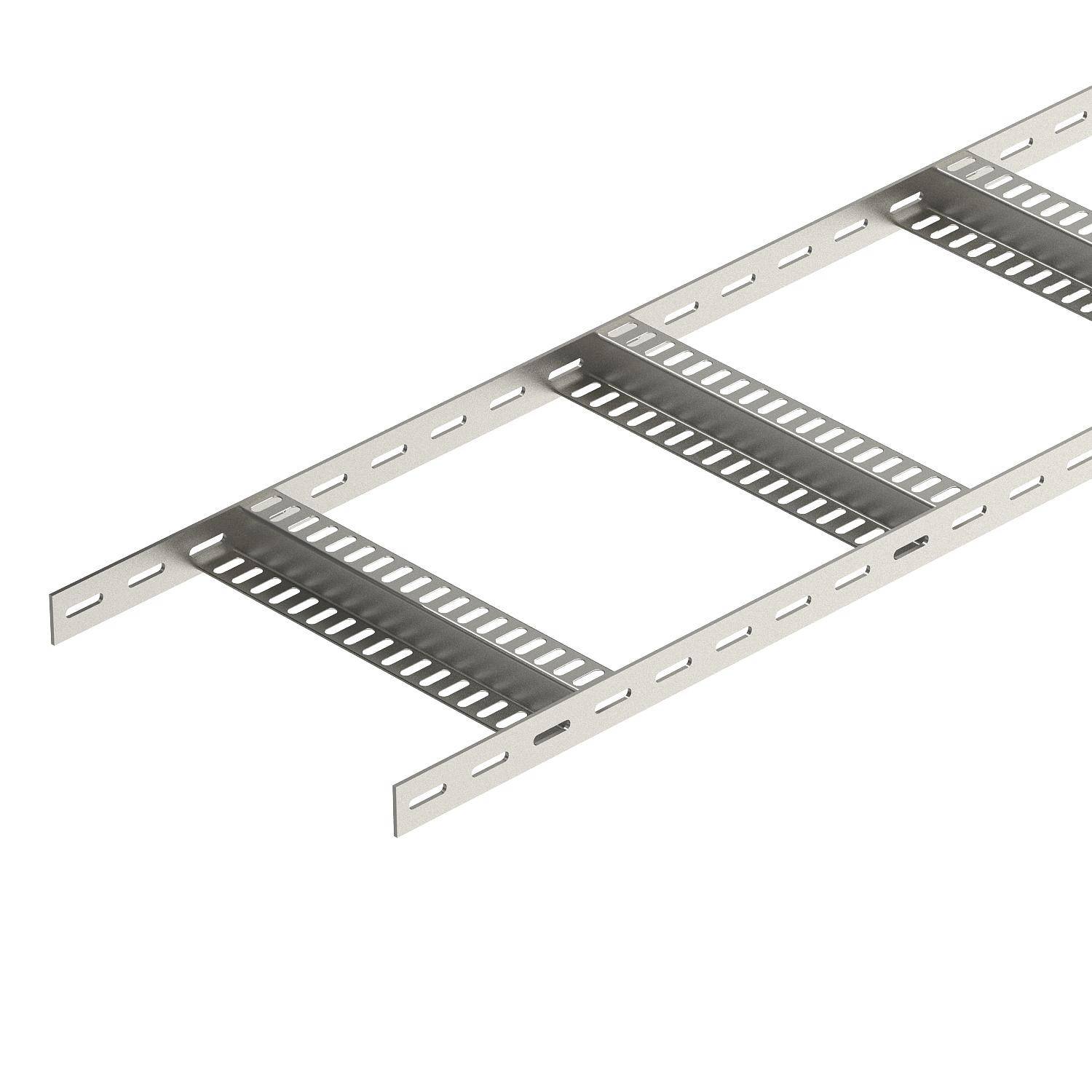

Ship cable guide, light design, with perforated side spar in the side height 35 mm with welded, perforated Z-sections. Load tested according to IEC in combination with connector type SLV.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
