OBO Bettermann 7098634 Bend 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Execution of the Seitenholms = Low Profile
- Side holes = No
- Design of the rung = profile punched
- Turn (angle) = 90°
- Cable height = 25 mm
- Cable conductor width = 200 mm
- Inner radius = 250 mm
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Surface = diving hot-dip galvanised
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 200 mm x 25 mm
- Width
200 mm
- Height
25 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962384 OBO Bettermann 7098634 Bend 1 pc(s) Metal
Description

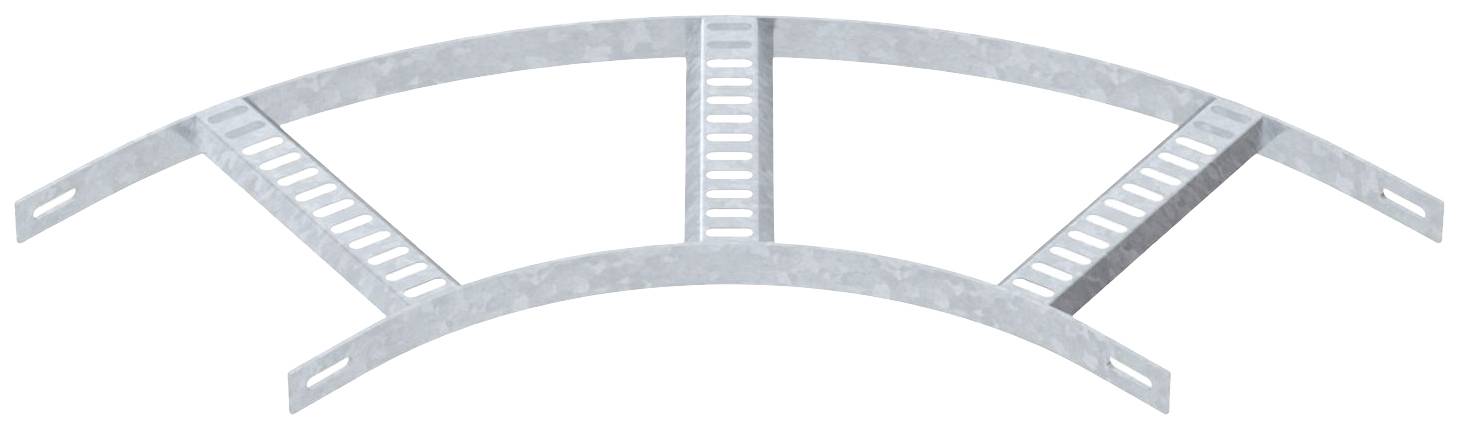

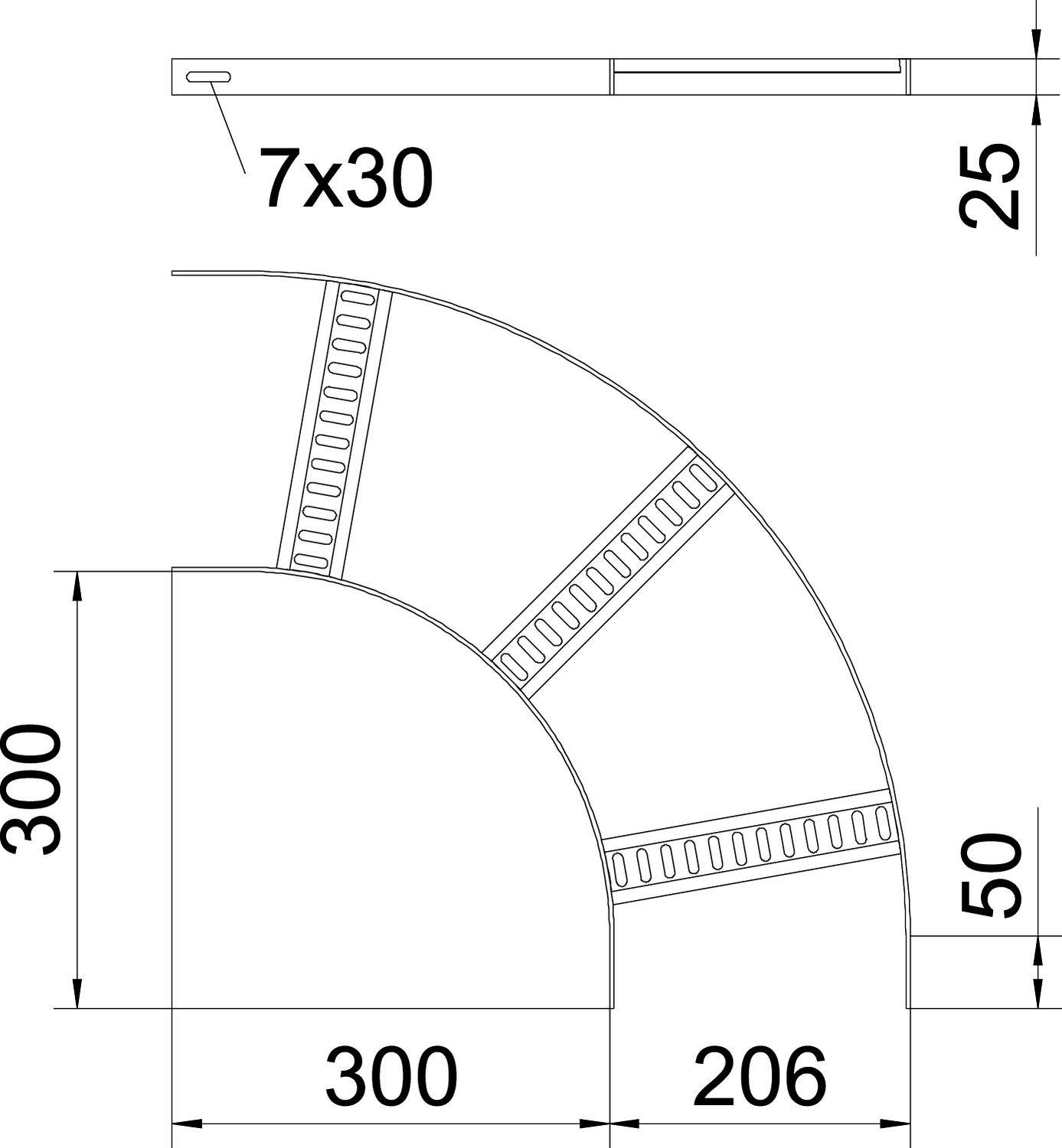

90° elbow for shipbuilding cable conductor type SL42 with the page height 25 mm, with wrapped, down open and perforated trapezoidal rungs.
