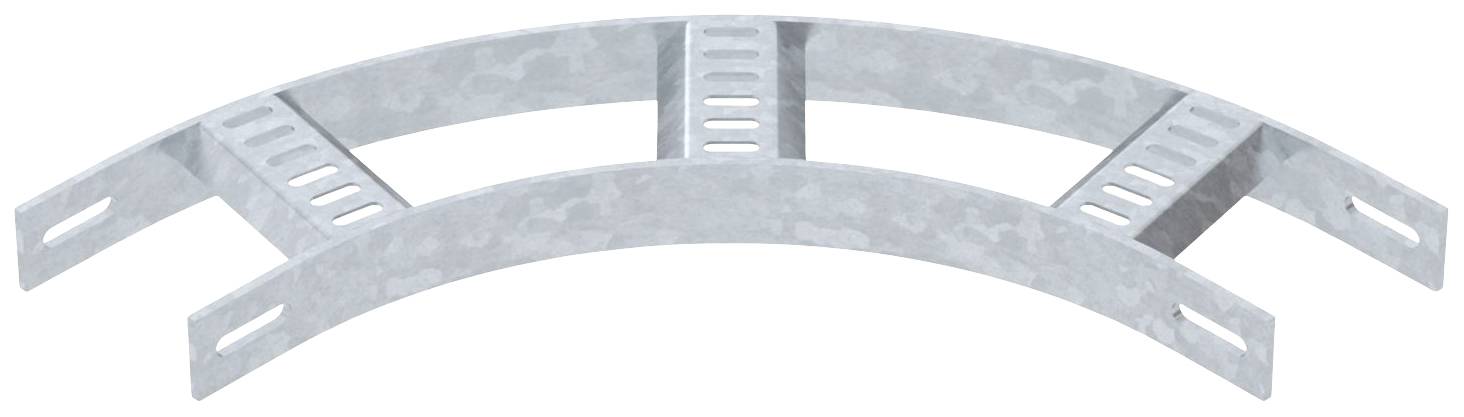

OBO Bettermann 7098855 Bend 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = horizontal
- Execution of the Seitenholms = Low Profile
- Side holes = No
- Design of the rung = profile punched

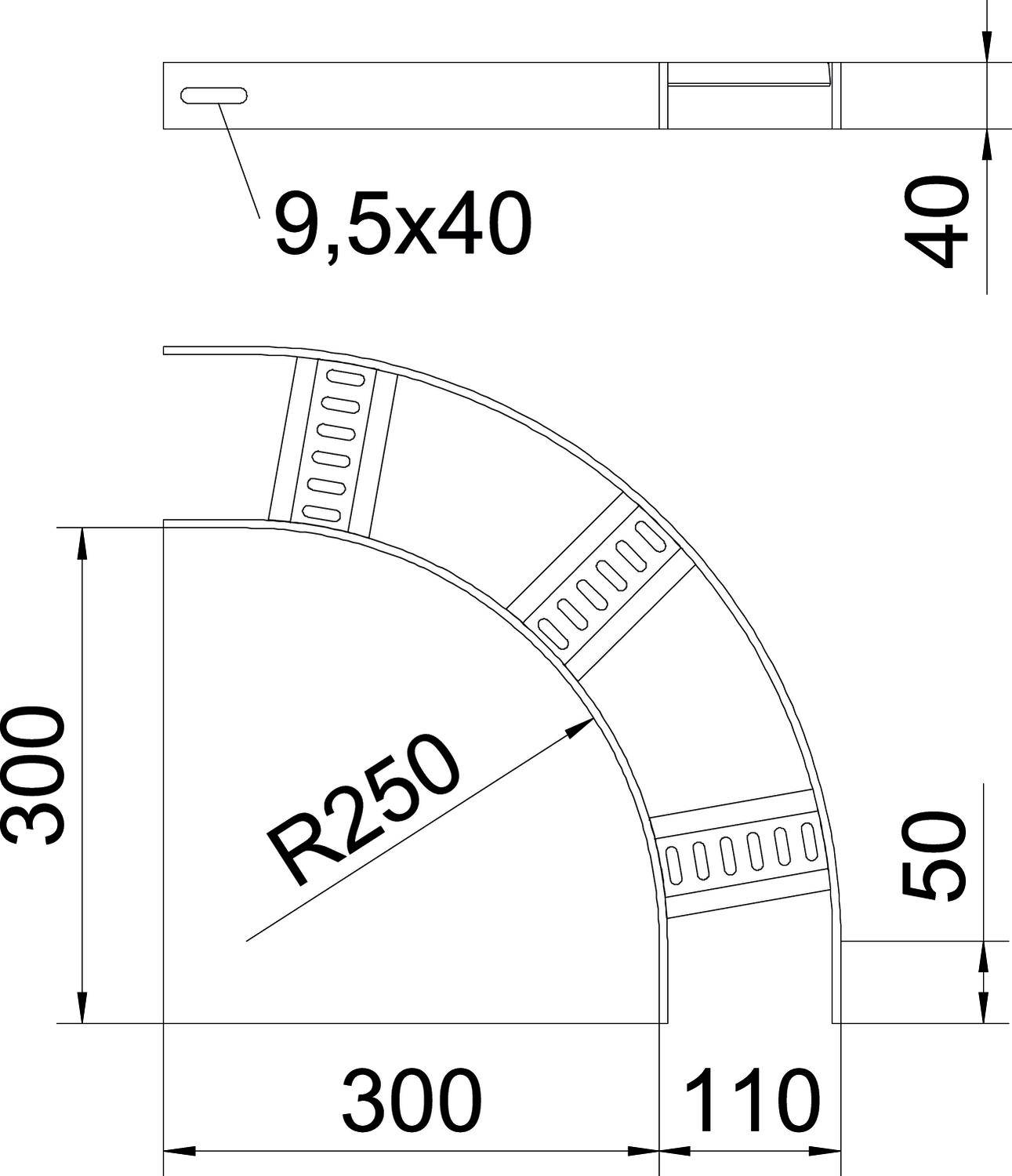

- Turn (angle) = 90°
- Cable height = 40 mm
- Cable conductor width = 100 mm
- Inner radius = 250 mm
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Surface = diving hot-dip galvanised
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 100 mm x 40 mm
- Width
100 mm
- Height
40 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958328 OBO Bettermann 7098855 Bend 1 pc(s) Metal
Description
Bow 90° horizontal for shipbuilding cable conductors type SL 62.
