OBO Bettermann 7098936 Bend 1 pc(s)

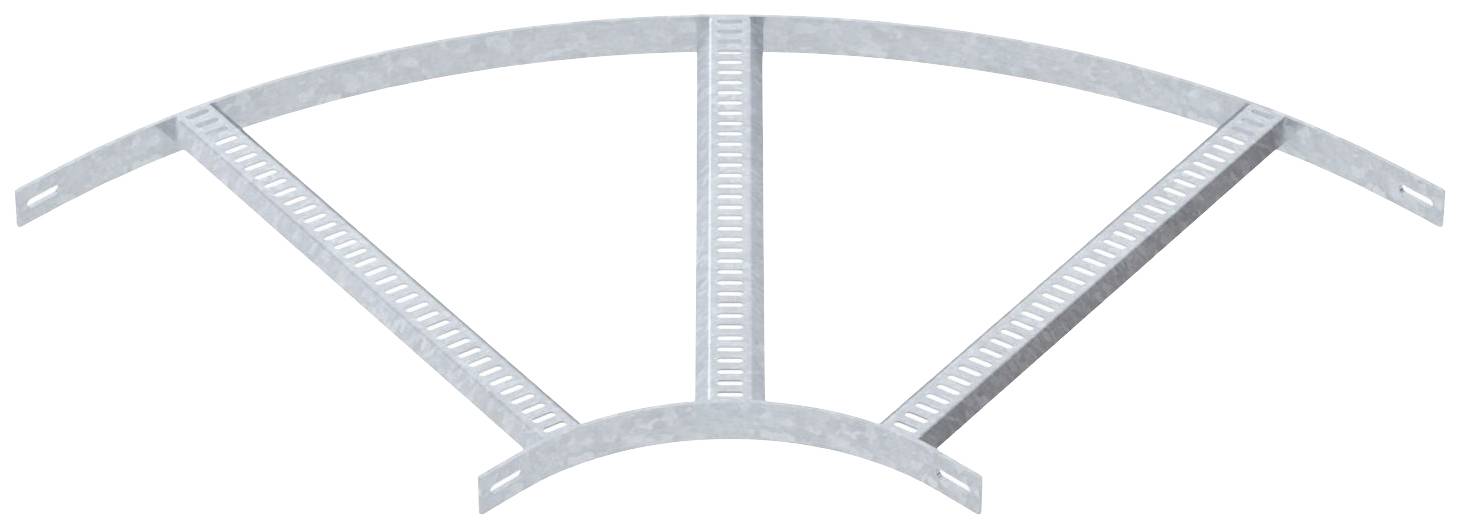

Metal cable trunking bend at a 90-degree angle with multiple cross-braces for cable installation.

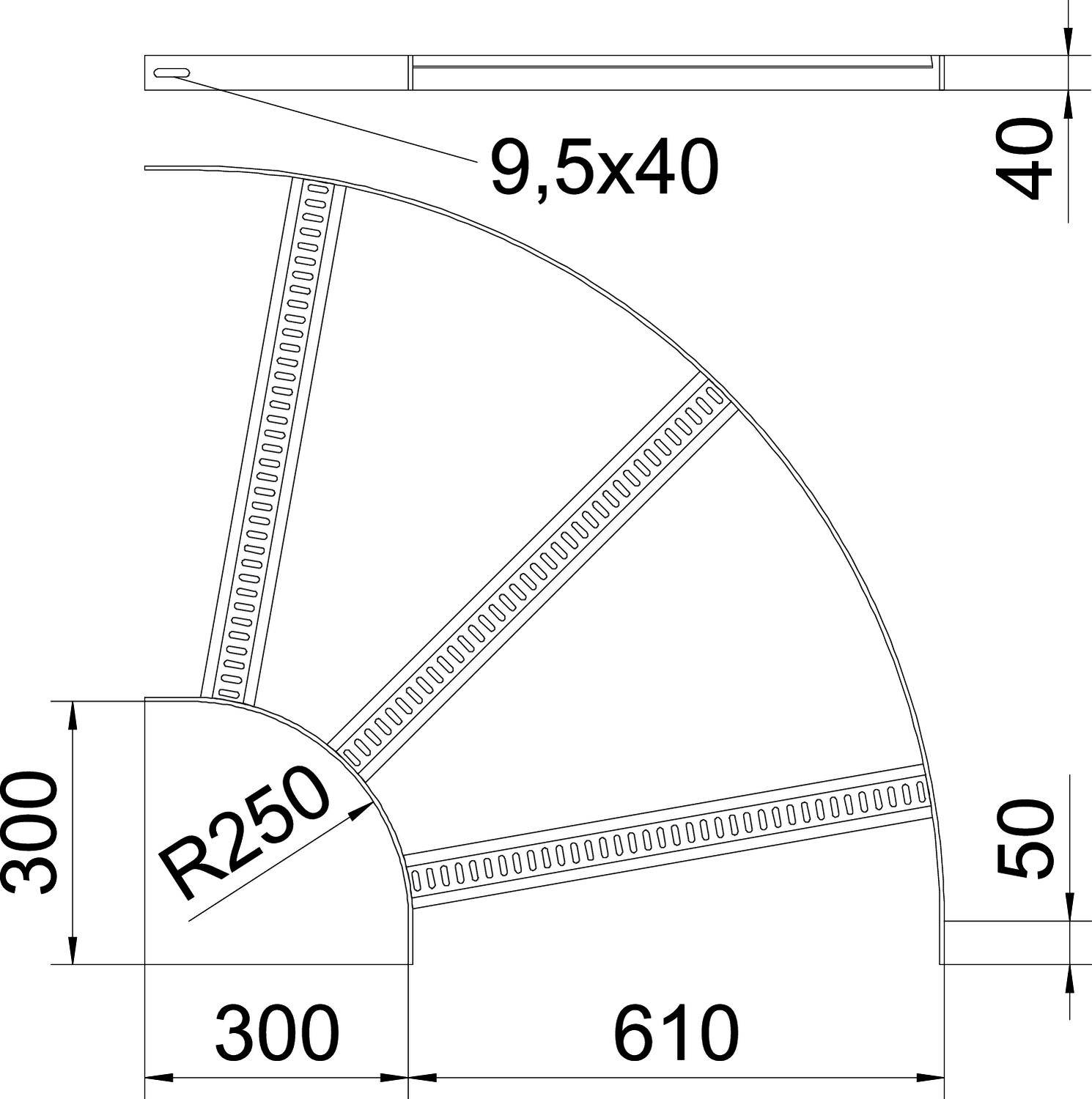

Technical Drawing of a Curved Shelf with Dimensions: Radius 250 cm, Height 300 cm, Width 300 cm, Depth 610 cm, Struts Illustrated.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Turn (angle): 90°
  • Inner radius 250 mm
  • Cable conductor width 600 mm
  • Cable conductor height 40 mm
  • Surface: Hot dip galvanized
  • Direction change: Horizontal
  • Side holes: no.
  • Wide-span design: no.
  • Material: Steel
Product type

Bend

Type

Design of the rung: Profile punched
Side bar design: Flat profile

Content

1 pc(s)

Dim

(W x H) 600 mm x 40 mm

Width

600 mm

Height

40 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2294675 OBO Bettermann 7098936 Bend 1 pc(s)

Description

Elbow 90° horizontal for ship building cable conductors type SL 62.
