OBO Bettermann 7099251 Bend 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
OBO Bettermann Vertr Arc 90° with Z-rung SLZB L 90 600 A2
Our service for you

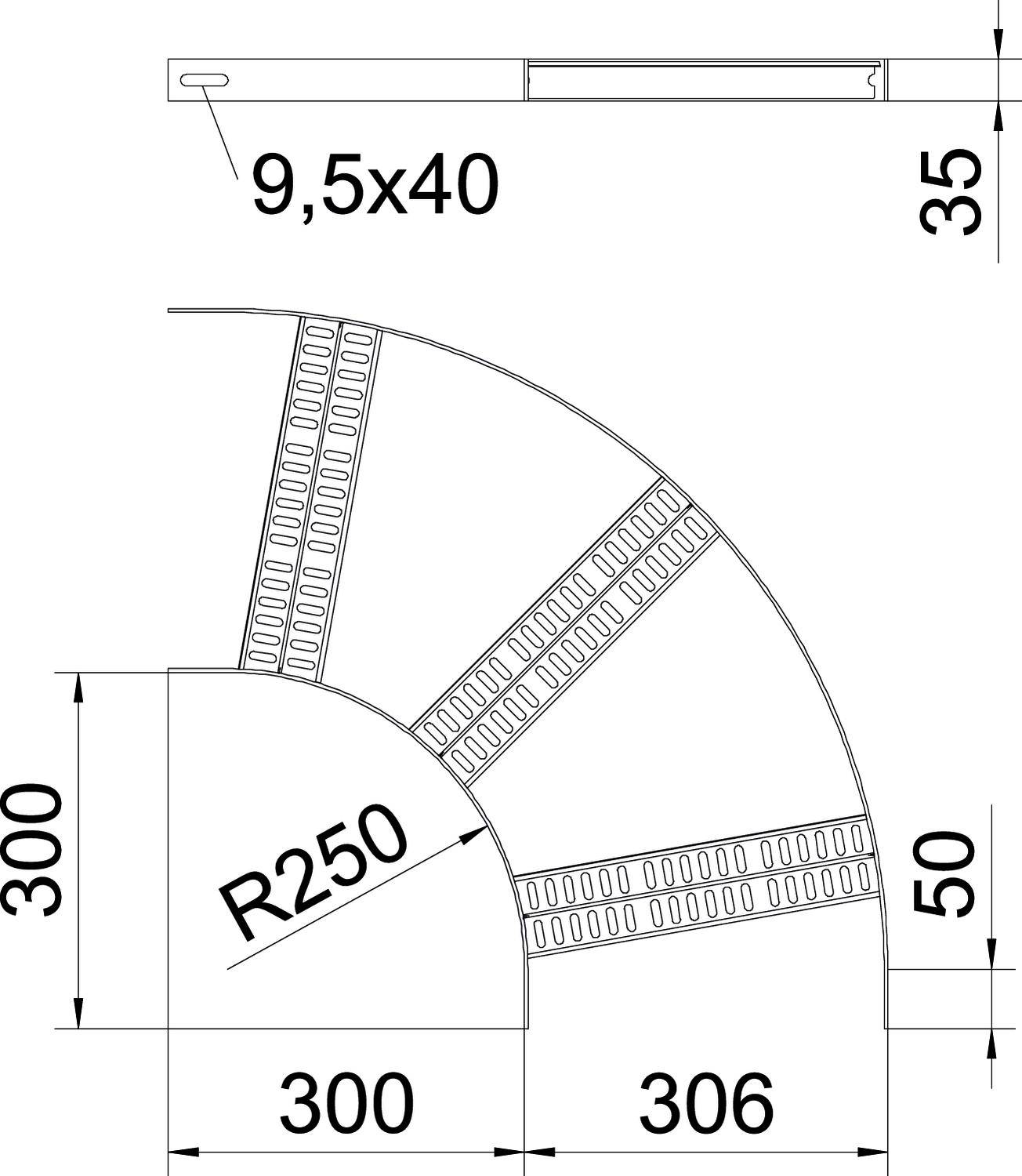

Technical specifications
- Turn (angle): 90°
- Inner radius 250 mm
- Cable conductor width 600 mm
- Cable conductor height 35 mm
- Direction change: Horizontal
- Side holes: no.
- Wide-span design: no.
- Material: Stainless steel
- Product type
Bend
- Type
Design of the rung: Profile punched
Side bar design: Flat profile
- Content
1 pc(s)
- Dim
(W x H) 600 mm x 35 mm
- Width
600 mm
- Height
35 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296631 OBO Bettermann 7099251 Bend 1 pc(s)
Description

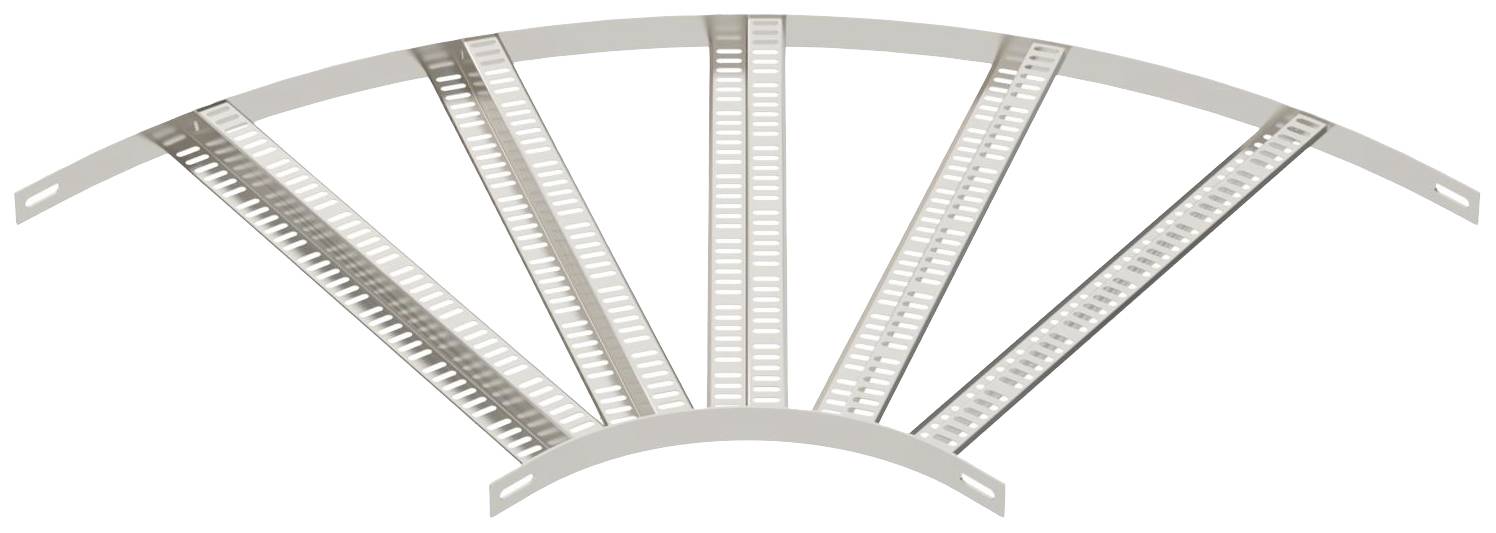

90° bow for shipbuilding cable ladder type SLZ L with a side height of 35 mm, with welded, perforated Z-rungs.
