OBO Bettermann 7099754 Cable ducting (L x W x H) 3 m x 200.00 mm x 40.00 mm 3 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 40 mm
- Width 200 mm
- Length: 3000 mm
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Aluminium
- Material quality EN AW-5754 (AlMg3)
- Surface protection: Stained and passivated
- Colour: grey
- Weighs 1.11 kg/m.
- Product type
Cable ducting
- Content
3 m
- Factory colour
Grey
- Dim
(L x W x H) 3 m x 200.00 mm x 40.00 mm
- Length
3 m
- Width
200.00 mm
- Height
40.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406601 OBO Bettermann 7099754 Cable ducting (L x W x H) 3 m x 200.00 mm x 40.00 mm 3 m Grey
Description

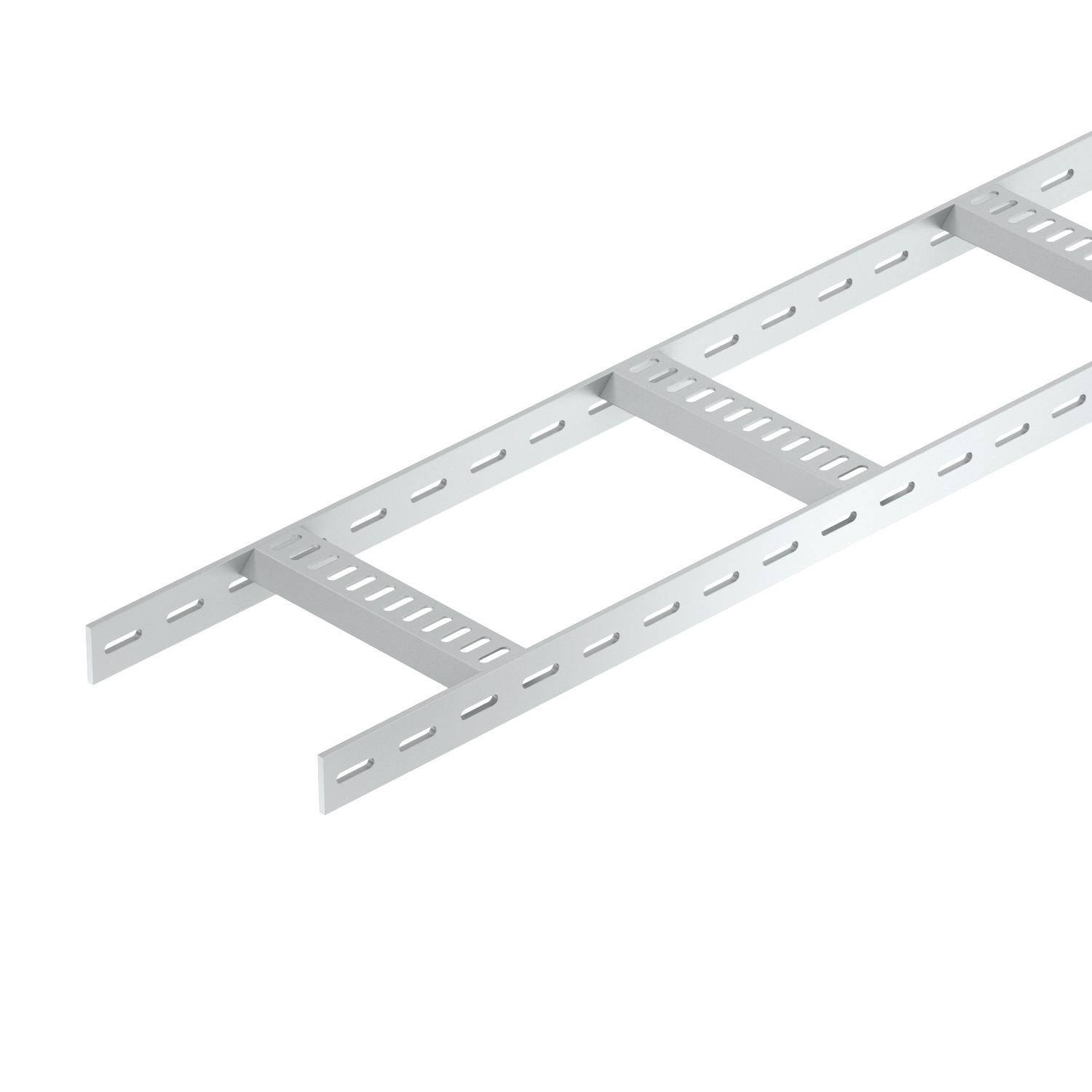

Ship building cable ladder with perforated side spar in the side height 40 mm with welded, open downward and perforated trapezoid rungs.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
