OBO Bettermann 7099774 Cable ducting (L x W x H) 3 m x 200.00 mm x 40.00 mm 3 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 40 mm
- Width 200 mm
- Length: 3000 mm
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Aluminium
- Material quality EN AW-5754 (AlMg3)
- Surface protection: Stained and passivated
- Colour: grey
- Weighs 1.25 kg/m.
- Product type
Cable ducting
- Content
3 m
- Factory colour
Grey
- Dim
(L x W x H) 3 m x 200.00 mm x 40.00 mm
- Length
3 m
- Width
200.00 mm
- Height
40.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406770 OBO Bettermann 7099774 Cable ducting (L x W x H) 3 m x 200.00 mm x 40.00 mm 3 m Grey
Description

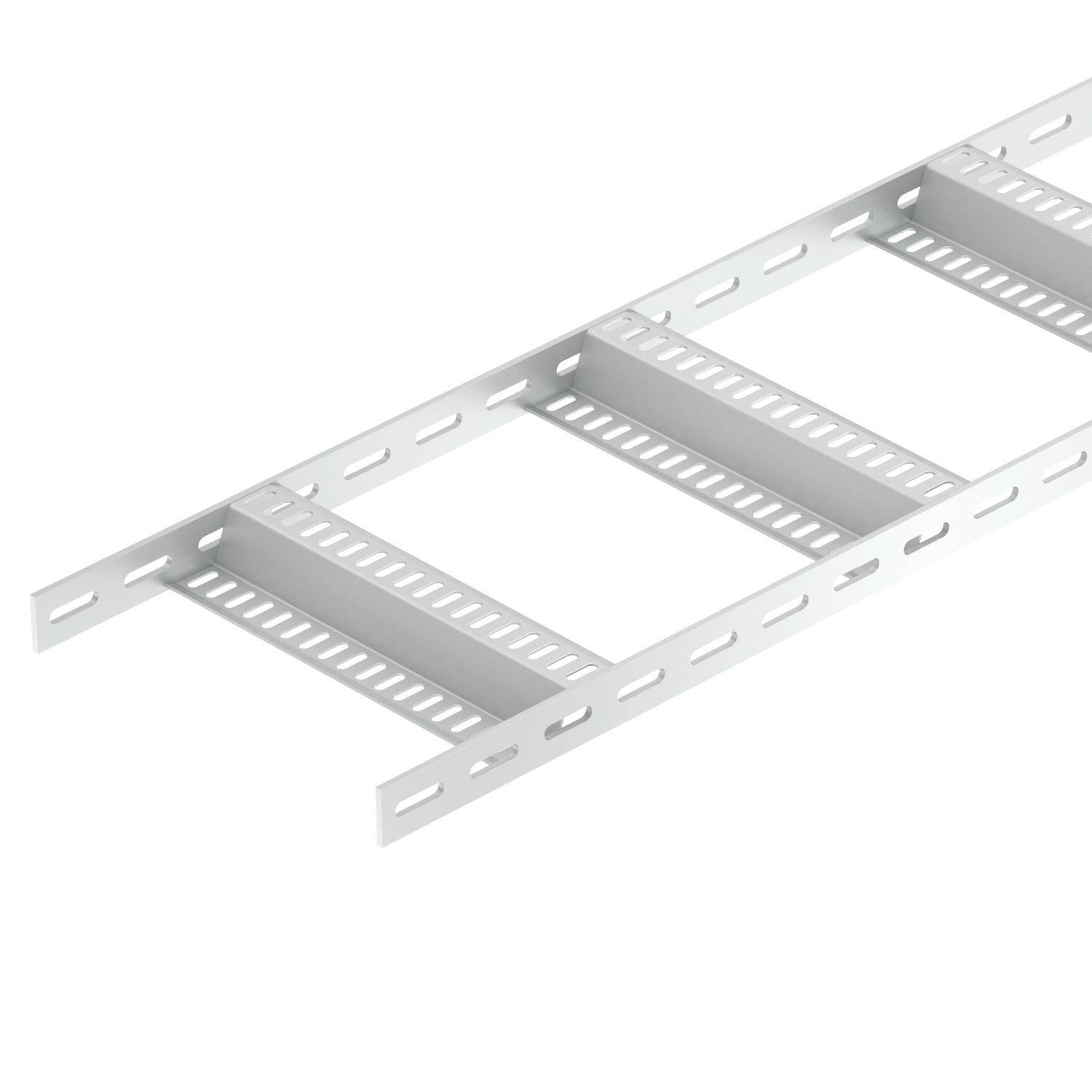

Ship building cable ladder with perforated side spar in the side height 40 mm with welded, perforated Z-sections.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
