OBO Bettermann 7123116 Junction piece 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications

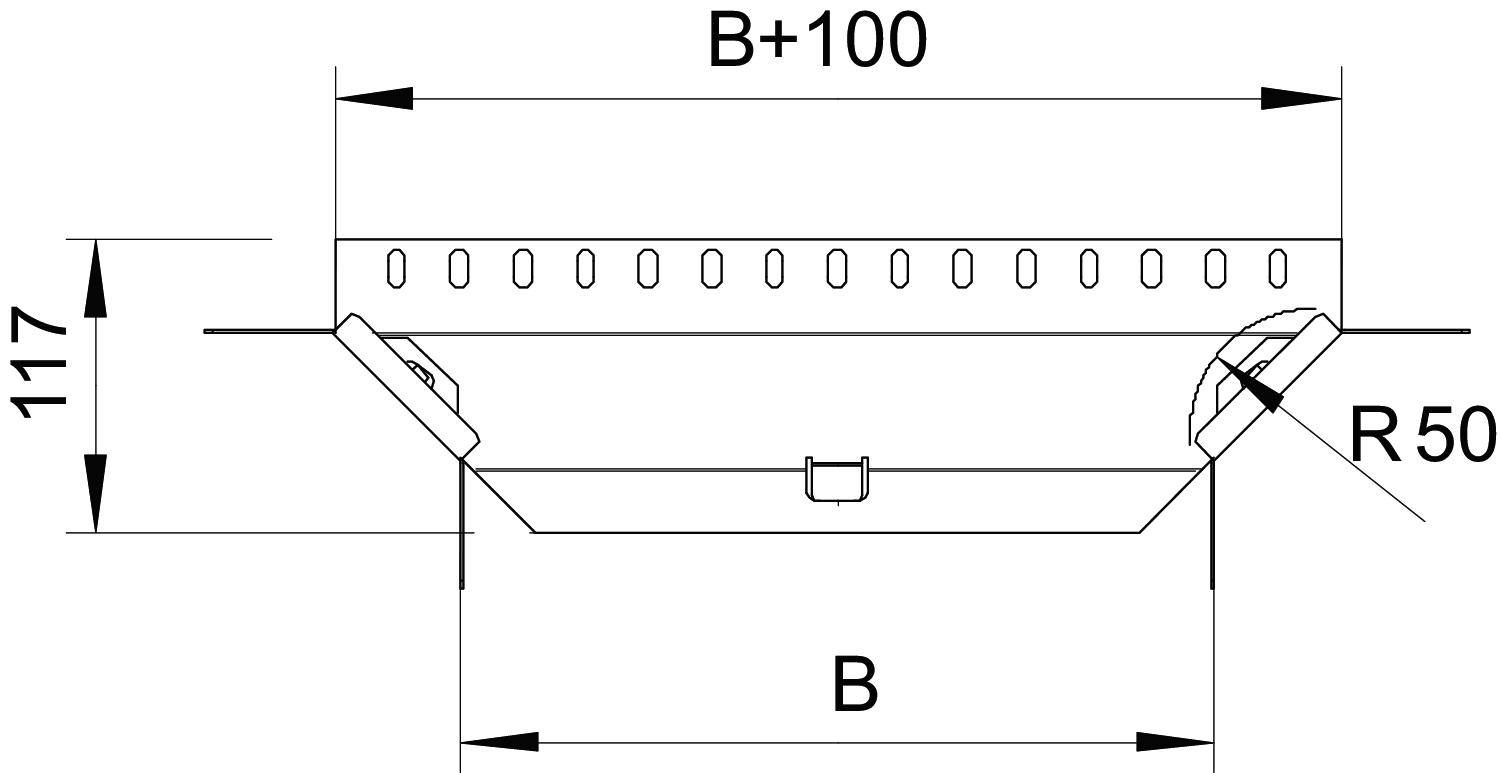

- Cable channels height = 110 mm
- Cable channels outlet width = 100 mm
- Inner radius = 50 mm
- NATO-Hole Pattern = No
- Design = the supplied connector
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = diving hot-dip galvanised
- Product type
Junction piece
- Component
Stub connector
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H) 100 mm x 110 mm
- Width
100 mm
- Height
110 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966341 OBO Bettermann 7123116 Junction piece 1 pc(s) Metal
Description

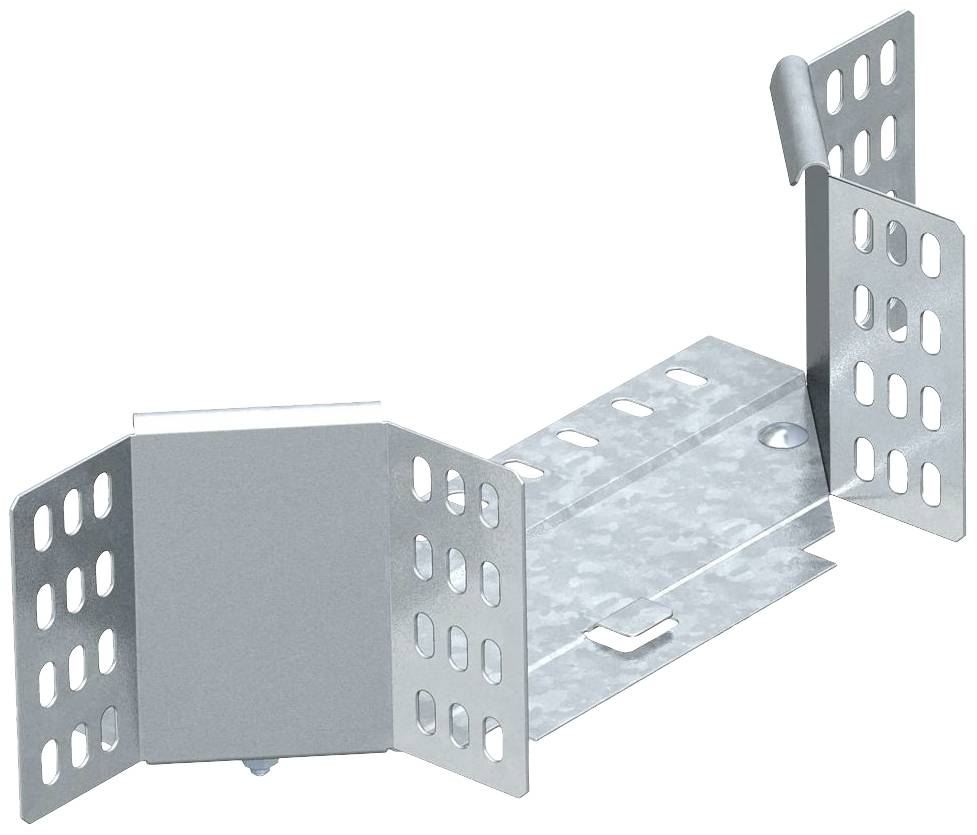

Add Branch piece for horizontal and vertical branches from all types of cable channels with the page height 110 mm. Floor plate with keel butt bar. No separate connector cable channel is necessary, because one side in the spar of the molded part inserted from the elbow connector type WKV screwed.
