OBO Bettermann 7204296 Fire protection 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design: Finished part bulkhead
- Shape: Round
- Plate thickness/product length 300 mm
- Accessories required: No.
- Product type
Fire protection
- Type
Finished parts bulkhead
- Supplied length
300 mm
- Content
1 pc(s)
- Length
0.3 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162408 OBO Bettermann 7204296 Fire protection 1 pc(s)
Description

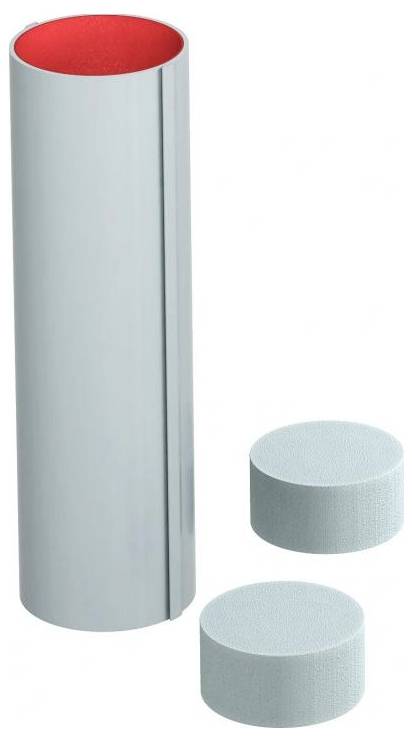

Inner-coated tubular shells with click lock. Interior fully accessible with cables and electrical installation pipes. For indoor use. CE-labeled, European approved construction product according to ETA-13/0904 and German general design approval. Fire resistance up to 120 minutes.
Closure with 2 supplied foam plugs. The surface sealing is done with the coating compound PYROCOAT® ASX.
In some applications, the use of metallic clamping belts for securing the pipe shells in light partitions is mandatory. Details can be found in the assembly instructions/approval.
